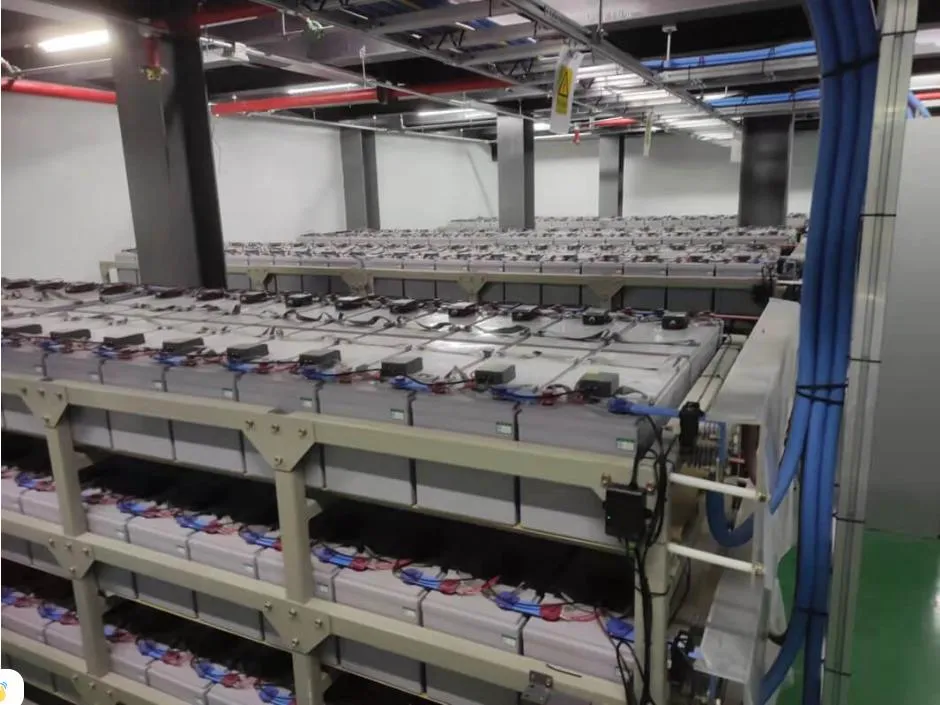

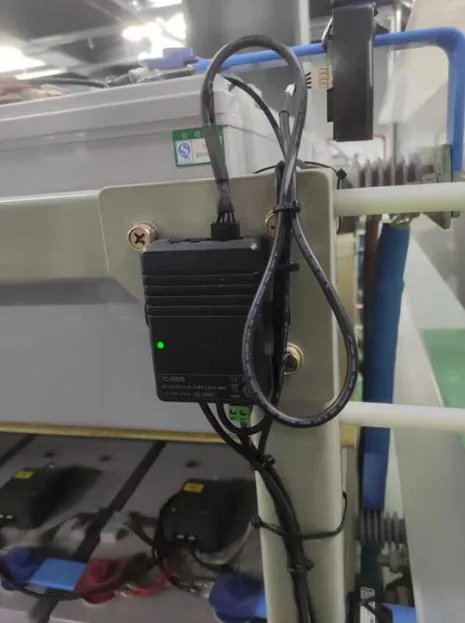

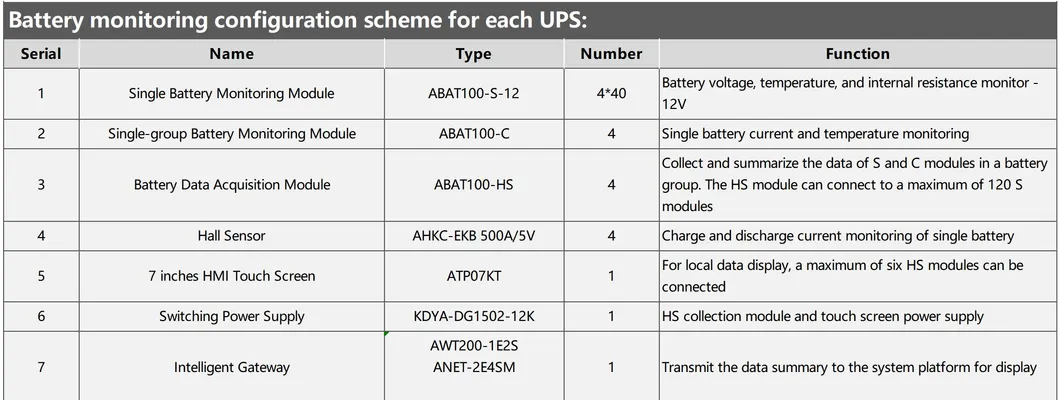

Model

Function Description

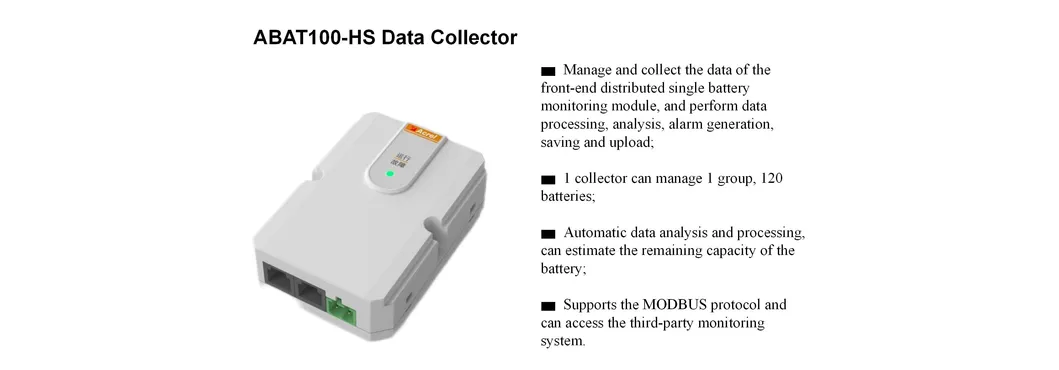

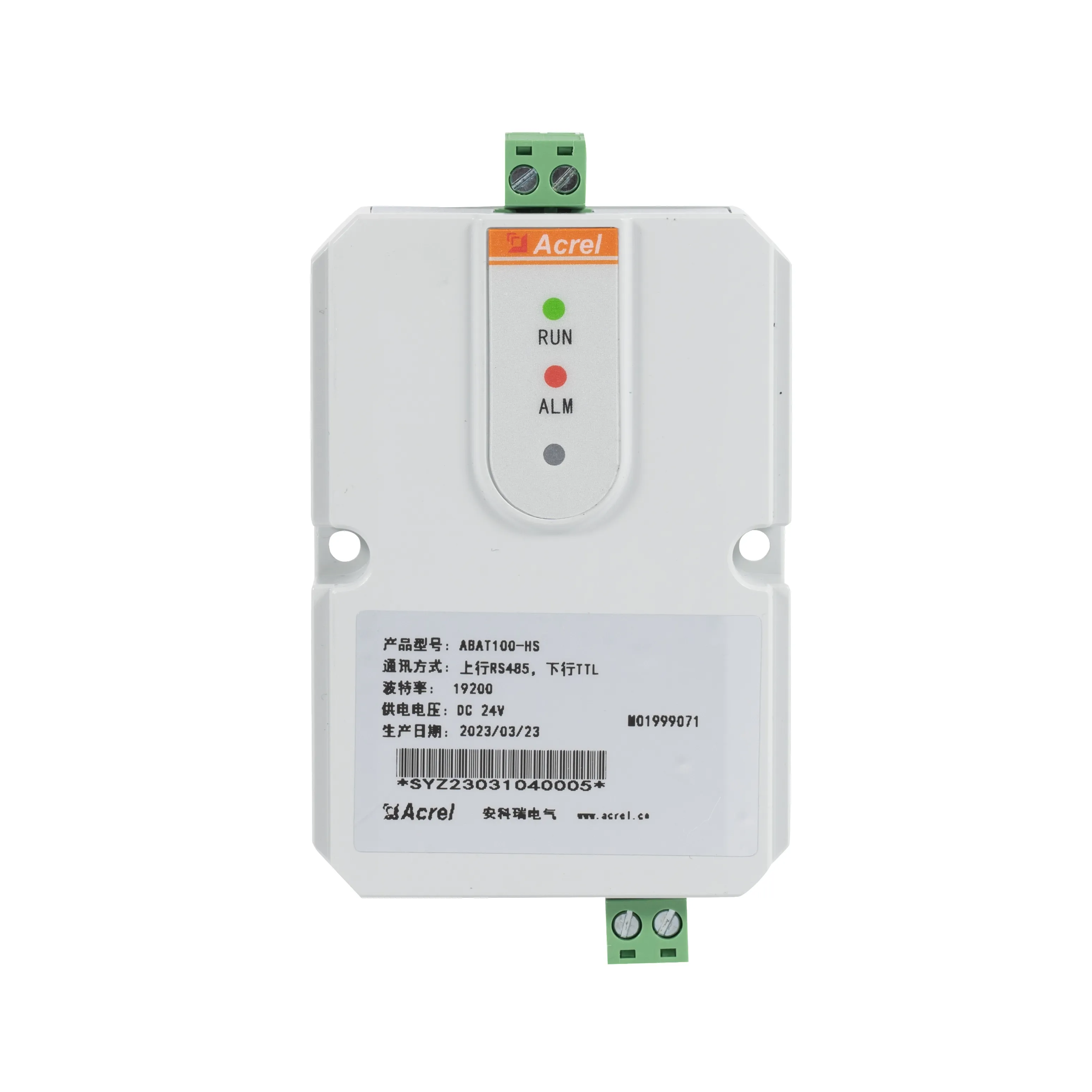

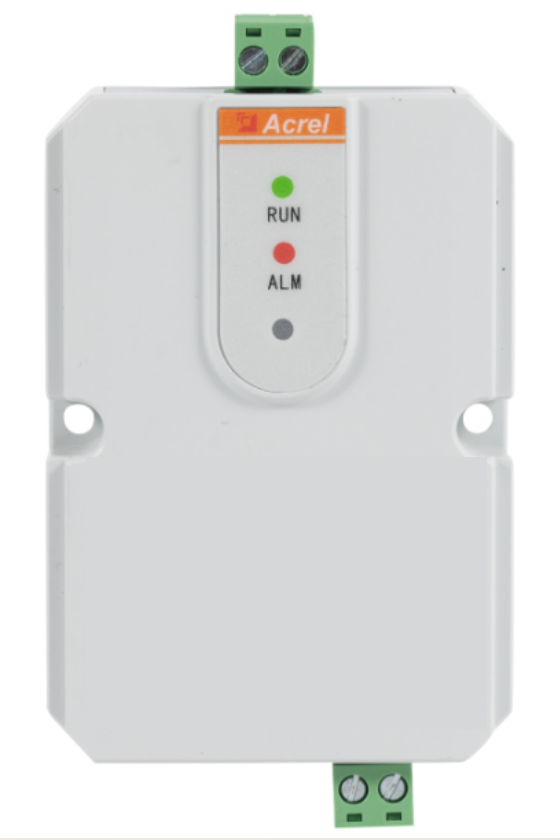

ABAT100-HS

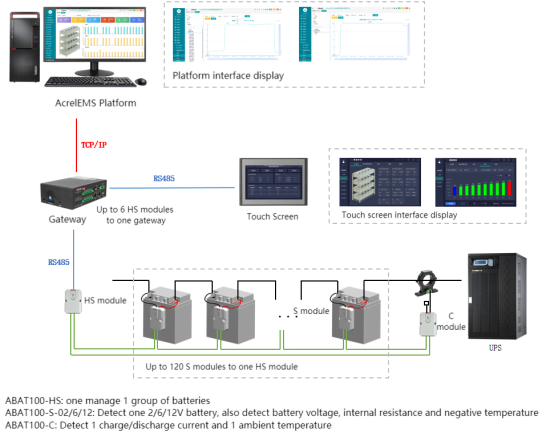

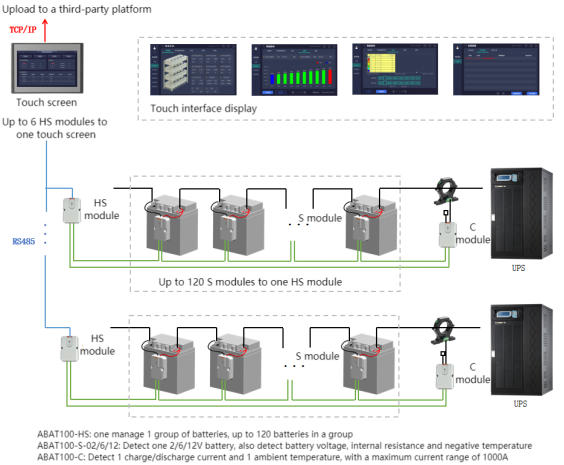

DC24V input, one to manage a group of batteries, up to 120 batteries in a group.

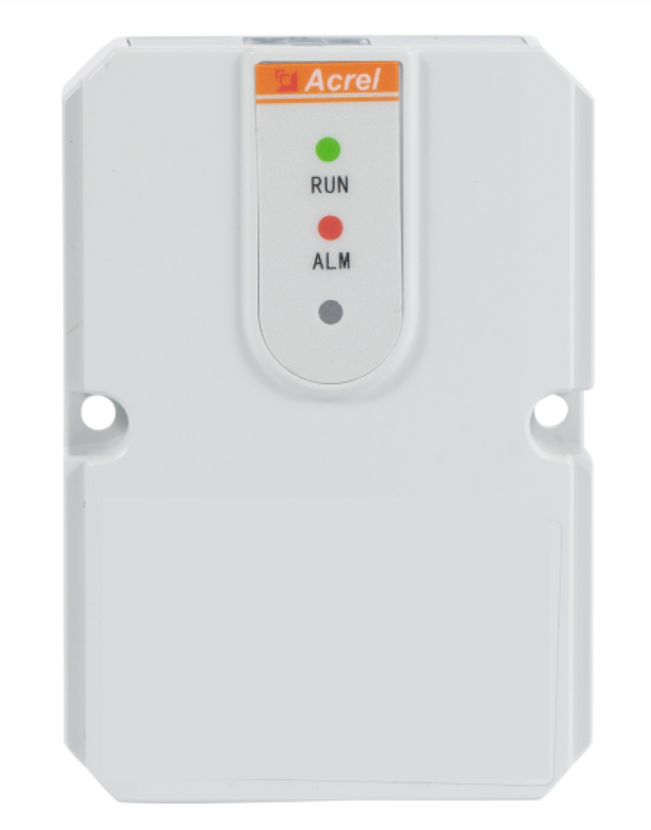

ABAT100-S-02

Monitor one 2V battery, monitor battery voltage,
internal resistance and negative terminal temperature.

ABAT100-S-06

Monitor one 6V battery, monitor battery voltage,
internal resistance and negative terminal temperature.

ABAT100-S-12

Monitor one 12V battery, monitoring battery voltage,
internal resistance and negative terminal temperature.

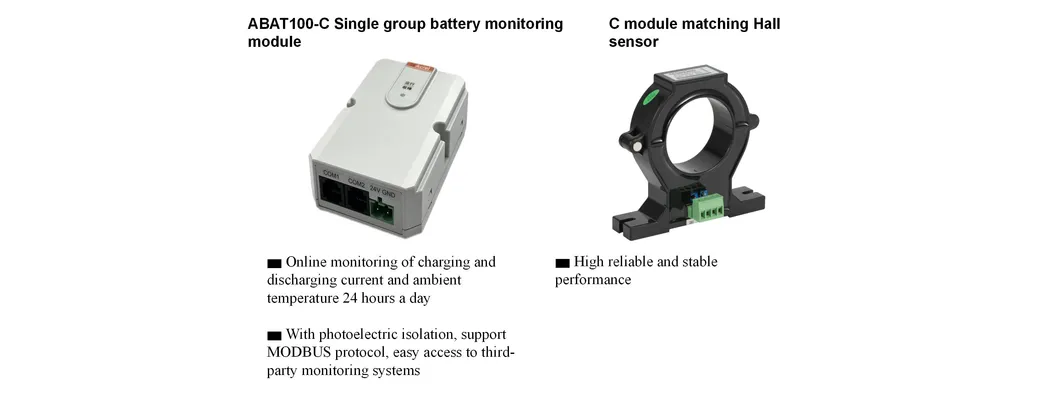

ABAT100-C

Monitor one charge/discharge current with
an ambient temperature with a maximum current range of 1000A.

Function

Description

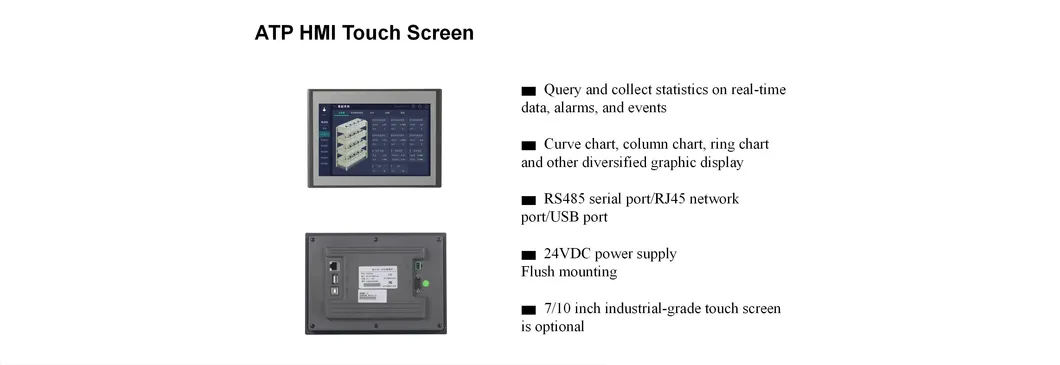

Display

Real-time data display, graphs, histogram display

Historical Data

Query and export of equipment operation history,
charging and discharging records and monitoring events

Parameter Configuration

Provide basic information management functions

Communication protocol

MODBUS-RTU

Alarm mode

Local audible and visual alarm,
indicator alarm, SMS alarm, etc.

Capacity estimation

Group batteries SOC, SOH estimation;
single battery SOC, SOH estimation

Regular inspection

Intelligent judgment of the current state
and automatic issuance of test commands

Indicator light

Red and green LED lights, green light as
the power light, red light as the indicator light

Function

Description

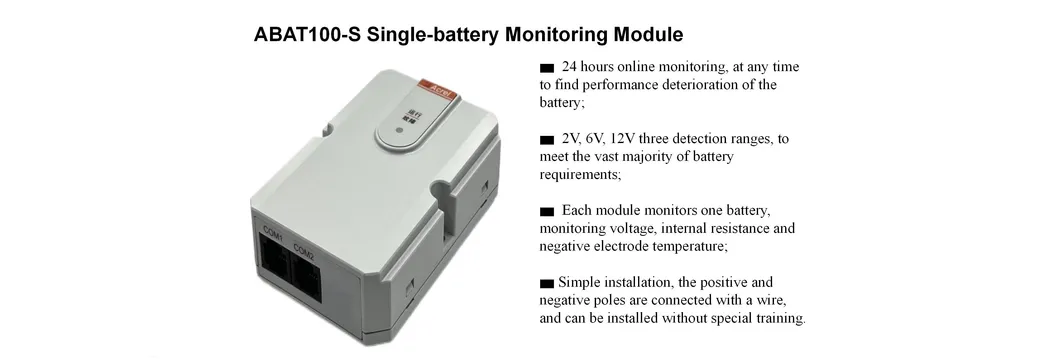

Online monitoring

Online monitoring 24 hours a day,
one battery per module, monitoring voltage,
internal resistance and negative terminal temperature

High accuracy measurement

Internal resistance measurement error as low as 1%

Battery internal resistance test

Automatic periodic measurement of the internal resistance
of each battery controlled by the collector

Low power design

Manual entry into low power mode,
S-module draws current from the battery down to 0.5mA

Anti-jamming design

High anti-interference design,
can block the ripple interference of high power high frequency UPS

Communication protocol

MODBUS-RTU protocol

Installation method

Tie-down mounting or adhesive mounting

Indicator light

Red and green LED lights, green light as the power light,
red light as the indicator light

Function

Description

High stability

Reliable and stable long-term operation

Anti-jamming design

High anti-interference design,
can block the ripple interference of high power high frequency UPS

Communication protocol

MODBUS-RTU Protocol

Installation method

Tie-down mounting or adhesive mounting

Indicator light

Red and green LED lights, green light as the power light,
red light as the indicator light.

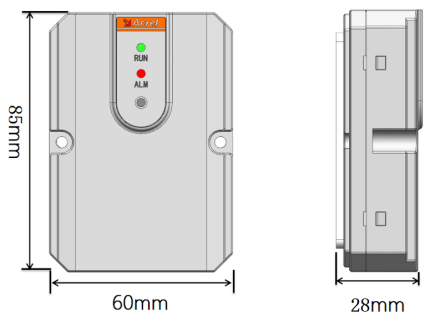

Technical parameters

Description

Working Environment

Operating temperature: -10℃～50℃
Relative humidity: 5%~95%
Atmospheric pressure intensity: 80~110kPa

Management Capability

One collector can monitor a maximum of total 120 batteries

Alarm Type

Group voltage overcharge/discharge, single voltage overcharge/discharge,
current overcharge/discharge, high internal resistance of
single unit, abnormal communication, etc.

Power Supply

DC24V

Protection

With overvoltage and short circuit protection

Communication Interface

With RS485 communication port, support MODBUS/RTU

Insulation withstand voltage

2000VAC

Installation method

Tie-down mounting or adhesive mounting

Weight

90g

Technical parameters

Description

Working Environment

Operating temperature: -10℃～50℃
Relative humidity: 5%~95%
Atmospheric pressure intensity: 80~110kPa

Monitoring Capability

One S-module monitors one battery

Monitoring Scope

2V, 6V, 12V battery with capacity less than 3000AH

Measurement range and accuracy

Measurement content

Scope

Accuracy

Single Voltage

2V, 6V, 12V

±0.1%

Single internal resistance

50～65535uΩ

(Resolution) 1uΩ

Negative temperature

-5℃～+105℃

±1°C

Power requirements

Directly from the monitored battery,
2V module normal operation of the absorption current of 10mA,
the maximum is not more than 13mA, 6V, 12V
module normal operation of the absorption current of 5mA,
the maximum is not more than 7mA, different modules
absorption current consistency is very high

Protection

Measuring circuit and power circuit with two levels of protection,
with reverse connection protection and opto-isolation

Communication Interface

UART port, support MODBUS protocol

Insulation withstand voltage

2000VAC

Weight

90g

Technical parameters

Description

Working Environment

Operating temperature: -10℃～50℃
Relative humidity: 5%~95%
Atmospheric pressure intensity: 80~110kPa

Monitoring Capability

One C-module monitors the charge and discharge current of
a group of batteries against the ambient temperature

Monitoring Scope

2V, 6V, 12V battery pack

Measurement range and accuracy

Measurement content

Scope

Accuracy

Charging and discharging current

0~1000A

±1%

Ambient temperature

-5℃～+105℃

±1°C

Power requirements

DC24V, 1W

Protection

Measurement circuit and power circuit with two levels of protection

Communication Interface

UART port, support MODBUS protocol

Insulation withstand voltage

2000VAC

Weight

90g

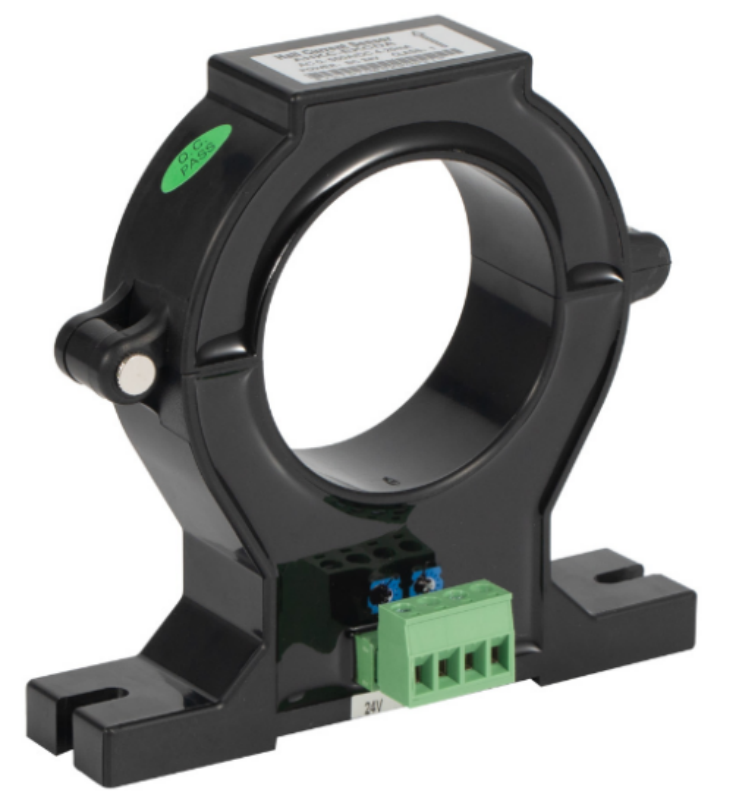

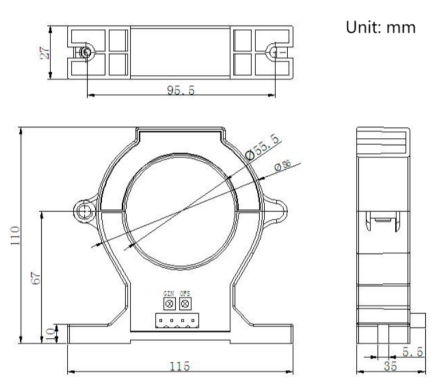

Parameters

Indicators

Rated input current

0~(500-1500)A

Rated output voltage

±5V

Accuracy class

1.0

Supply voltage

DC±15V (Allowed fluctuation ±20%)

Zero point out-of-tune voltage

±20mV

Out-of-tune voltage drift

≤±2.0mV/°C

Linearity

≤0.2%FS

Response time

≤5us

Bandwidth

0~20kHz

Insulation voltage

2.5kV/50Hz/1min

Operating temperature

-40℃~85℃

Storage temperature

-40℃~85℃

Power consumption

≤0.5W
