Acrel AMC16Z-FAK48 AC Multi-Chanel Outlet Monitoring module
- Rated Voltage: 220VAC
- Rated Current: 50mA
- Communication: RS485 (MODBUS-RTU)
- Accuracy: Class 0.2(U/I) Class 0.5(P/EP) Class (Q/EQ)
- Auxiliary power supply: Power supply by AMC16Z-ZA
- Installation: DIN35mm
- Standard&Certificate: CE; IEC; LVD;ROHS
General
AMC16Z series multi-loop acquisition module is independently designed to meet the needs of the increasingly high precision power distribution management requirements of the data center. It suitable for various all-round intelligent monitoring of terminal distribution equipment.
Function
- Monitor the full power parameters and switch state of 48 branches of A+B double-way AC outgoing line
-
Measurement Voltage, Current, Frequency, Active Power, Reactive Power, Power Factor and etc
-
2nd~63rd&Total Harmonic

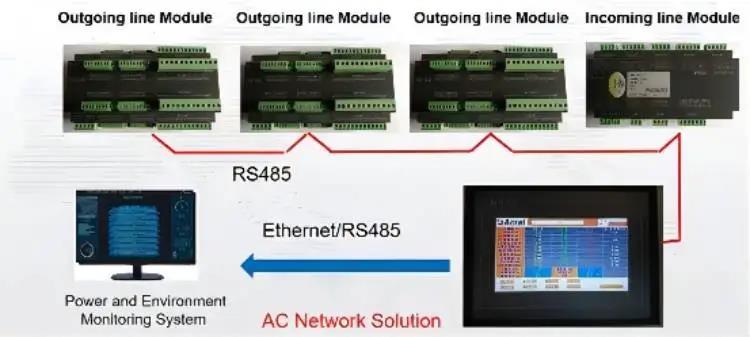

Network

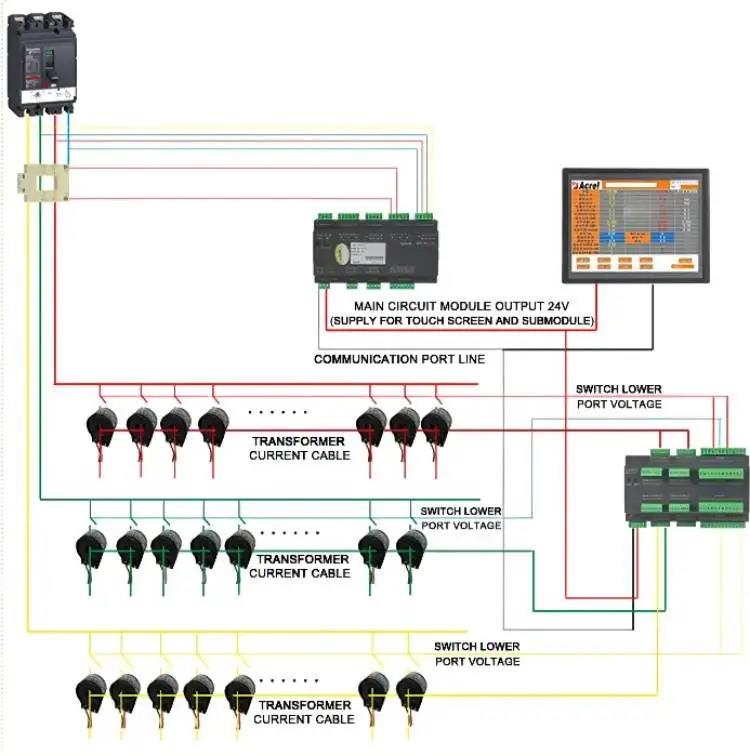

Wiring Diagram

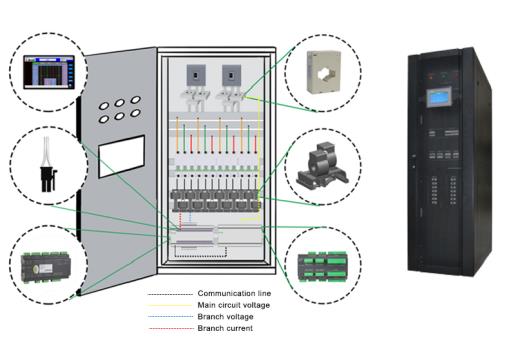

Cabinet Diagram
|
Instrument model |
AMC16Z-FAK48 |
|
|
Measurement parameters |
Voltage, current, frequency, active power, reactive power, power factor, active power, reactive power, switching state |
|
|
|
2-31 times harmonics |
|
|
Bus Voltage |
Rated |
220VAC |
|
|
Measurement |
±20% |
|
|
Overload |
Instantaneous voltage 2 times/second |
|
Current outgoing line loop |
Rated |
50mA |
|
|
Range |
0.125～60mA |
|
|
Overload |
Duration 1.2 times, instantaneous 10 times/second |
|
Input frequency |
45～60Hz |
|
|
Measurement accuracy |
Outgoing line |
Voltage/current/active power/active energy level 0.5, reactive power/reactive energy level 1 |
|
Auxiliary power supply |
Power supply by AMC16Z-ZA;DC 12-24V when used alone |
|
|
Environment |
Temperature |
Working:-15℃～55℃ Storage:-25℃～70℃ |
|
|
Humidity |
Relative humidity |
|
|
Altitude |
≤2500m |
|
Communication |
RS485/Modbus-RTU |
|
|
Installation method |
DIN35mm Guide rail or bottom plate mounting |
|
|
IP grade |
IP20 |
|
|
Class of pollution |
2 |
|
|
Safety |
Insulation |
All terminals and the insulation resistance between the conductive pieces not below 100 m Ω |
|
|
Withstand voltage |
A-channel voltage and current signal // B-channel voltage and current signal // other ports meet AC2kV 1min between pairs, leakage current should be less than 2mA, no breakdown or flash over phenomenon. |
|
Electromagnetic compatibility |
Anti static interference |
Level 4 |
|
|
Resistance to radiation of Radio frequency electromagnetic |
Level 3 |
-
CE
-
EMC
-
LVD
-
RoHs
-
AMC16Z-FAK48 Manual
