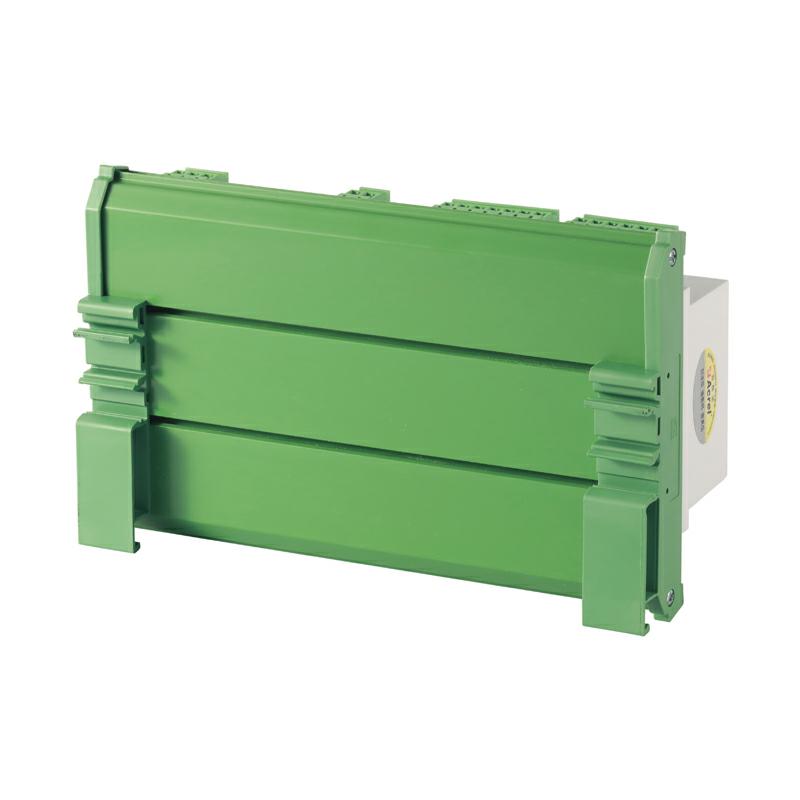

Acrel AMC16MA Data Center Multi-Channel Energy Meter
- Input voltage AC220V, input current AC 5A(self-setting transformer ratio)
- Outlet current transformer ratio AC100A/20mA
- 2 inlet testing and 36 single phase(or 12 3-phase) outlet testing,1 switching output
- Communication protocol: RS485 port Modbus/RTU protocol
- Power supply:AC220V
General
Acrel AMC16 series multi-circuit monitoring device is specially designed for the power management of center data server in data center. This device is small and exquisite, which can monitor electric parameters and switching state from as many as dozens of circuits besides input circuit and output circuit in a centralized way. It realizes high centralization of monitoring circuits in the dimension of traditional meter.
Function
- Measuring incoming main line 3 phase voltage
- Incoming line: 2 channel 3 phase I,Kw,Kvar,cosφ,Kwh(current, active power, reactive power, power factor, active energy, reactive energy)
- Outgoing line: 36 channel single phase (12 channel 3phase)I,Kw,Kvar,cosφ,Kwh,Kvarh(need to allocate AHK-0.66W 100A/20mA CTs
- Inbuilt communication:1 channel RS485
- 1 DO, aux. power supply:AC 220V

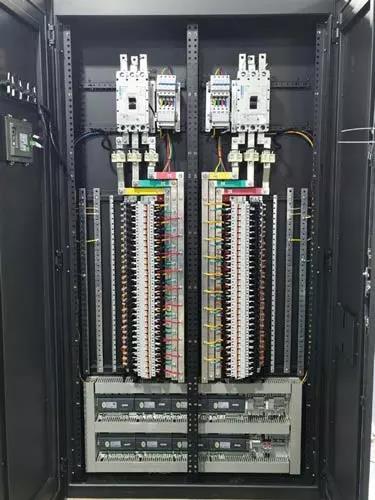

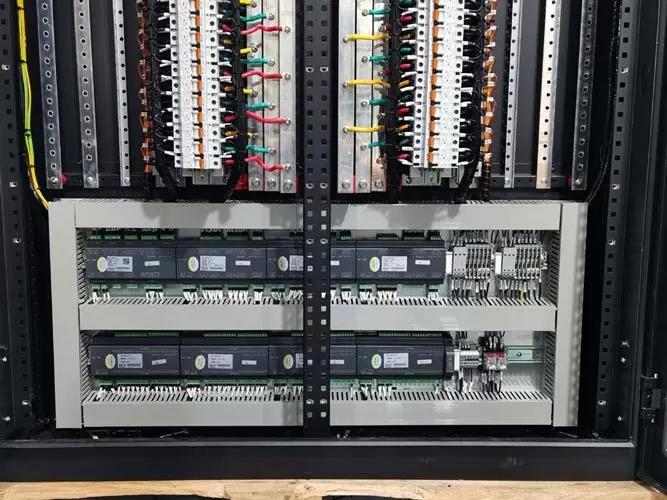

Site installation
|
Bus voltage |
Rated input voltage |
AC220V |
|
Measurement range |
AC 40~400V |
|
|
Overload |
instantaneous voltage twice/30 seconds |
|
|
Current circuits |
rated input current |
inlet:5A outlet:20mA |
|
measurement range |
inlet:5-10000A outlet:0.25-125A |
|
|
Overload |
sustained voltage1.2times,instantaneous current 10times/5 seconds |
|
|
Frequency |
45-60HZ |
|
|
Auxiliary power |
AC80-270V or DC100V-350V/DC48V±20% |
|
|
accuracy |
current,voltage class: 0.5 power,energy: 1 |
|
|
Relay output |
5A/250VAC or 5A/30VDC |
|
|
Communication |
RS485-MOBUS-RTU protocol |
|
|
Installation |
Din rail 35mm |
|
-
CE
