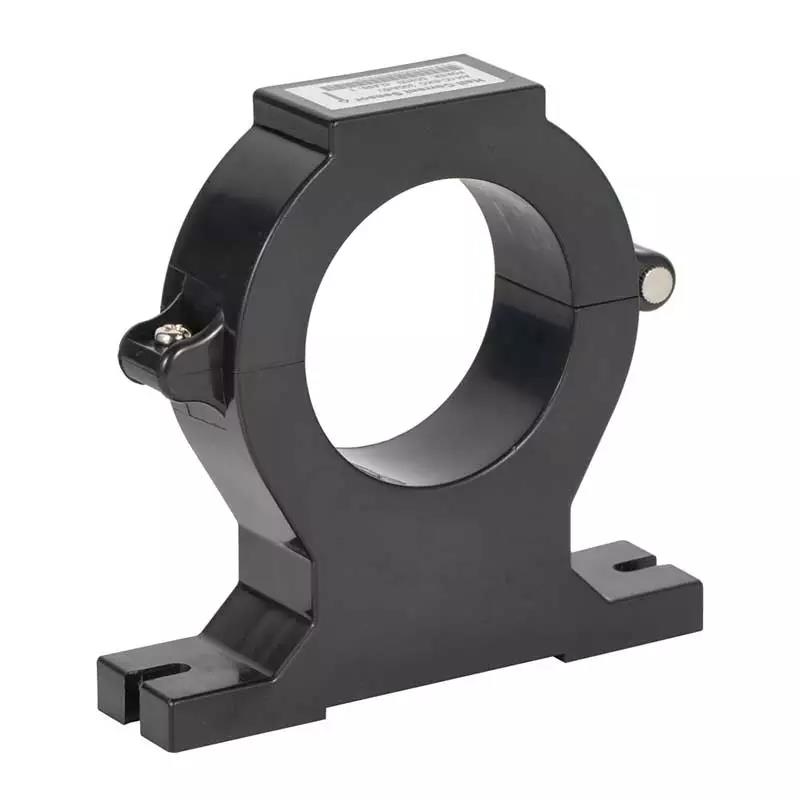

Acrel AC/DC 0-1500A Open-loop Hall Effect Transducer AHKC-EKC
- Rated Input: 0~±1500A DC or 0~1500A AC
- Rated Output: 0~±5/±4Vdc
- Aperture: φ55mm
- Power Supply: ±12~±15Vdc
- Accuracy: Class 1.0
- Response Time: ≤5us
- Installation: Clamp on (Split-core) measuring cable and screw fixed on panel
- Standard&Certificate: CE; IEC; LVD
Feature
Dimension(unit:mm)
Wiring Digram
Clamp-on (Split-core) Installation on Measuring DC Cable
Wiring of Auxiliary Power Supply Input&Transduced Signal Output
Main Parameters
|
Parameter |
Description&Value |
|
Rated Input |
0～±(50-1500)A DC or 0~(50~1500)A AC |
|
Rated Output |
±5Vdc/±4Vdc |
|
Accuracy |
Class 1.0 |
|
Power Supply |
±15Vdc (allow ±20% fluctuation%) |
|
Consumption |
≤0.5W |
|
Zero Offset Voltage |
±20mV |
|
Offset Voltage Drift |
≤±1.0mV/℃ |
|
Linearity |
≤0.2%FS |
|
Response Time |
≤5us |
|
Bandwidth |
0~20kHz |
|
Isolation Voltage |
3.5kV/50Hz/1min |
Environment
|
Condition |
Description&Value |
|
Temperature |
Operating Temperature: -40℃～+85℃; Storage Temperature: -40°C ~+85°C |
|
Humidity |
≤95%RH,no condensation,without corrosive gas |
|
Altitude |
≤ 2000m |
-
CE of AHKC-EKC
-
IEC of AHKC-EKC
-
LVD of AHKC-EKC
-
AHKC-EKC Manual
