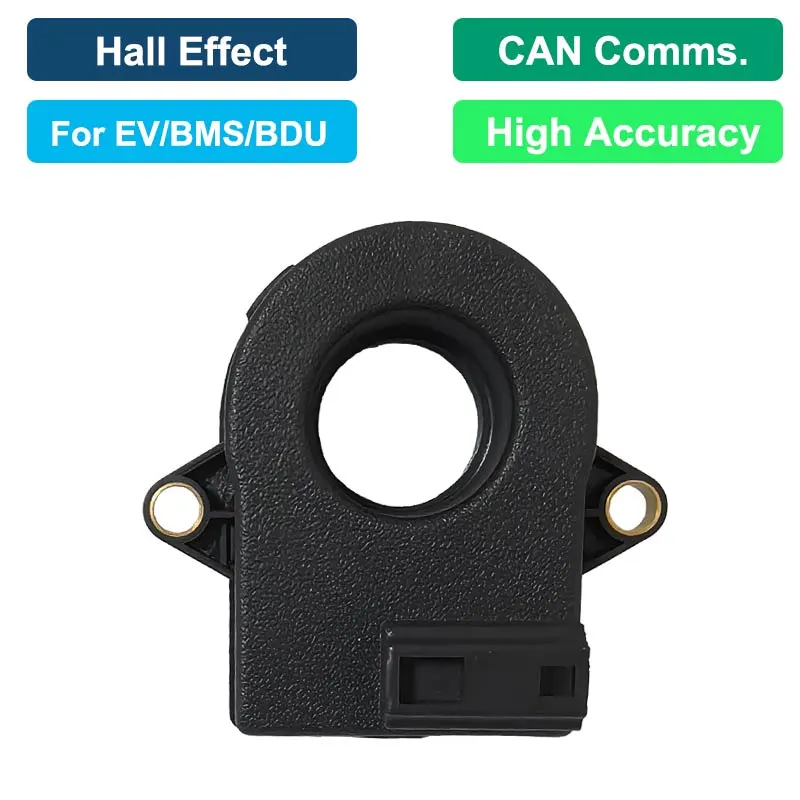

Acrel AHBC-CAN Hall Transducer [CAN comms.]
● Measurement: Direct Current (DC)
● Rated Measuring Current: 500A
● Communication: High-speed CAN 2.0 interface
● Accuracy: 0.2% [Temperature Drift＜50ppm]
● Perforation Size: 23.7 mm
● Power Supply: +18 ~ +28Vdc
![Acrel AHBC-CAN Hall Transducer [CAN comms.]](https://shopsource.singoo.cc/803/general/waK7dfMacFH5eDMR/AHBC-CAN.JPG)
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Describition
Feature

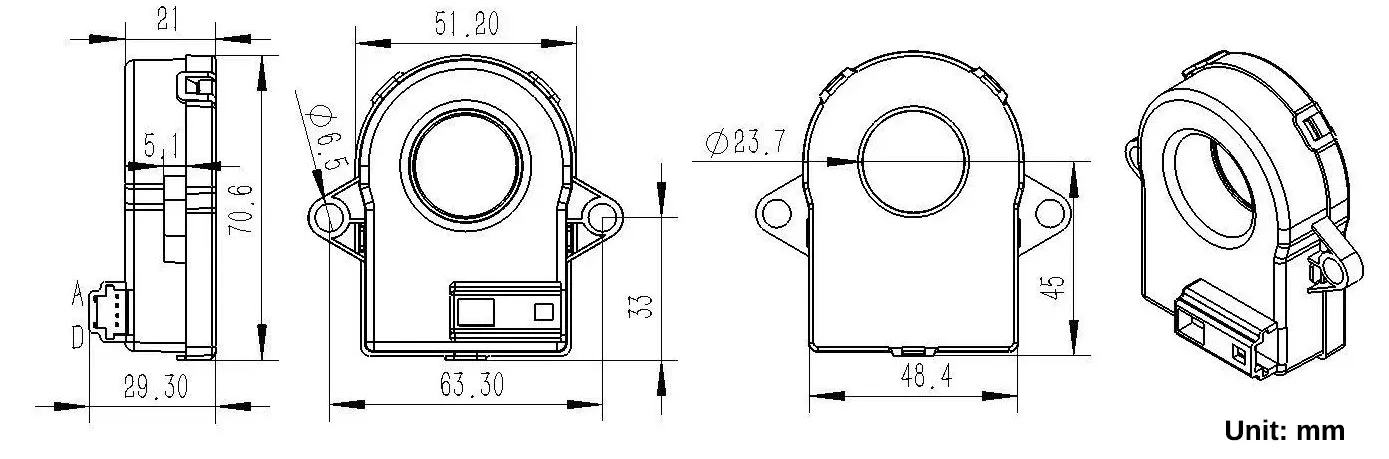

Dimension

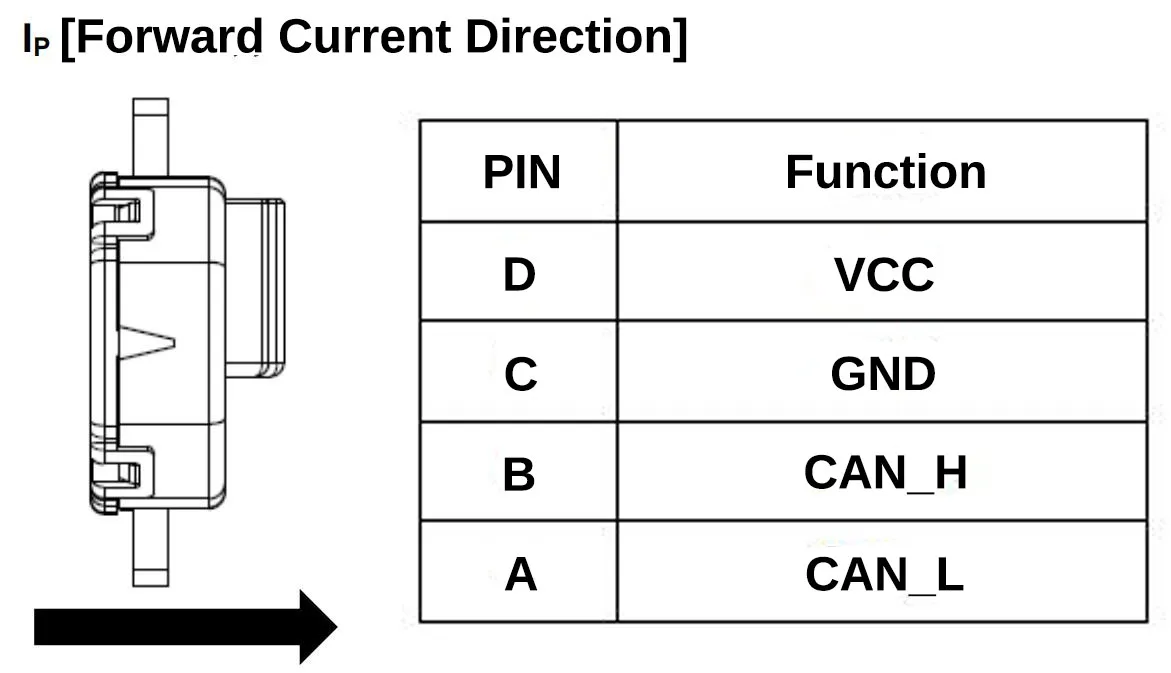

Installation Instruction
Limit Parameters
| Parameters | Symbol | Specs | Condition |
| Overvoltage | Uc | 35Vdc | 400ms |
| Overvoltage | Uc | 32Vdc | 1min |
| Min Operating Voltage |
Uc | 18Vdc | Can operate but can't measure |
| Max Operating Voltage | Uc | 28Vdc | Can operate but can't measure |
| Clearance | DCI | 7mm | / |
| Creepage Distance | DCP | 7.2mm | / |
| Insulation Resistance | RIS | 500MΩ | 500V, 1min |
| IP Rating | / | IP56 | / |
| AC Insulation Test Voltage | / | 5kV | 500Hz, 1min |
| DC Insulation Test Voltage | / | 5kV | 1min |
Standard Parameters
| Parameters | Symbol | Max Value |
Typical Value |
Min Value |
Unit | Condition |
| Rated Measuring Current | IPN | -500 | / | 500 | A | / |
| Max Measuring Current | IPM | -600 | / | 600 | A | / |
| Supply Voltage | Uc | 18 | 24 | 28 | V | / |
| Operating Current @Ip=0A |
Ic | / | 30 | / | mA | Uc=12V, T=25℃ |
| Operating Current @IPM | Ic | / | 160 | / | mA | Uc=12V, T=25℃ |
| Linearity Error | L | -0.1 | / | 0.1 | % |
±3σ Full Temperature Range
|
| Zero Offset @Ip=0A | Io | -10 | / | 10 | mA | ±3σ Full Temperature Range |
| Accuracy @Ip=±40A | XG | -60 | / | 60 | mA | ±3σ Full Temperature Range |
| Operating Temperature | TA | -40 | / | 105 | ℃ | / |
| Zero Offset Temperature Drift | T off | / | 0 | / | mA/K | / |
| Gain Temperature Drift | T gain | -50 | / | 50 | ppm/K | ±3σ Full Temperature Range |
| Output Noise | Noise | -10 | / | 10 | dB | / |
Download
-
AHBC-CAN50024V Hall Effect Transducer.pdf
