Wireless Temperature Measuring and Monitoring System

Jul 18, 2022

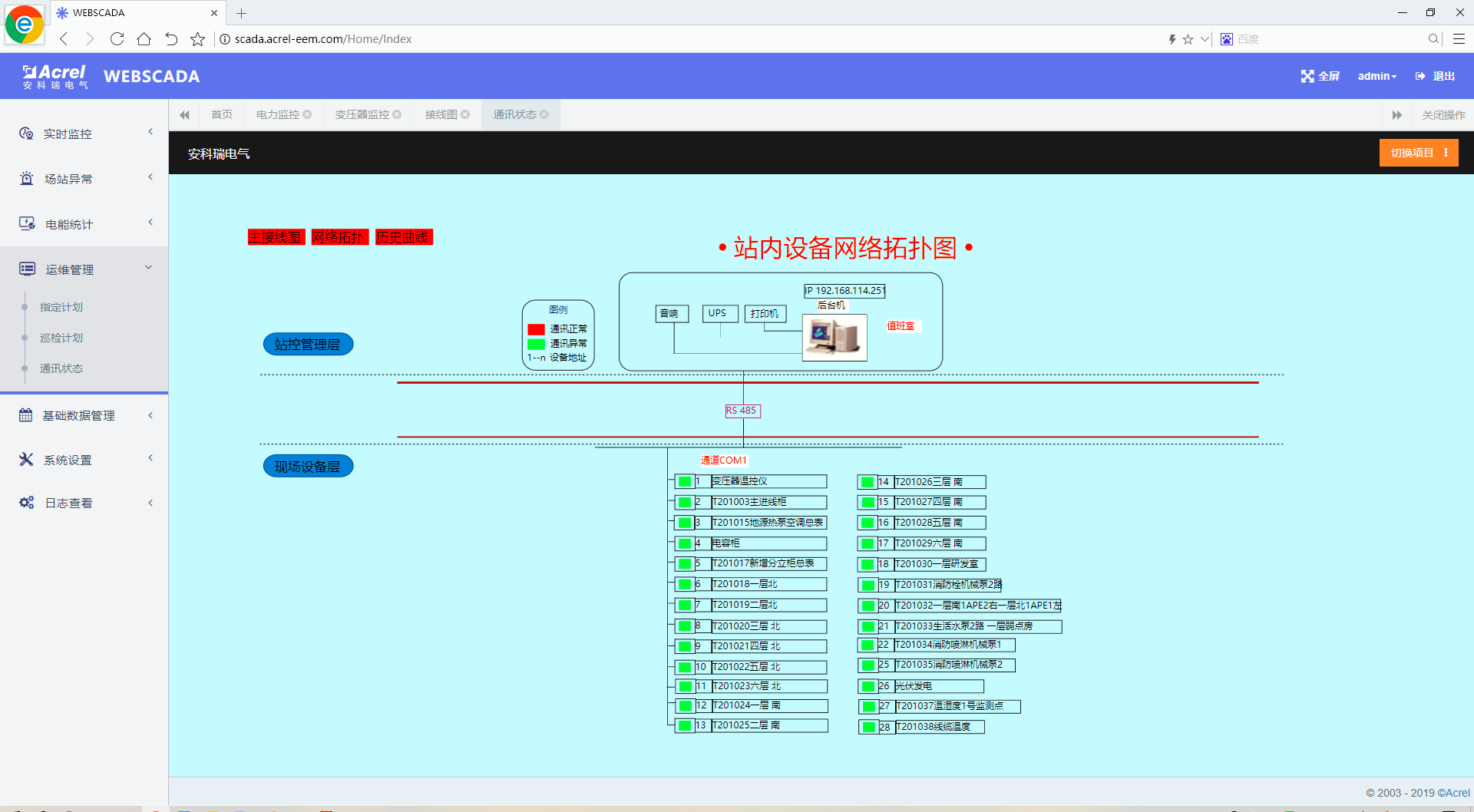

1)Wireless monitor temperature

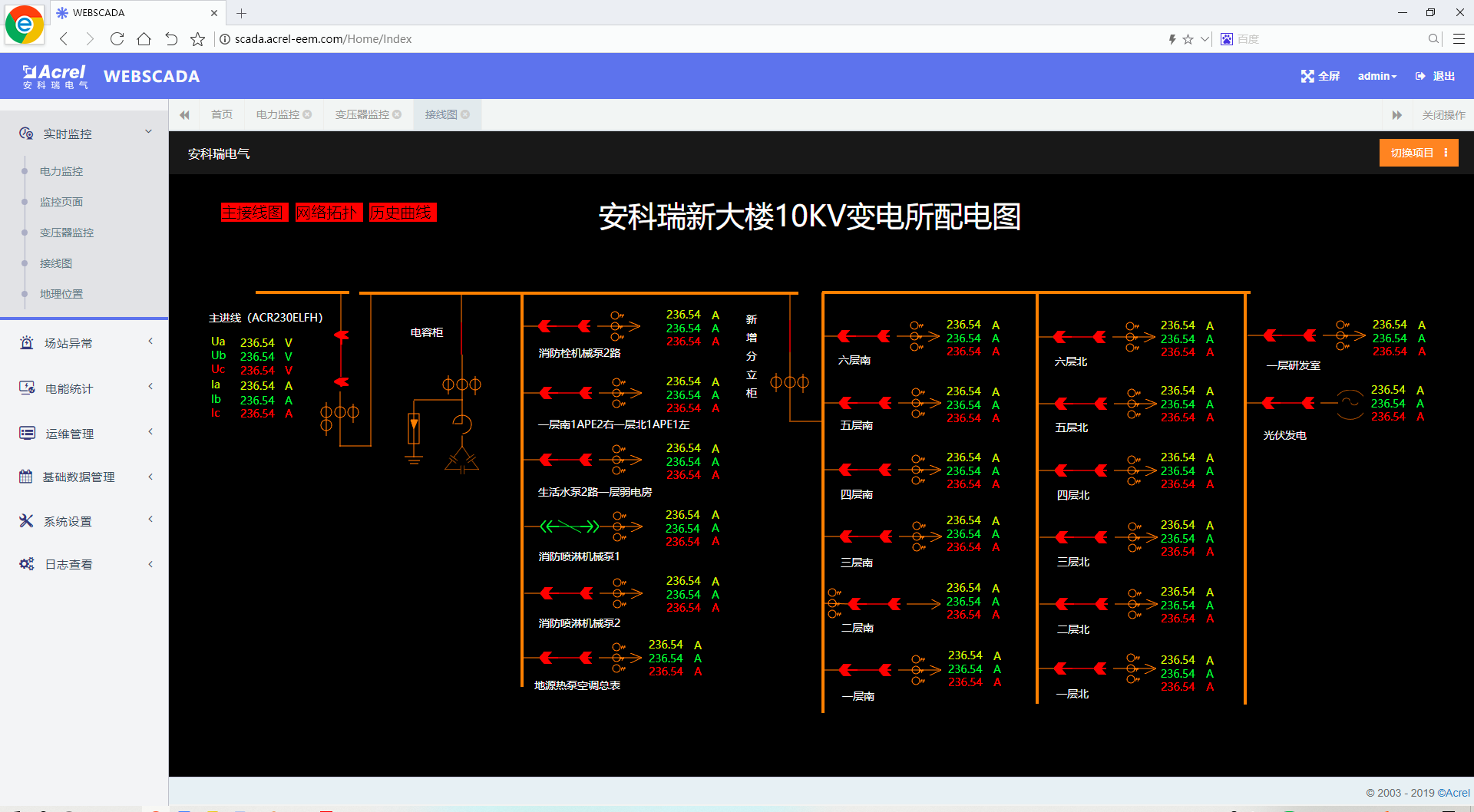

2)Temperature display

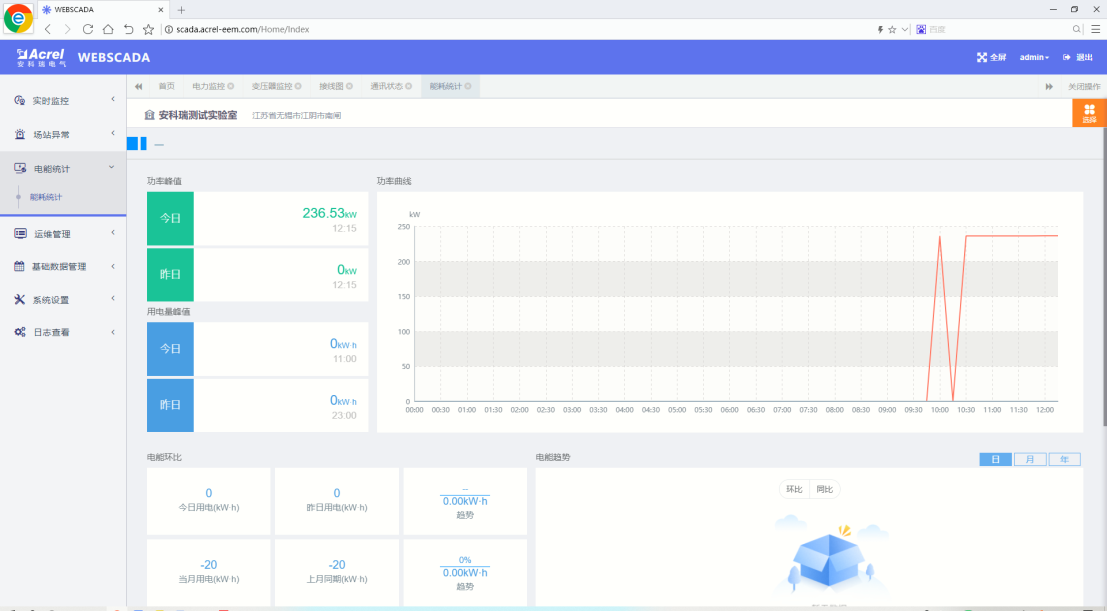

3)Report

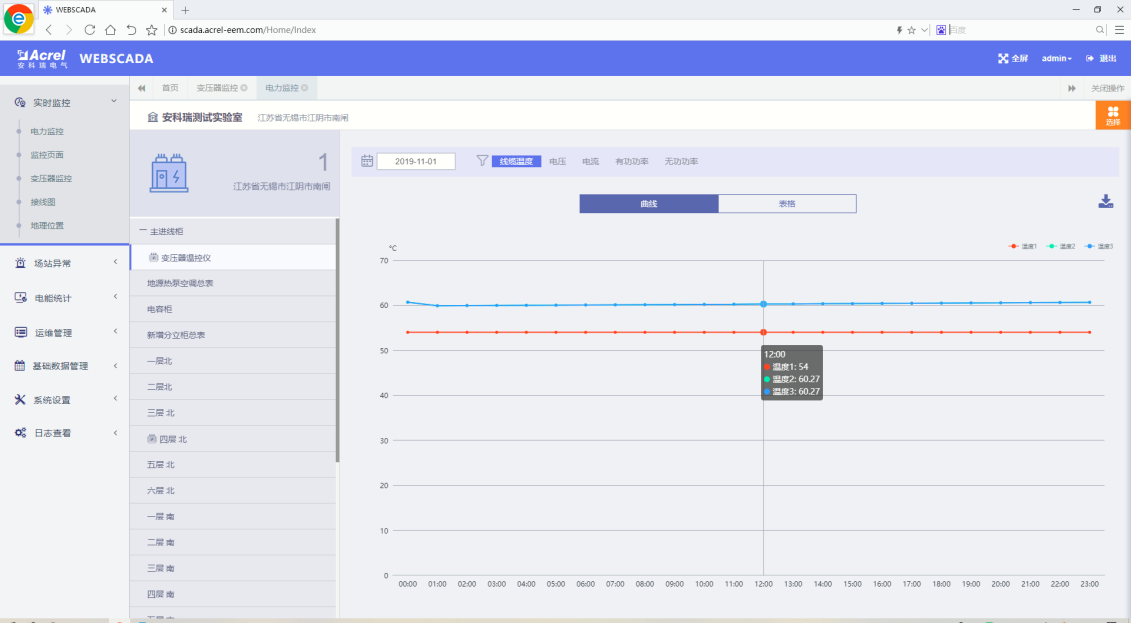

4)Curve

5) Web/APP

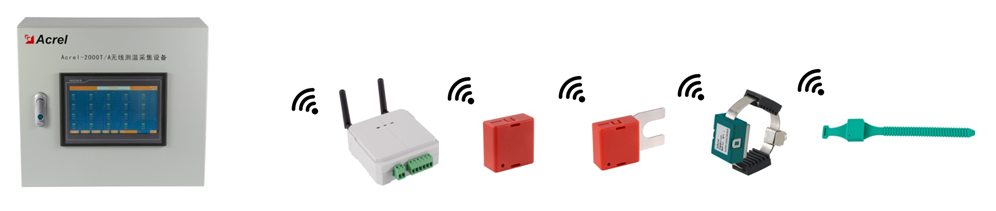

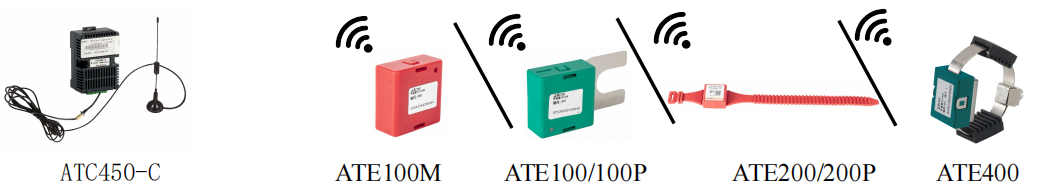

Typical Solution

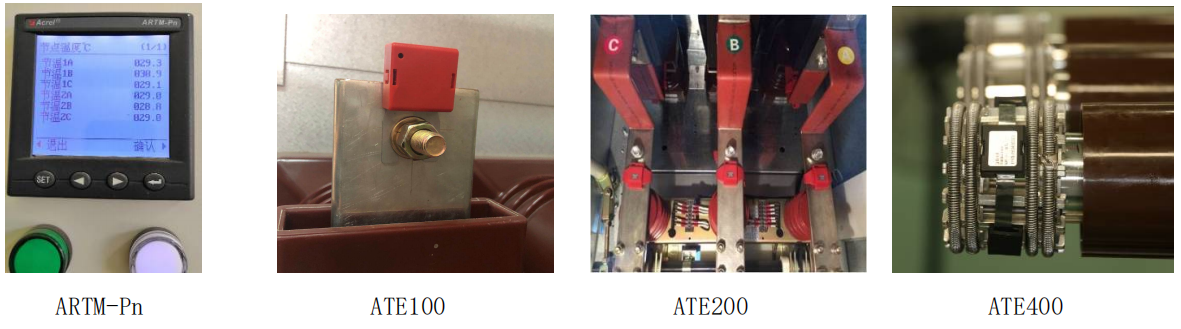

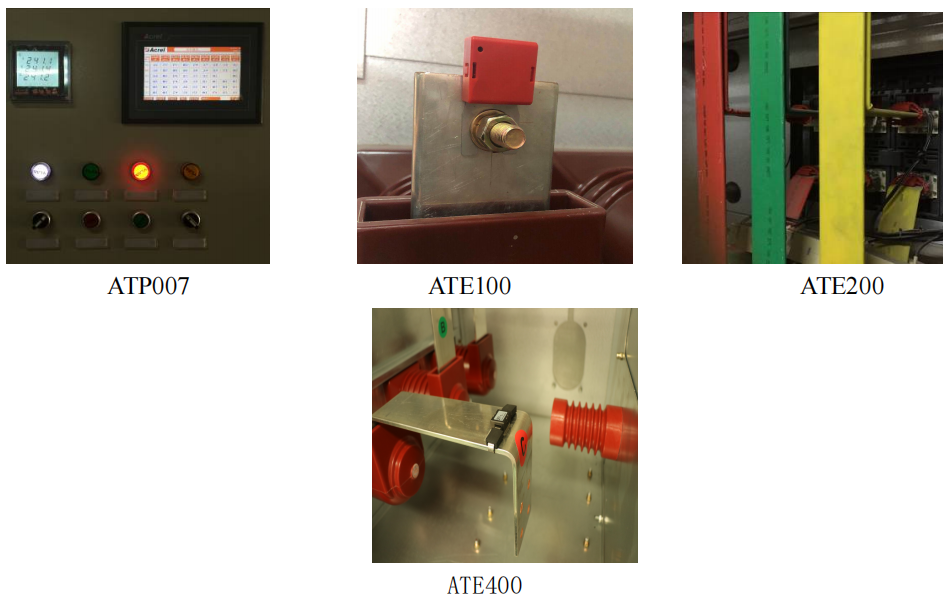

Installation example

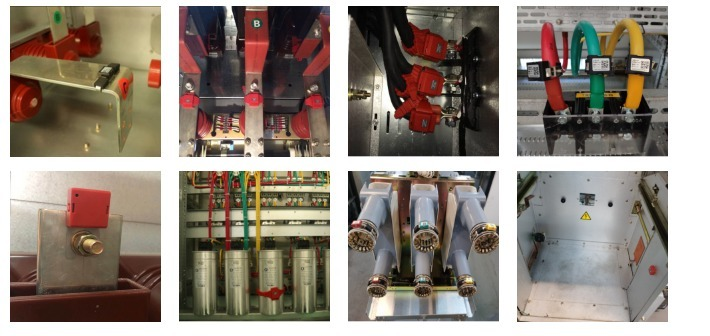

Installation example

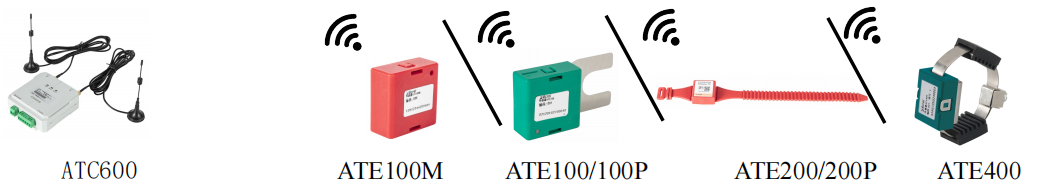

Product Selection

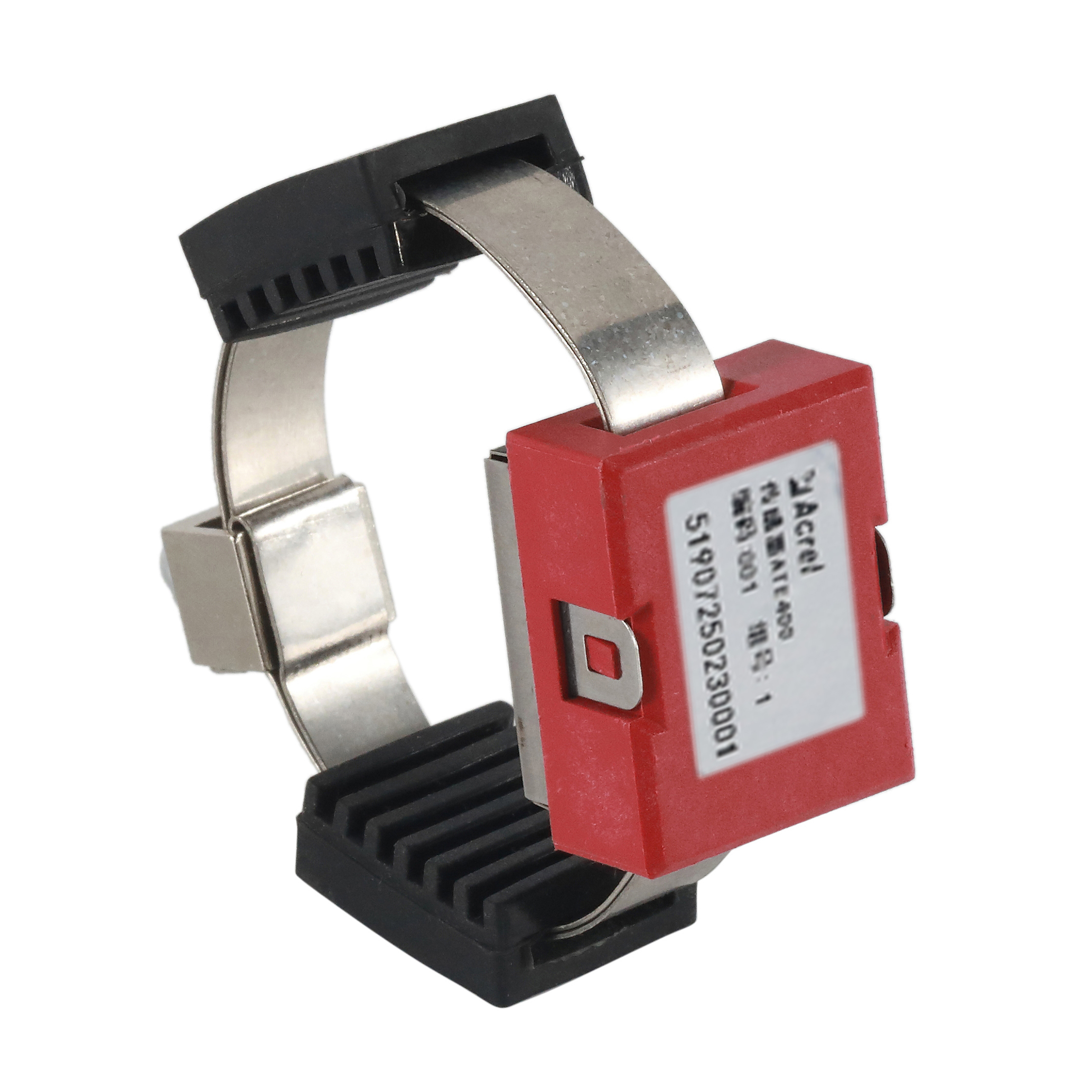

1)ATE400 Wireless Temperature Sensor

Small size;
Wireless transmit;
Wireless transmission distance, 150 meters;
Fase sampling frequency,15s;
CT-powered,more than 5A starting current;
Widely temperature measuring range, -40℃~125℃.

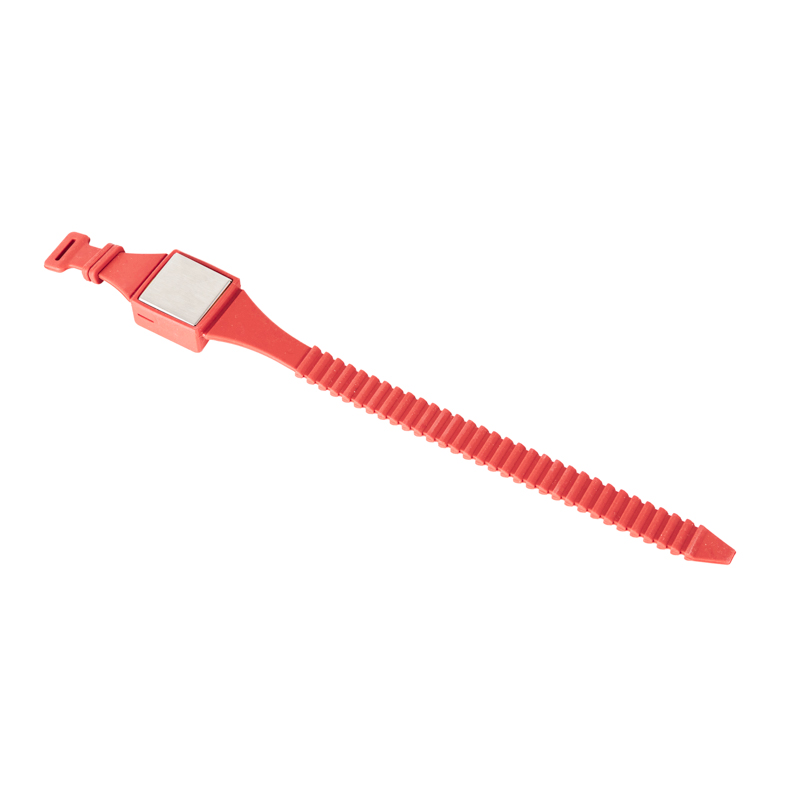

2) ATE200 Belt Wireless Temperature Sensor

Wireless transmit;
Wireless transmission distance, 150 meters;
Fase sampling frequency,25s;
Battery -powered,more than 5 years;
Widely temperature measuring range, -40℃~125℃.

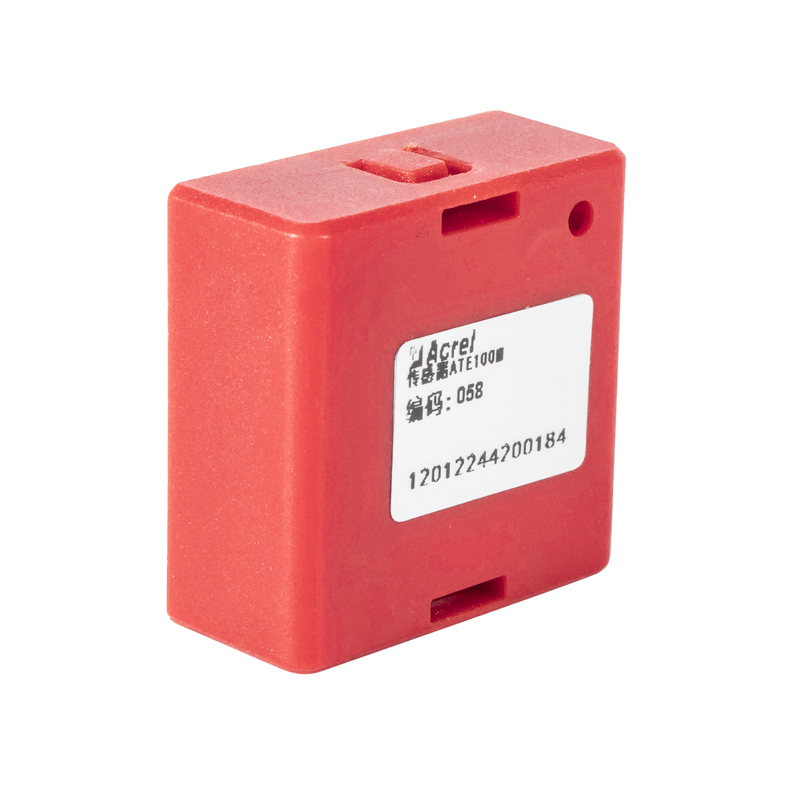

3) ATE100M Mangetic Temperature Sensor

Wireless transmit;
Wireless transmission distance, 150 meters;
Fase sampling frequency,25s;
Battery -powered,more than 5 years;
Widely temperature measuring range, -40℃~125℃.

4) ATC600-C Recevier

Wireless temperature measurement;
Measuring 240 points;
1 RS485 serial communication, Modbus-RTU;
2 alarm relays;
Power supply adapt with AC/DC220V,AC/DC110V.

5) ARTM-Pn Display Terminal

Wireless temperature measurement, 60 points;
U, I, P, Q, f, Ep, Eq measurement；
4 digital inputs;
2 alarm relays, high temperature alarm;
LCD display;
Power supply adapt with AC220V, DC220V, DC110V, AC110V;
1 RS485 serial communication, Modbus-RTU.
