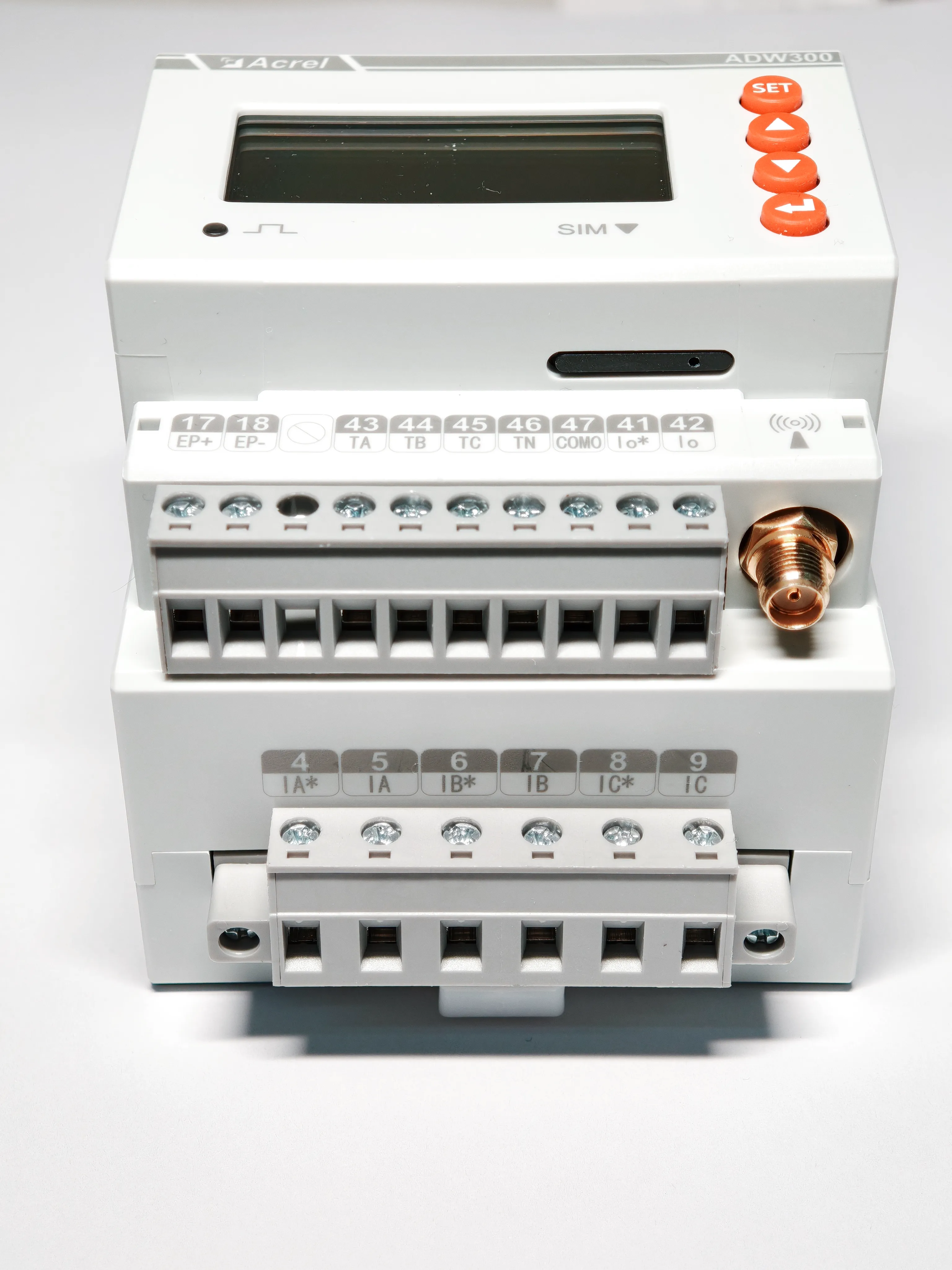

ADW300A is a flexible wireless energy meter supporting split-core CTs and Rogowski coils. It provides high-accuracy energy metering, electrical parameter measurement, harmonic monitoring, temperature and residual current monitoring, with multiple communication options including 4G, WiFi, LoRa and LoRaWAN. It is suitable for energy monitoring, remote metering and data collection in factories, commercial buildings, telecom base stations, renewable energy sites and other distributed applications.



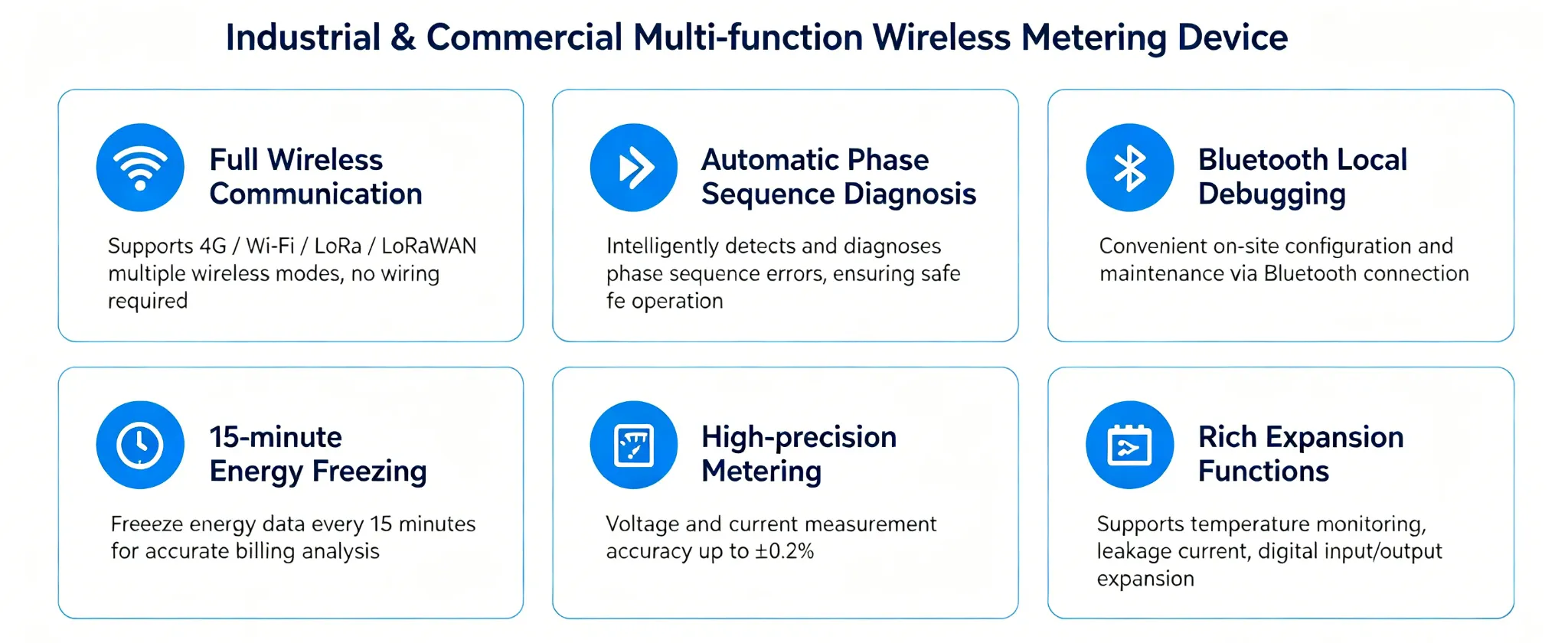

Feature

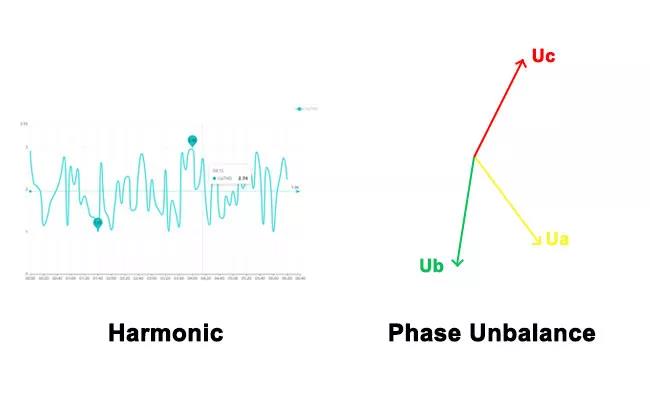

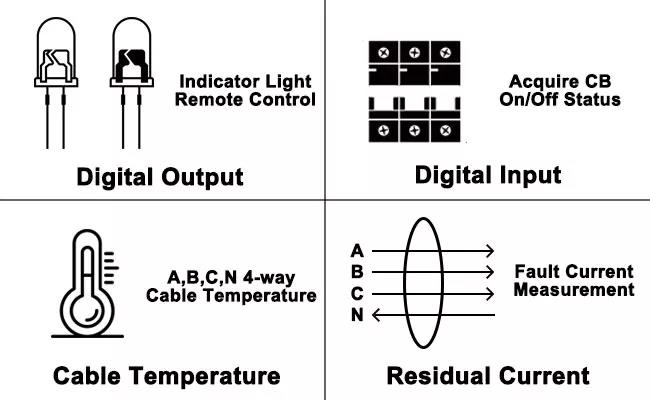

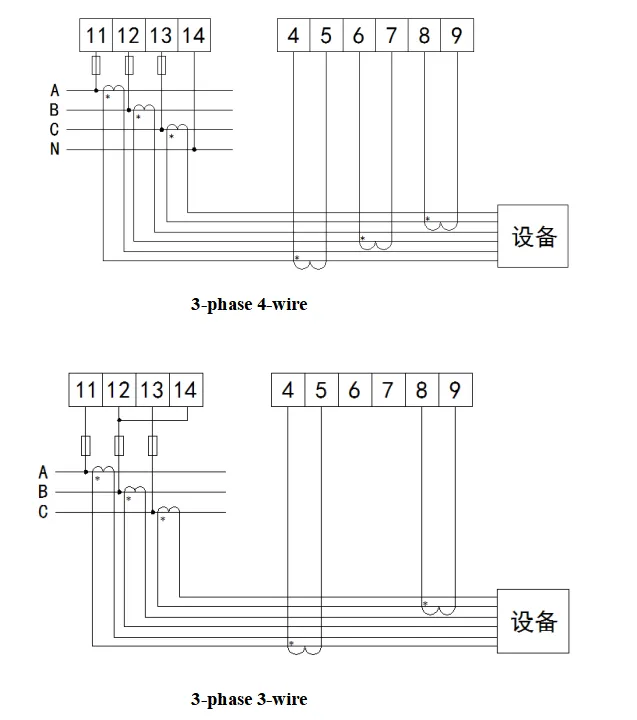

Wiring Diagram









•
•
•
•
•

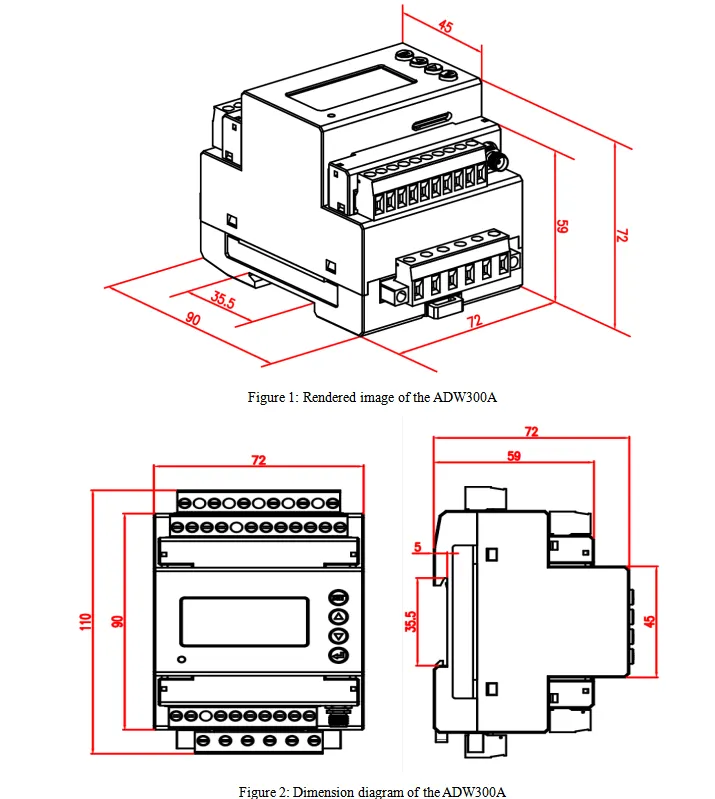

Dimension(Unit:mm)

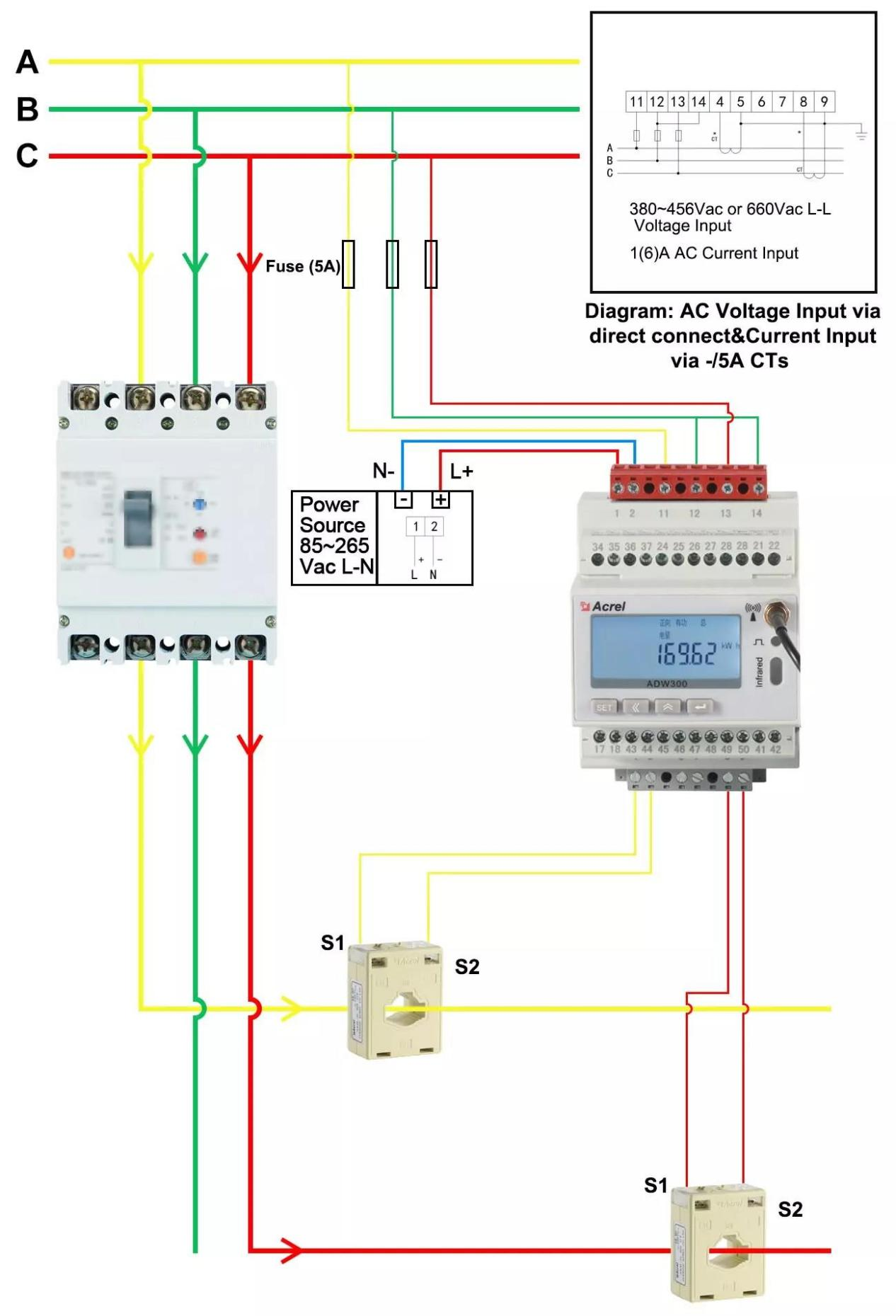

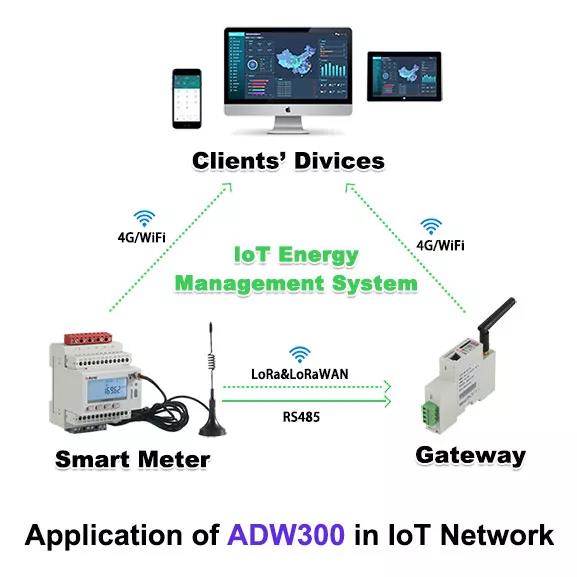

Typical connection

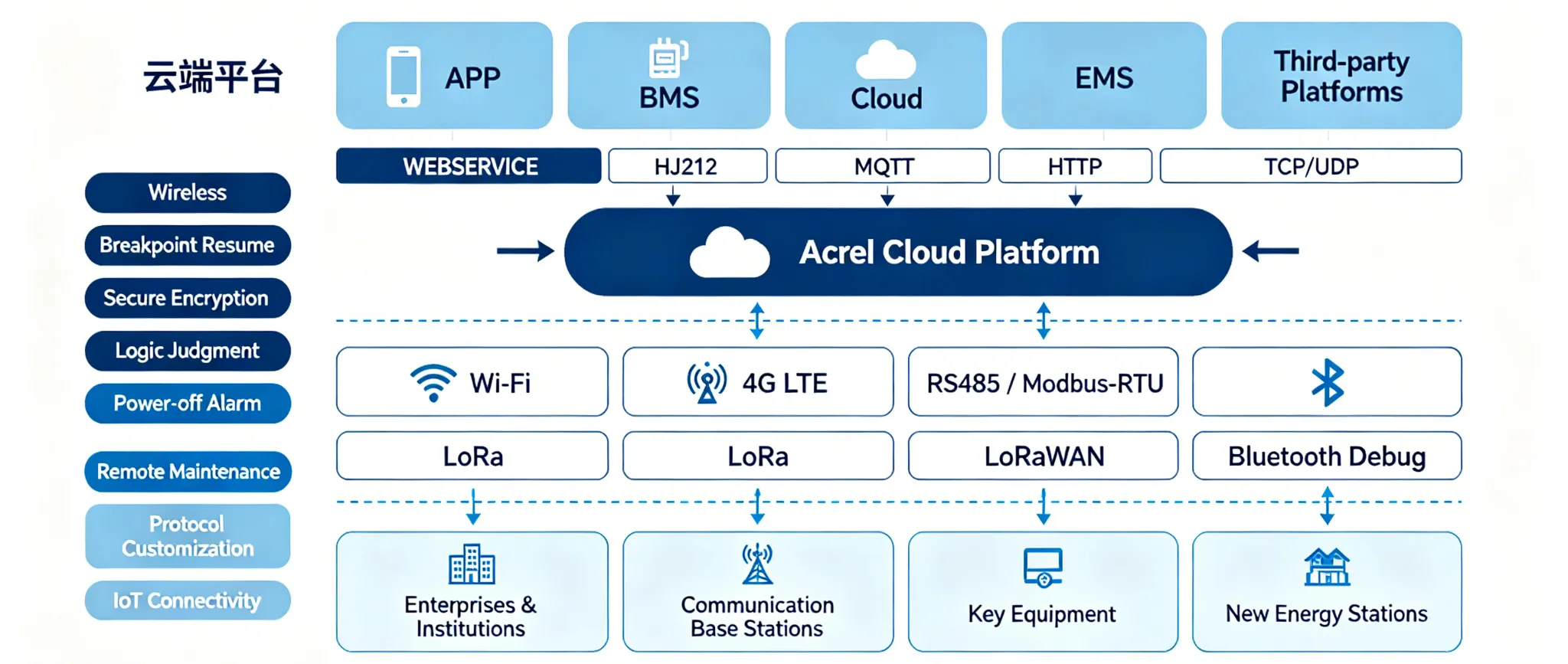

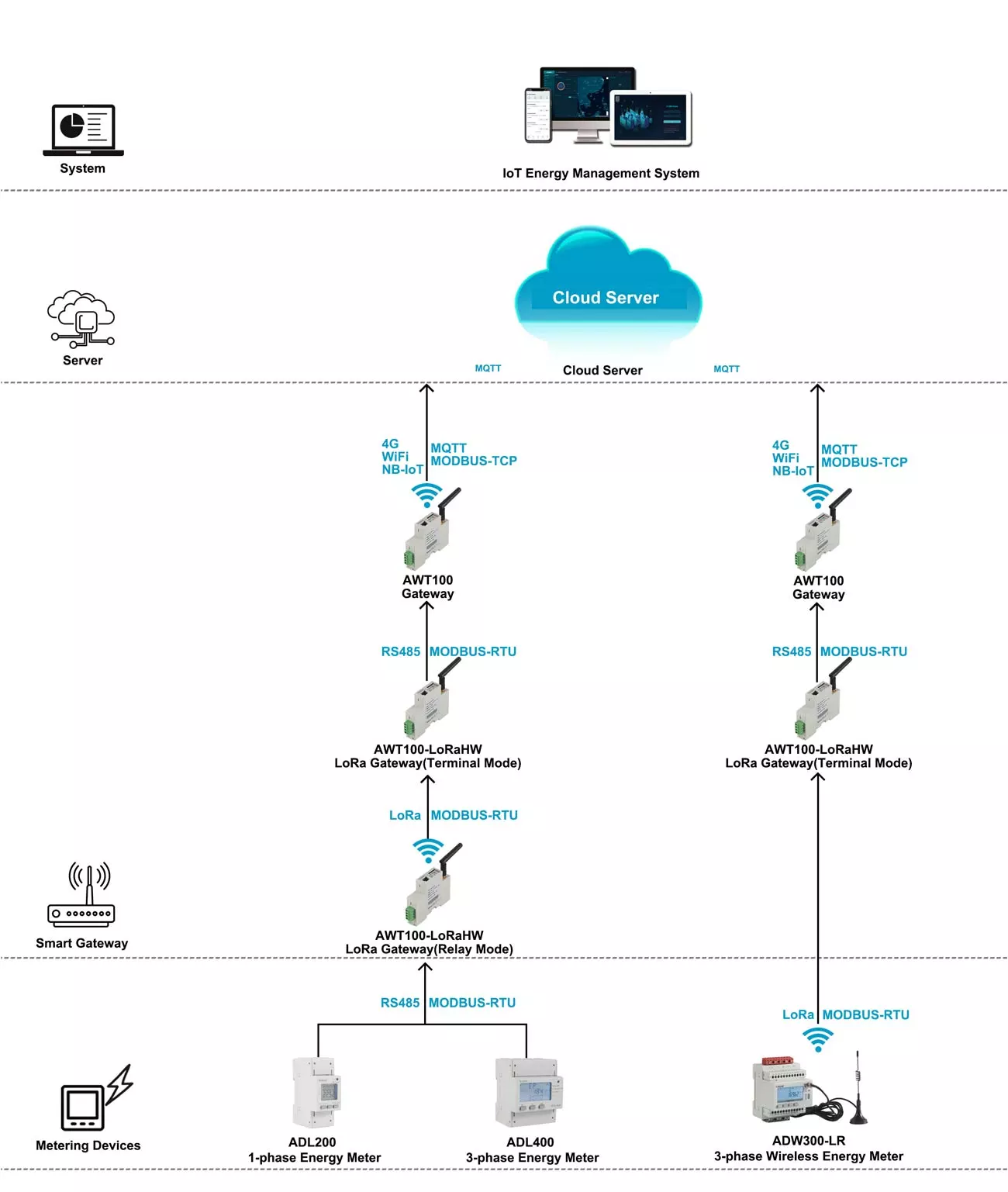

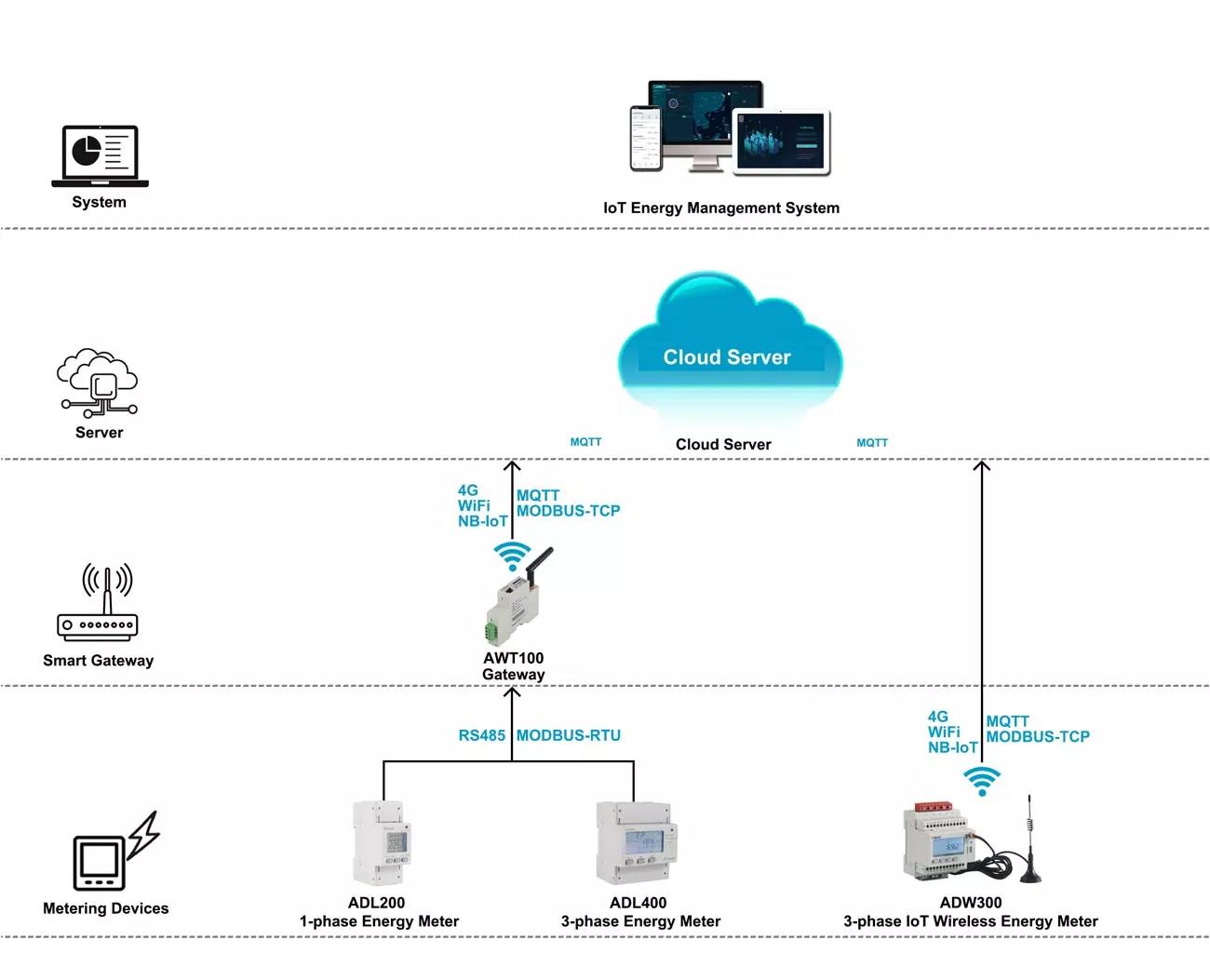

Acrel IOT Platform





1.System support all the meters across the country whose data has been sent to cloudserver through 4G,WiFi or Ethernet.

2.Remote meter reading and data collection.

3.Provide loT APP for mobile phone side and loT WEB for PC side

4.Generate energy data report of daily, monthly and annually period with year-on-yeay andperiod-on-period energy analysis.

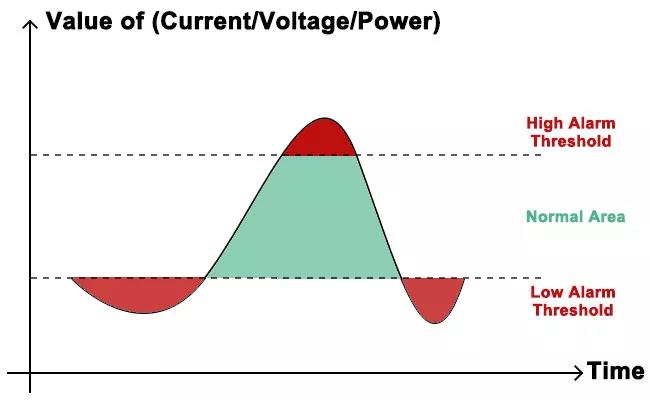

5.Provide various alarm function to ensure a stable operation of the system and protect youlproperty.

6.Offer 3-month free trial of system with full technical support as for a test phase or pilotproject.

Remark:

1AcrelloT EMS WEB(For PC users):http://iot.acrel-eem.com/

2AcrelloT EMS APP(For mobile Users):https://play.google.com/store/apps/details?id=com.acrel.iotems

3.Test Account: AcrePassword:123456

View more

Q：What's the biggest advantage of ADW300A?

A：ADW300 has its built-in wireless communication module which allow it to realize 4G LTE, WiFi, NB-IoT, LoRa upstream communication without using extra IoT gateways. For the application scenarios when the meters can't be of centralized installation, ADW300 will usually be the best option for monitor 3-phase circuits that were far from each other.

Q：How should I deal with RS485 network communication malfunction?

A：First, check if the wiring of RS485 communication line was loosen or wired incorrectly.(like reversely wiring the A,B terminal).

Next,inspect if the meter’s setting of address, baud rate, check bit was correct by using keypads on the meter.

Q：What do 3×57.7/100V,3×220/380V,3×380/660V,3×100V,3×380V,3×660V represent respectively?

A：The meter’s spec of 3*100V,3*57.7/100V is suitable for high voltage power system while pairing with PT(potential transformer or voltage transformer). Beside, 3*100V represent 3-phase 3-wire and 3*57.7/100V represent 3-phase 4-wire.

The meter’s spec of 3*220/380V,3*380/660V,3*380V,3*660V is suitable for low voltage power system(directly connect with meter). Meanwhile,3*380V,3*660V represent 3-phase 3-wire and 3*220/380V,3*380/660V represent 3-phase 4-wire.
