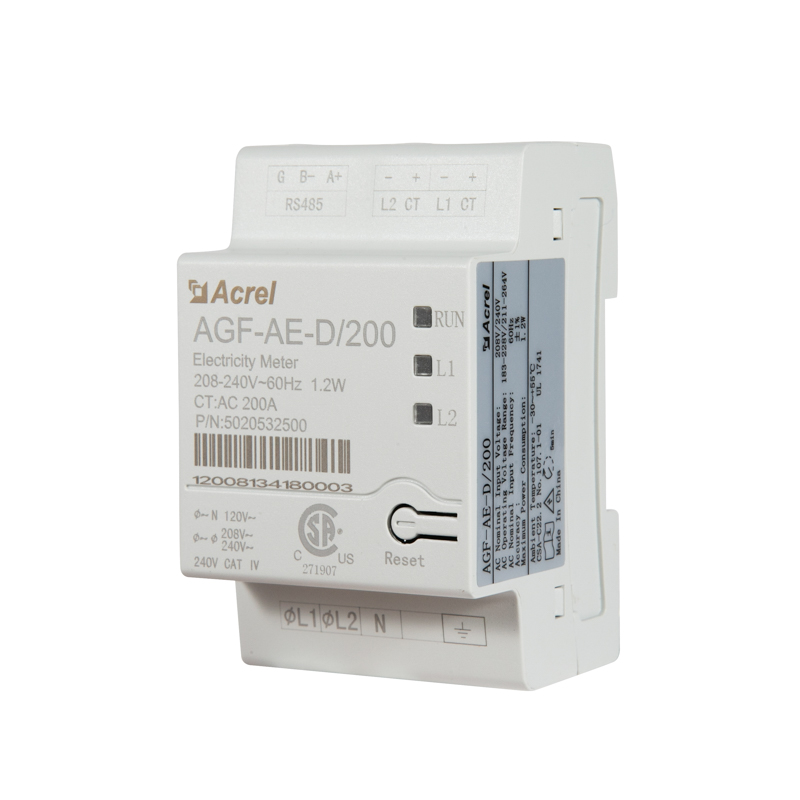

Acrel UL AGF-AE 1-Phase 3-Wire Solar Power Monitoring Energy Meter with 2 Split Core 200A Current Sensor Rs485 Modbus-RTU

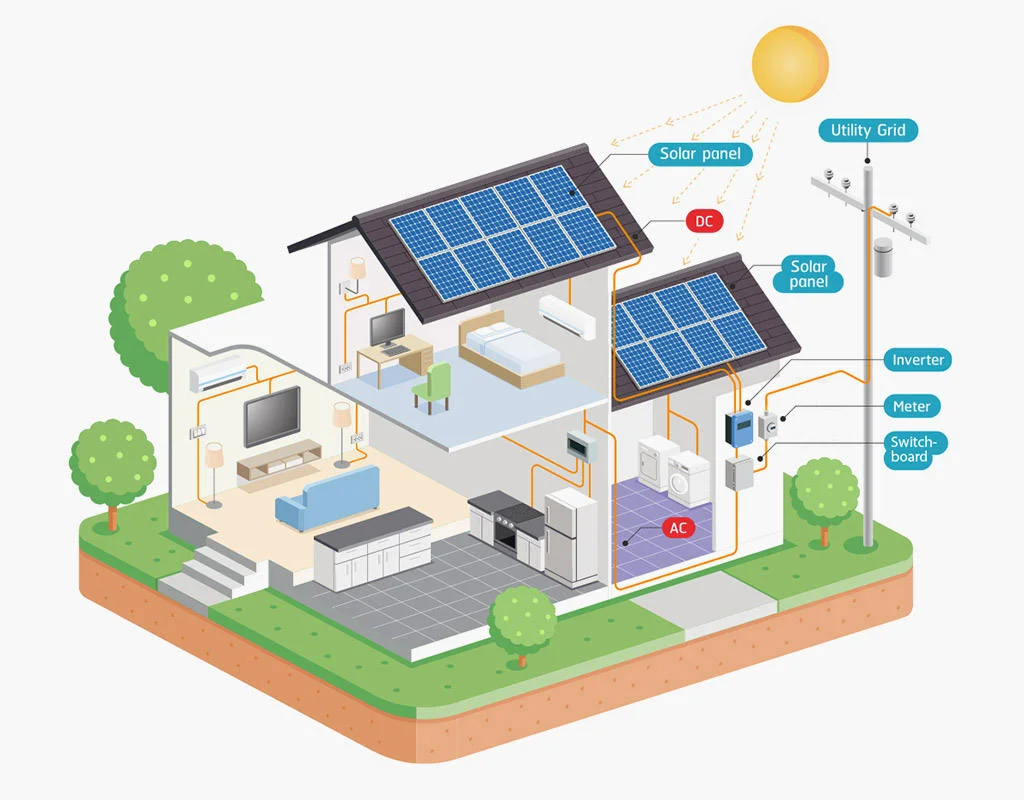

·Used for Distributed Solar PV System Scenario
·Full AC electrical parameter monitoring
·Connection of Single-Phase Three-Wire
·Anti-Reflux Function(paired with inverter)
·Bidirectional Accurate Metering
·Response Time: less than 1s
Overview
|
|
|
|
|
● Measurement: Active Power, Reactive Power, Current, Voltage and etc
● Wiring: 1-phase 3-wire Connection
● Current Rating: 100A or 200A AC (paired with external CTs)
● Communication: RS485 (MODBUS-RTU)
● Application: Using distributed Solar PV and Anti-reflux Inverters
● Dimension: 54.1*87.8*52mm (H*W*D)
● Installation: 35mm DIN Rail
● Standard&Certificate: UL1741;TUV
|
|
Meter Electrical Service |
Units |
||
|
AGF-AE-D/100 |
AGF-AE-D/200 |
||
|
Rated Voltage-Line to N |
120 |
V |
|
|
Rated Voltage-Line to Line |
208/240 |
V |
|
|
Extended Voltage Range |
88%~110% |
||
|
AC Frequency |
60 |
Hz |
|
|
Grids Supported |
L1/L2/N/PE |
||
|
Power Consumption |
1.2 |
W |
|
|
Communication |
|||
|
Meter Communication Interfaces |
RS 485 |
||
|
Response Time |
≤1 |
S |
|
|
Meter Accuracy |
|||
|
Rated RMS current |
100 |
200 |
A |
|
1%-100% of CT Current |
±0.5 |
±1 |
% |
|
Current Transformers |
|||
|
Number of Supplied Current Transformers |
2 |
||
|
Dimensions |
I.D:15 O.D:35 |
70.5×54.5×39 (H×W×D) |
mm |
|
Standard Compliance |
|||
|
Safety |
UL1741 |
||
|
Installation Specifications |
|||
|
Dimensions(H×W×D) |
54.1×87.8×52 |
mm |
|
|
Weight |
0.2 |
kg |
|
|
Operating Temperature Range |
-30~55 |
℃ |
|
|
Relative Humidity (noncondensing) |
5 - 90 |
% |
|
|
Mounting Type |
DIN-Rail,35mm |
||
|
|

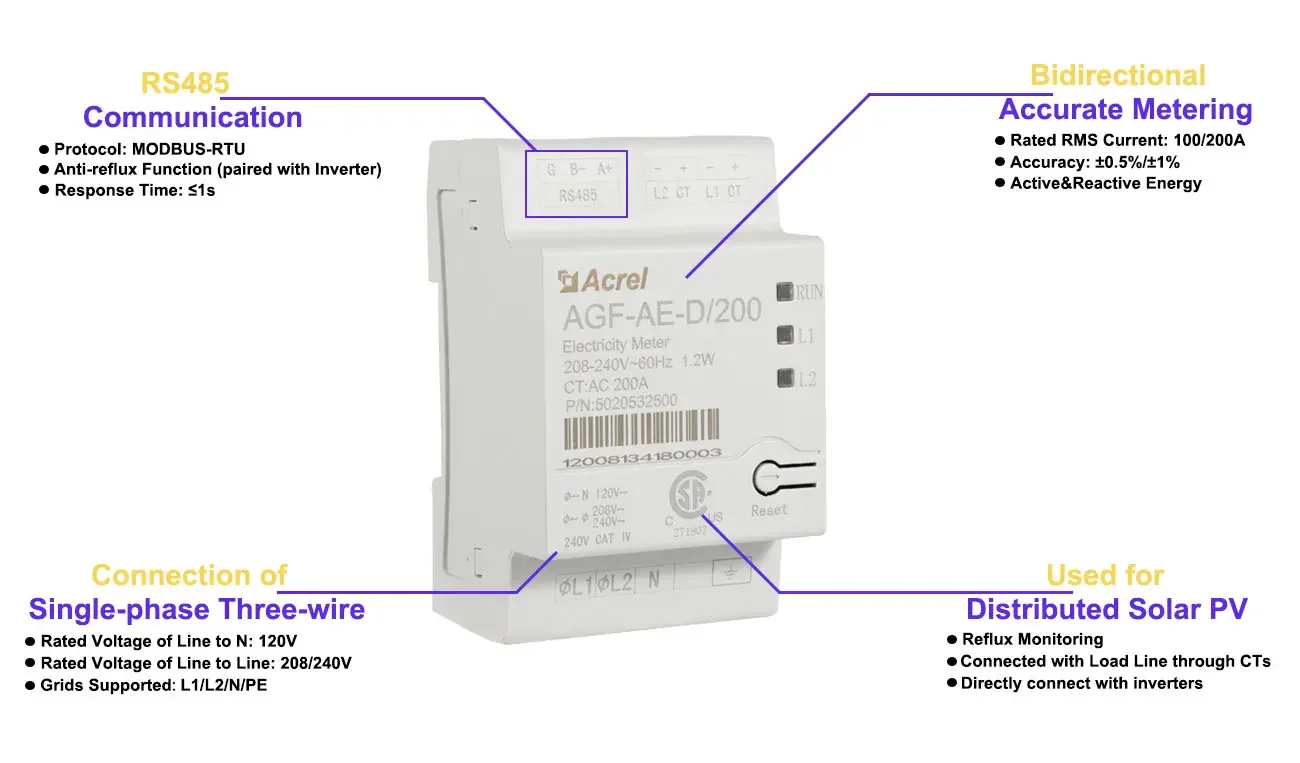

Used for distributed Solar PV ● Reflux Monitoring ● Connected with Load Line through CTs ● Directly connect with inverters |
|
|
Single-phase Three-wire Connection ● Rated Voltage of Line to N: 120V ● Rated Voltage of Line to Line: 208/240V ● Grids Supported: L1/L2/N/PE |
|
|
RS485 Communication ● MODBUS-RTU Protocol ● Communicate with Inverter to realize anti-reflux Function ● Response Time: ≤1s |
|
|
Bidirectional Metering ● Active&Reactive Energy Metering ● Rated RMS Current: 100/200A ● Accuracy: ±0.5%/±1% |
-
272 AGF-AE-D Installation and Operation Manual V1.1.pdf
