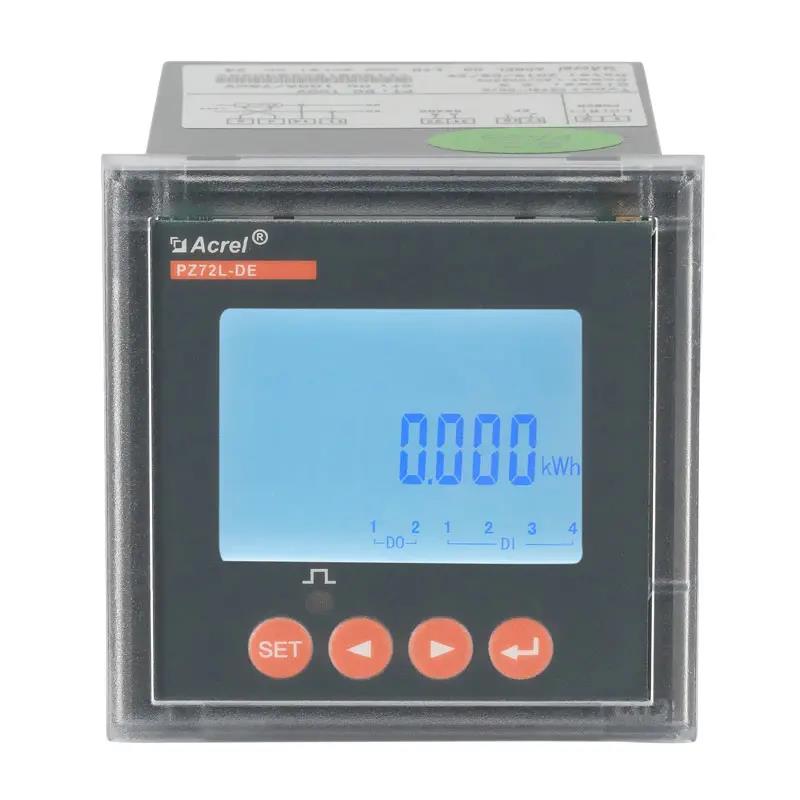

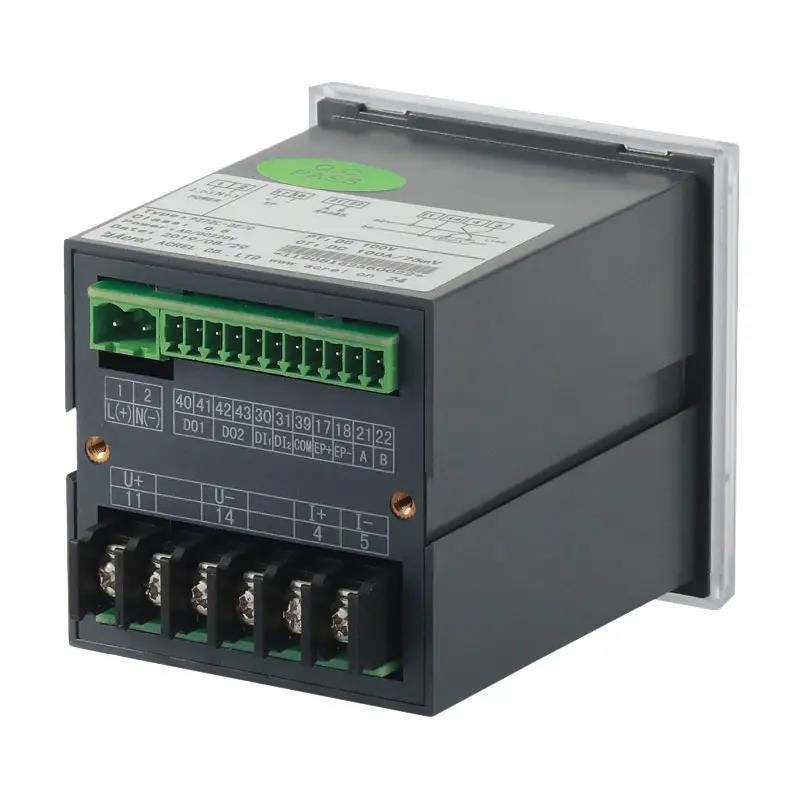

Acrel PZ72L-DE DC Multi-function Energy Meter Measure DC 1000V

Rated voltage:DC0~1000V(customized)
Rated current:0~20mA,4~20mA,0~5V,0~4V via hall sensor
Rated current:0~75mV via shunt
Function:Measure voltage, current, power, power consumption in DC system; DI/DO, Relay alarm output
Communication:RS485(MODBUS-RTU)
Applications:DC panels, solar power, tele base stations, and charging pile

008618702112136

sherry@acrel.cn

8618702112136

Acrel PZ72L-DE DC Multi-function Energy Meter Measure DC 1000V

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

General

PZ series intelligent DC energy meter is designed for applications such as DC panels, solar power, telecommunications base stations, and charging posts. This series of instruments can measure voltage, current, power, forward and reverse power in DC system. It can be used for local display, and connected with industrial control equipment, computers, form a measurement and control system.

*Adopt high flame-retardant shell

*Bi-directional energy measurement

*Voltage up to 1000V

*Current can be connected with hall sensor,shunt

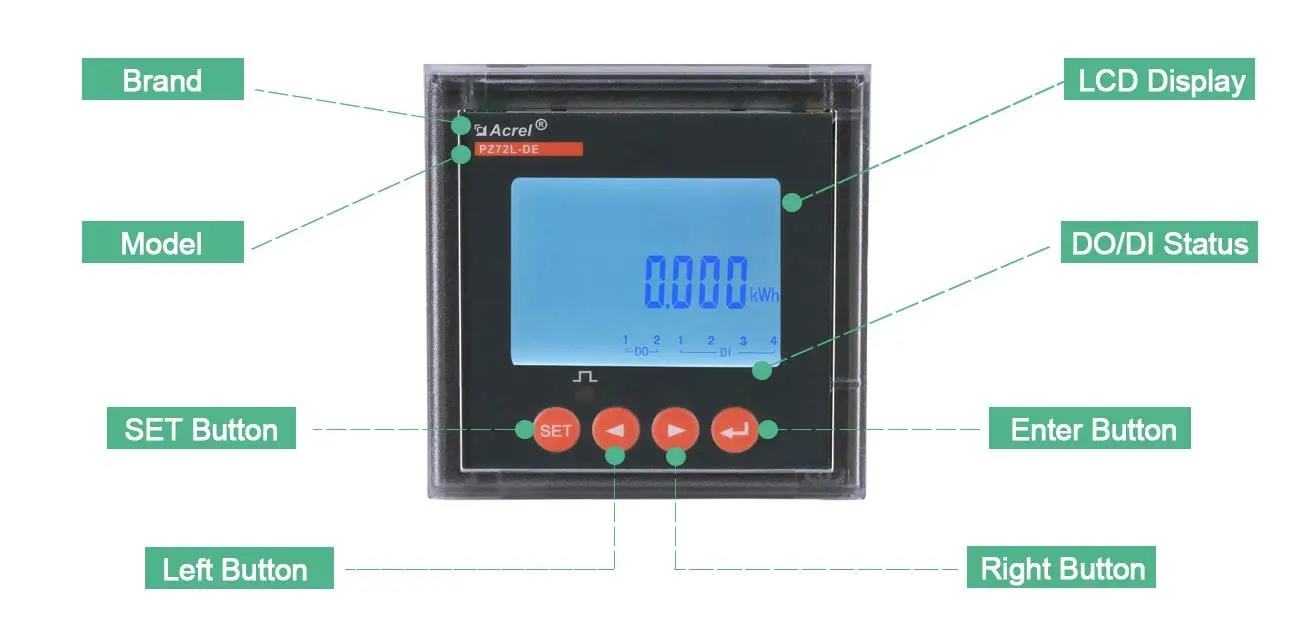

Detail

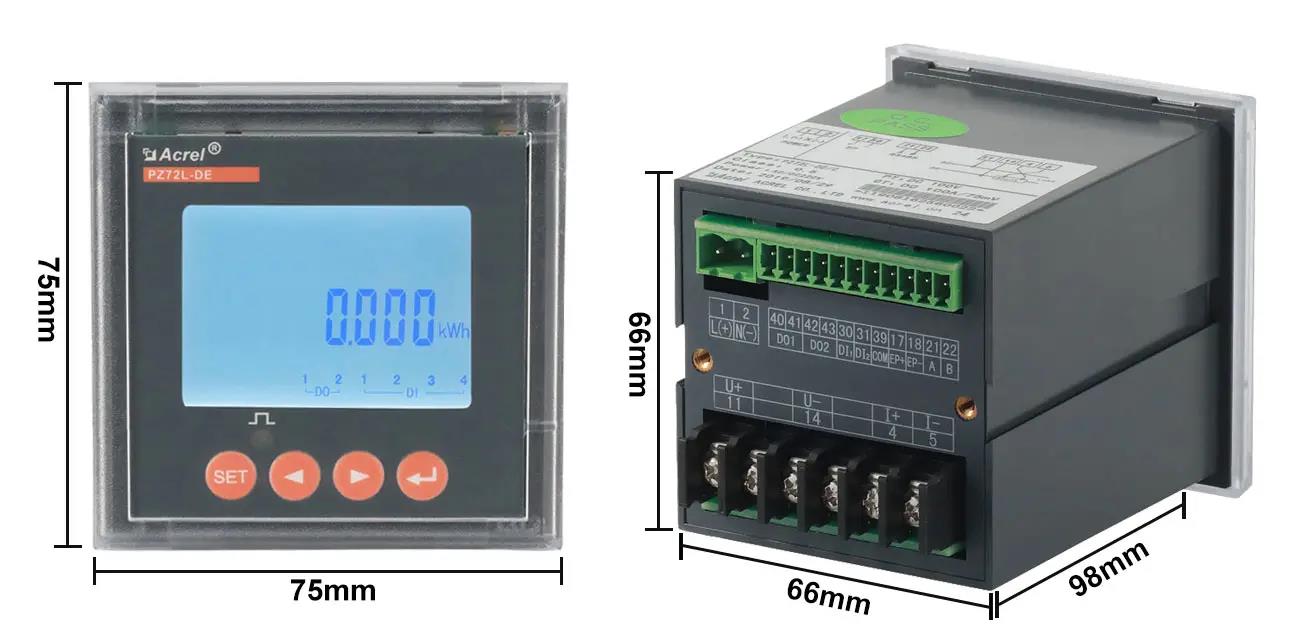

Dimension (unit:mm)

Wiring Diagram

DC Voltage Signal (1000V DC) Input via direct Connection & DC Current Signal (75mV DC) input via -/75mV Shunts

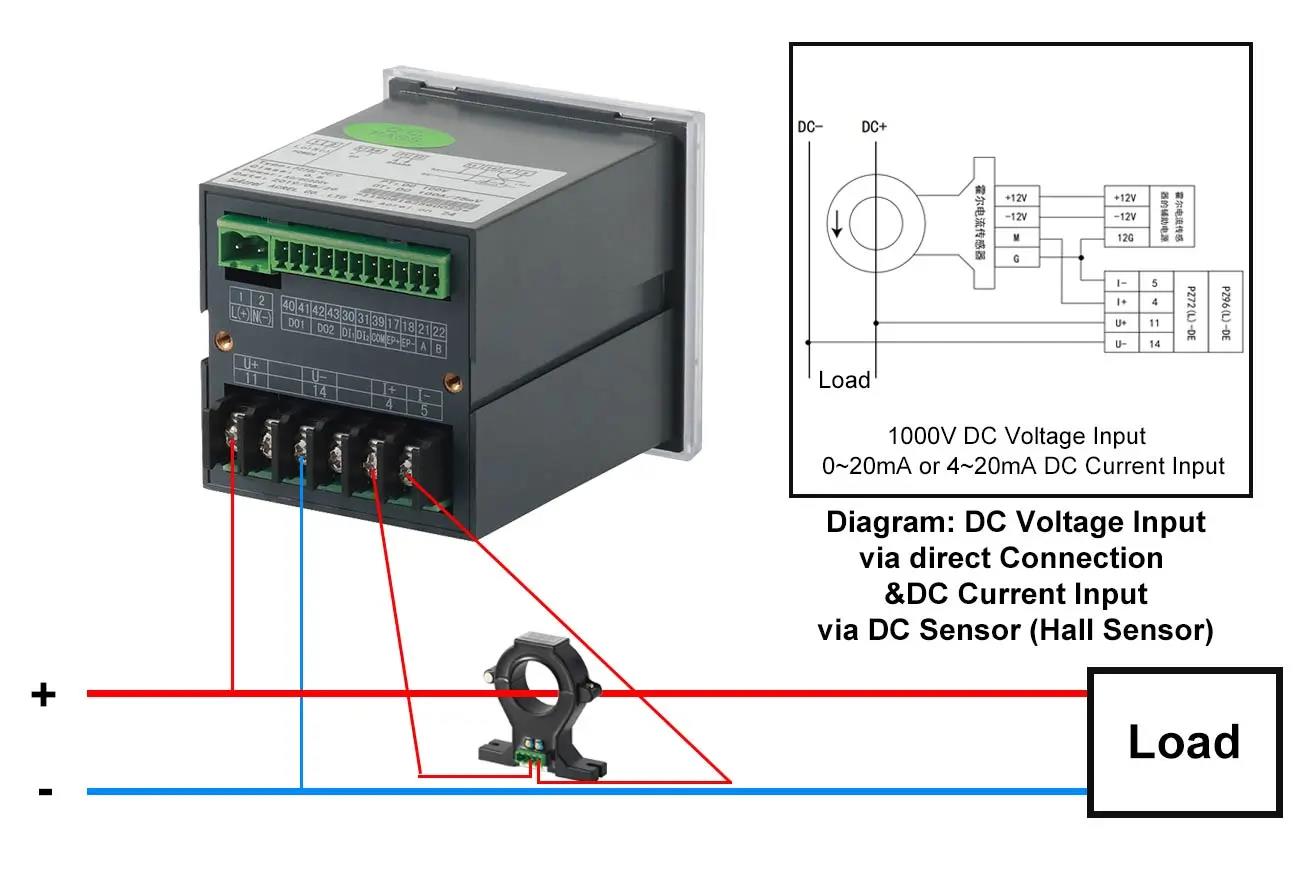

DC Voltage Signal (1000V DC) Input via direct Connection & DC Current Signal (0~20mA or 4~20mA DC) input via Hall Sensors

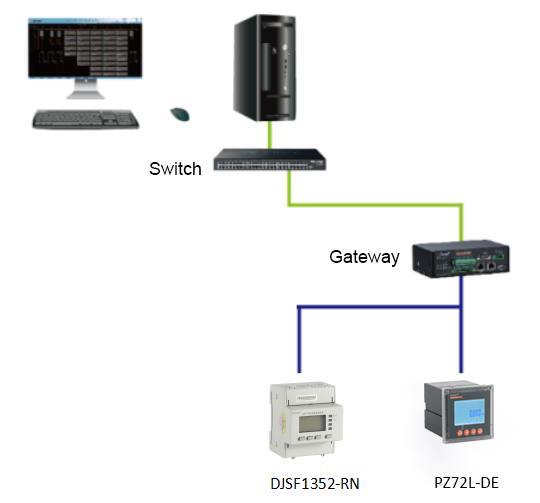

Application

Technical parameter

Function Overview

Function	Description&Value
Measurement	1-circuits DC Voltage, Current, Power, kWh
Display	LCD display
Communication (Optional)	RS485,Modbus-RTU protocol;(1 start bit,8 data bit,1 stop bit,no parity) Baud Rate 1200~38400 bps etc.
DI/DO Switching (Optional)	DI (Digital input): 2-channel digital input,dry contact, built-in power supply DO (Digital output): 2-channel digital output (relay output) with NO Contact, Capacity: 2A/30V DC or 2A/250V AC
±12V Power Output (Optional)	Serve as the power supply for 1 Hall Sensors with ±12V DC
Multi-rate/tariff (Optional)	2 Time Schedules; 4 Time Zone for a year; 12 time periods by days set for 1 time schedule; 4 Tariff Rates (Spike, Peak, Flat, Valley); Min. Time Interval=15 min.

Main Parameters

Parameter	Description&Value
Input	Rated Voltage	DC Voltage Input: 0~1000V DC (via direct connetion); Input Resistance: ≥ 6kΩ/V
	Rated Current	DC Current Input: 10A DC (via direct Connection); 0~20mA or 4~20mA (via Hall Sensors); 75mV (via Shunts)
	Overload	Current&Voltage input overload:1.2 times rated value(continuous); 10 times rated value /1 second
	Power Consumption	Power consumption of each current input circuit is less than 1mW
Measuring Accuracy	Class	0.5%
Power Supply	Voltage Range	85-265V AC/DC; 20~60V DC (±20%)
Power Supply	Power Consumption	≤ 2W
Pulse Constant		Voltage and current specifications：750V、300A，Default pulse constant：100imp/kWh
Pulse Constant		Voltage and current specifications：1000V、300A， Default pulse constant：100imp/kWh
Insulation resistance		≥ 100MΩ
Power frequency withstand voltage		Between Power supply//Switching Output// Current Input//voltage Input and Transmitting// Communication //Pulse Output//switching input AC 2 kV 1min; Between Power supply、switching output、Current Input、voltage Input AC 2 kV 1min; Between Transmitting、Communication、Pulse Output、 switching input AC 1kV 1 min;

Environment

Condition	Description&Value
Temperature	Operation: -25℃～+65℃; Storage: -40°C ~+80°C
Humidity	≤95%RH,no condensation,without corrosive gas
Altitude	≤ 2500m
