Acrel AGF-MxT DC Multi-Circuits Monitoring Device for PV Combiner Box
- Measurement: DC Current of up to 24 Circuits (with Hall Sensors); 1000v DC Voltage of Busbar
- Communication: RS485 (MODBUS-RTU)
- Application: Paired with PV Combiner Box for DC Multi-circuits Monitoring
- Temperature Monitoring: Inner Temperature of PV Combiner Box
- DI Function: 3-channel Digital Input
- Display: LCD Display(Optional)
- Installation: 35mm DIN Rail (Main Body); Perforation (Cable)
- Power Supply: 1000V DC or 1500V DC
- Standard&Certificate: CE;LVD;EMC
Features

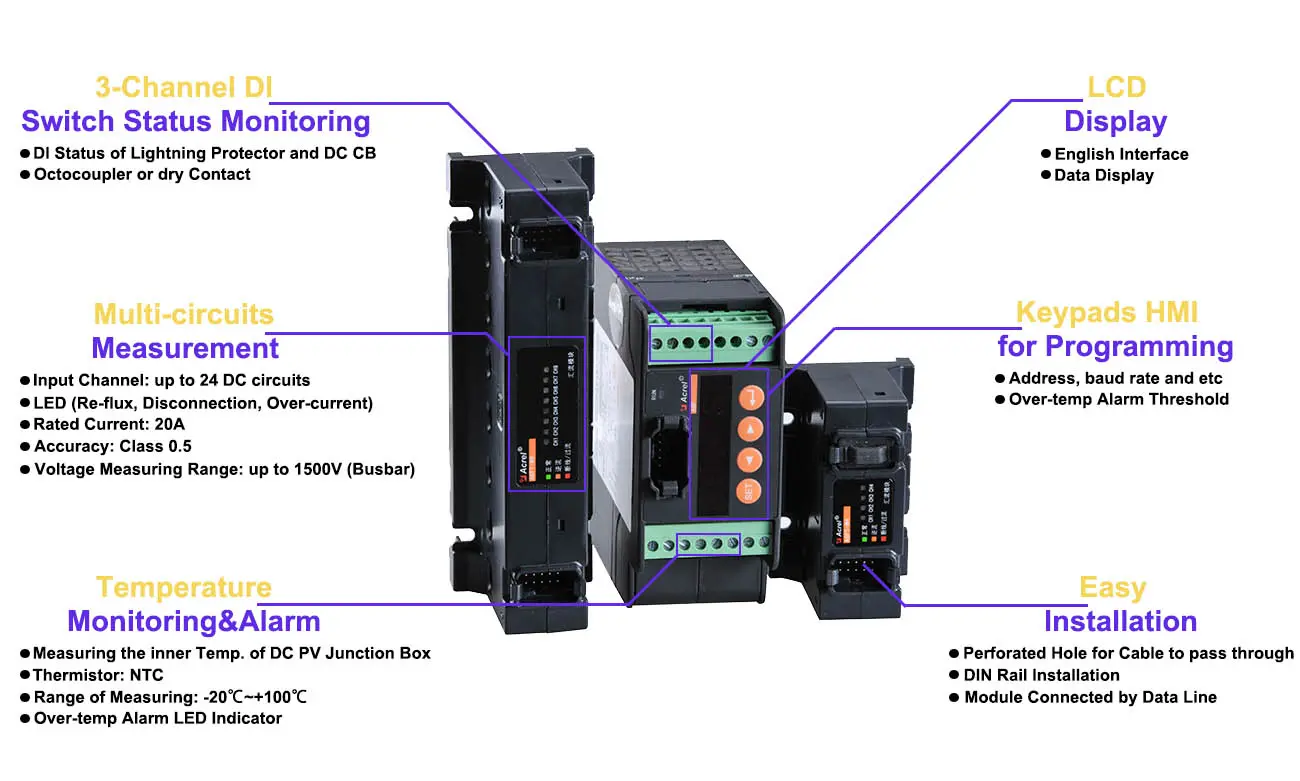

Function

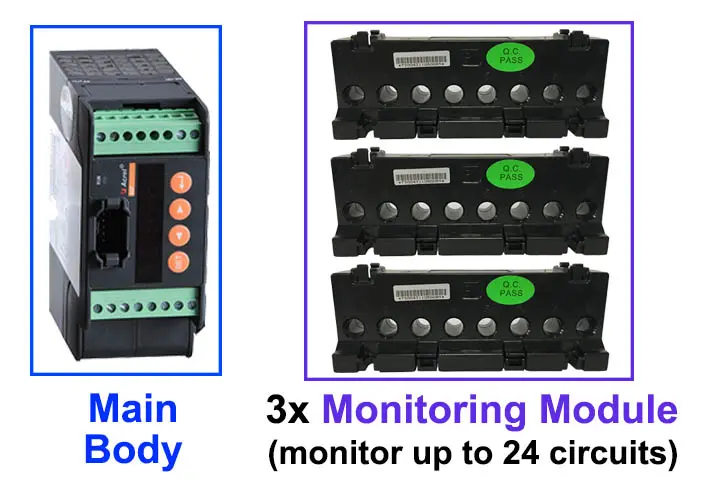

Multi-circuits Measurement up to 24 DC Circuits
● Input Channel: up to 24 Circuits
● LED Indicator for Re-flux, Disconnection, Over-current
● Rated Current: 20A
● Accuracy: 0.5 Class
● Voltage Measuring Range: up to 1500V (Busbar)

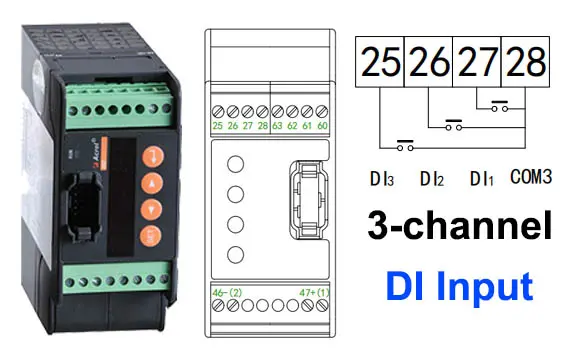

3-Channel DI Switch Status Monitoring
● DI Status of Lightning Protector and DC CB
● Octocoupler or dry Contact

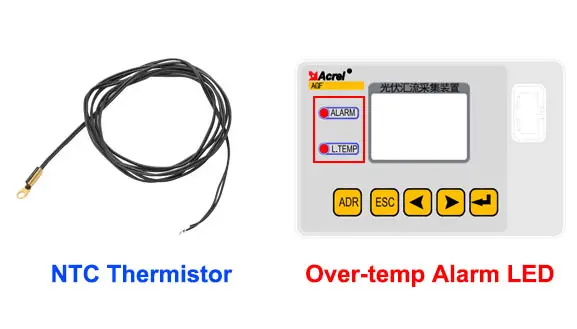

Temperature Measuring & Over-temperature Alarm Function
● Measuring the inner Temperature of DC PV Junction Box
● Thermistor: NTC
● Range of Measuring: -20℃~+100℃

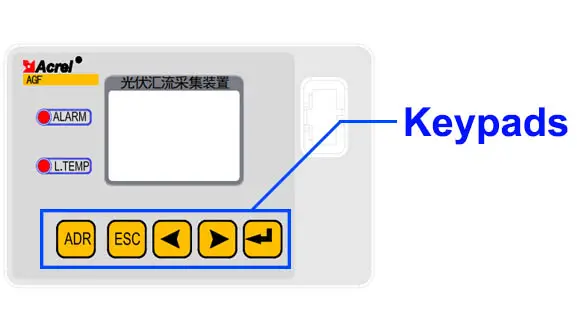

Keypads HMI for Programming
● Communication(address, baud rate and etc.)
● Over-temp Alarm Threshold

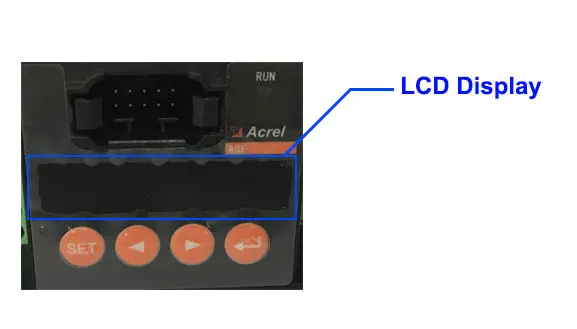

LCD Display
● English Interface
● Data Display

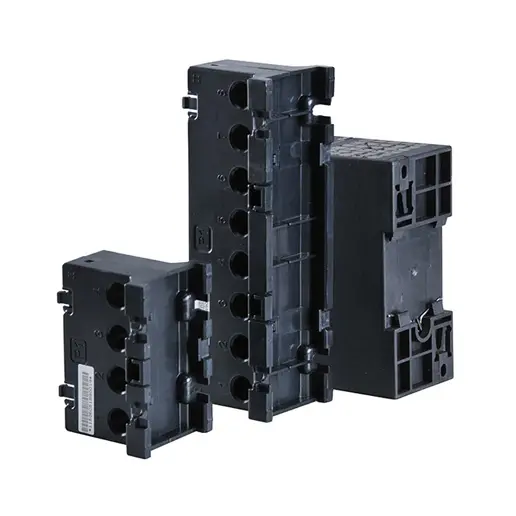

Easy Installation
● Perforated Hole for Cable to pass through
● DIN Rail Installation
● Module Connected by Data Line
Wiring Instruction

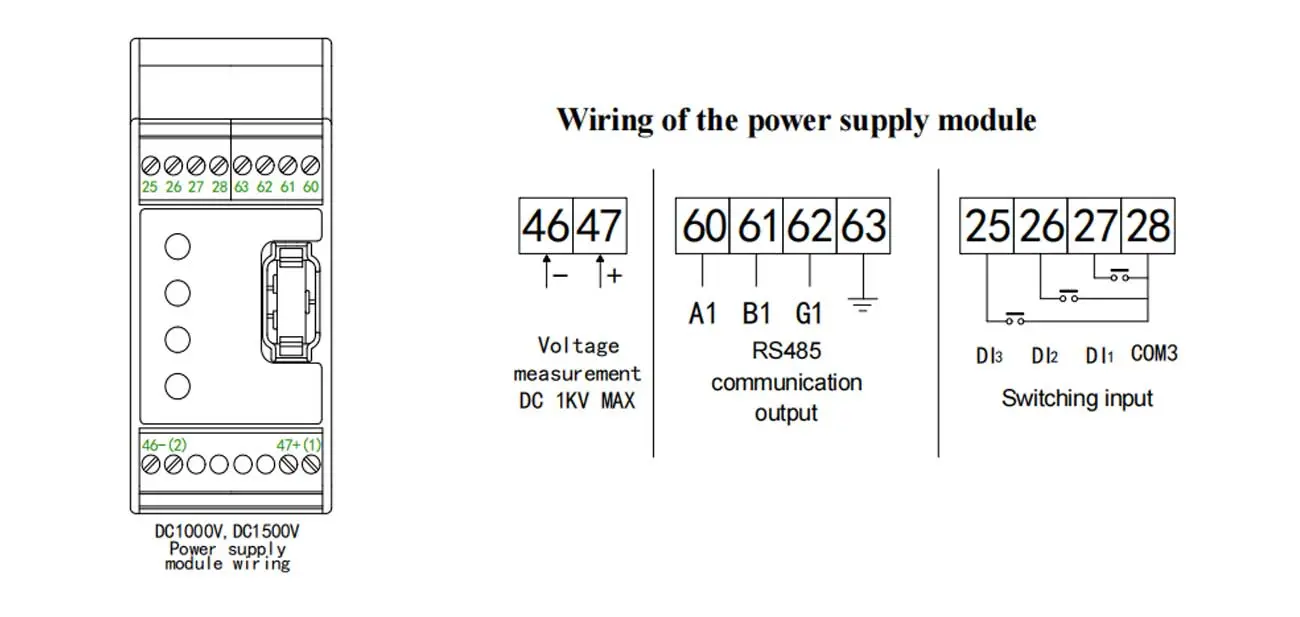

Wiring of Terminals
Installation Instruction

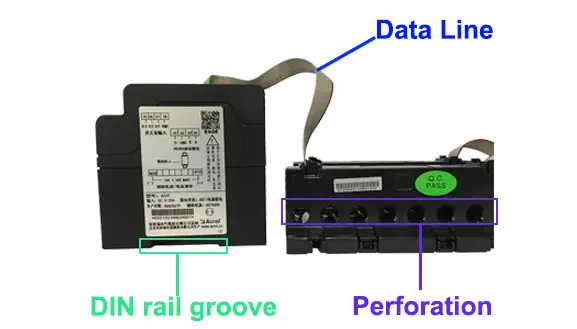

Cable Wiring through Perforation

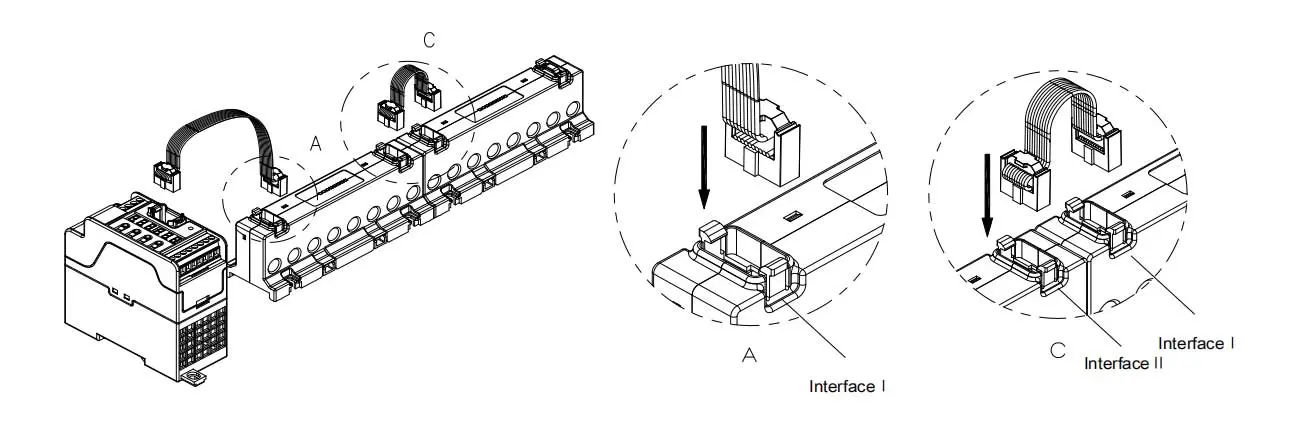

Module Connected by Data Line
Application
Solor PV Power Distribution Monitoring Solution
Practical Application of AGF-MxxT in PV Combiner Box
APV Smart Solar PV Combiner Box installed under PV Array
|
Item |
AGF-M4T |
AGF-M8T |
AGF-M12T |
AGF-M16T |
AGF-M20T |
AGF-M24T |
|
Input channels |
4 |
8 |
12 |
16 |
20 |
24 |
|
Rated current |
DC 0~20A |
|||||
|
Response time |
1s |
|||||
|
Accuracy |
0.5 class |
|||||
|
Temperature coefficient |
400ppm |
|||||
|
RS485 communication |
RS485/ModBus-RTU protocol，4800/9600/19200/38400bps |
|||||
|
Additional function |
||||||
|
Switch input |
3-way input(optocoupler or dry contact mode) |
|||||
|
General technical parameters |
||||||
|
Temperature/ Humidity |
Working temperature: -35~+65℃， humidity95%,no condensation, no corrosion gas place
*Display module work temperature:-20~+70℃ |
|||||
|
Temperature measurement function |
To measure the inner temperature of box （-20℃～100℃） |
|||||
|
Altitude |
≤3000m |
|||||
|
Insulation resistance |
≥100MΩ |
|||||
|
Industrial frequency withstand voltage |
power/communication/switching input/cell voltage input--AC 2kV/1min (When the auxiliary power supply is DC1500V, the withstand
voltage between the power supply, photocell input and other
circuit is AC 2.7kV)
Current input/power、cell voltage 、communication、switching
state—AC3.5kV/1min |
|||||
|
EMC |
GB_T 17626.2-2006； Electrostatic discharge immunity test 3rd grade, air discharge 8kV, contact discharge 6kV. |
|||||
|
|
GB_T 17626.4-2008； Electrical fast transient immunity test grade 4, common mode 4kV, difference mode 2kV |
|||||
|
|
GB_T 17626.5-2008； Surge(shock) immunity test grade 4, common mode 4kV, difference mode 2kV |
|||||
|
|
GB_T 17626.8-2006； Power frequency magnetic field immunity test grade 4 |
|||||
-
- CE of AGF-MxxT
-
- EMC of AGF-MxxT
-
- LVD of AGF-MxxT
-
AGF-MxxT Manual
