Acrel ARTU100 Series Remote Terminal Units

008618702112136

sherry@acrel.cn

8618702112136

Acrel ARTU100 Series Remote Terminal Units

ARTU100 Series Manual.pdf

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

General

The ARTU series of remote terminal units are high performance intelligent distribution components, which are applied in intelligent distribution, industrial automation and other fields.

● Communication: RS485 (MODBUS -RTU)

● Power supply: AC/DC 85~265V, DC 48V

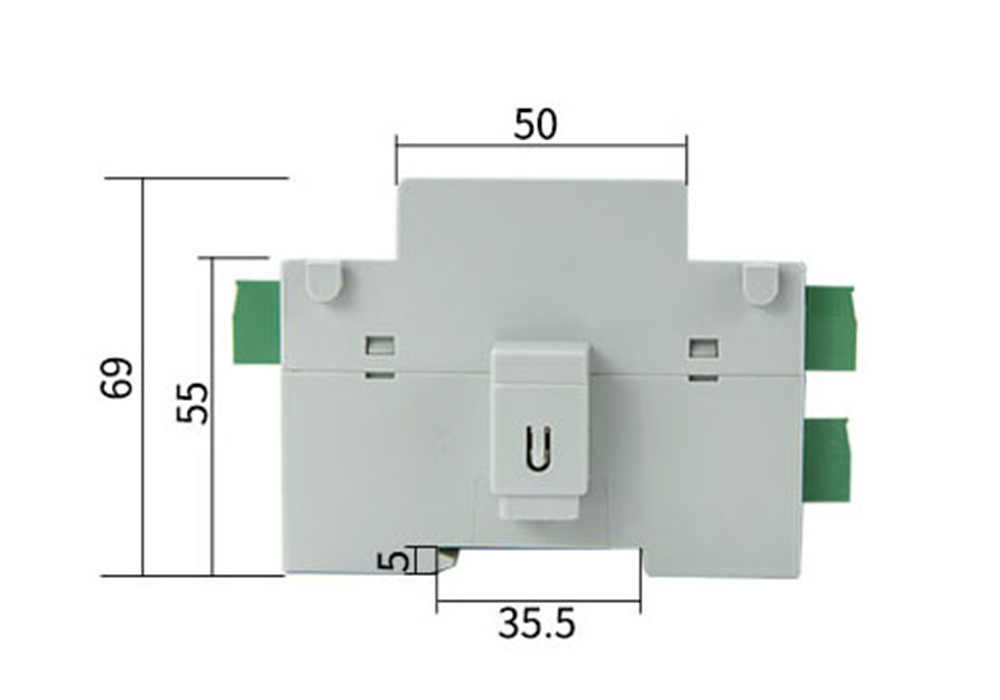

Dimensions (unit:mm)

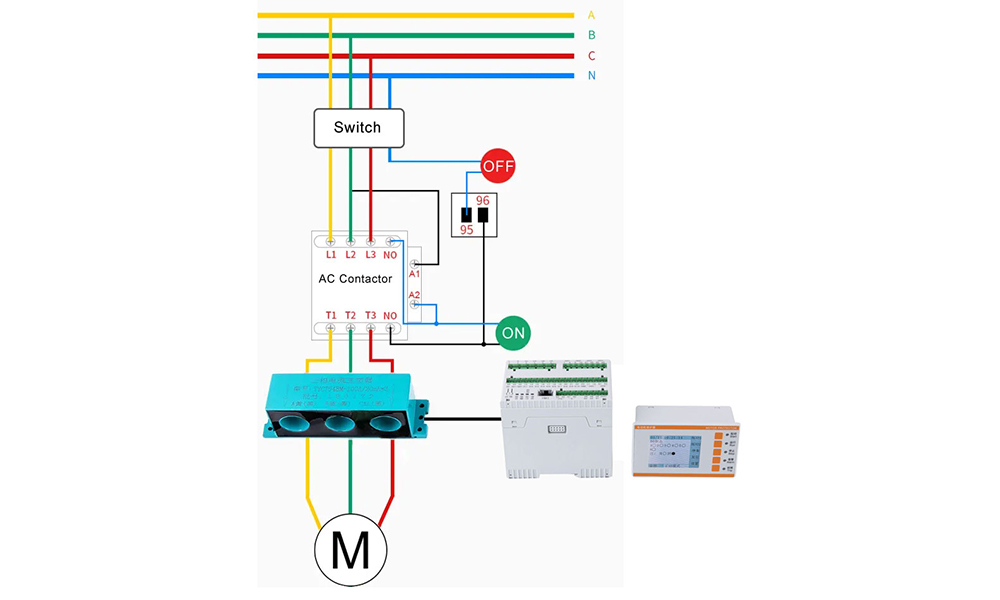

Wiring Diagram

Application

Parameters

Technical Parameters

Power supply	AC/DC 85-265V 、 DC48V
Power consumption	≤9W (excluding modules); ≤15W (including modules, up to 3 modules)
Model	ARTU100-K32	32-path DI (active/passive, optional)
	ARTU100-K16	16-path DI (active/passive, optional)
	ARTU100-KJ8	path DI (active/passive, optional); 8-path DO Output mode: relay normally-open contact output contact capacity; AC 250V/3A DC 30V/3A
Communication	485 communication	RS485 interface	path 485 communication; Modbus-RTU protocol; baud-rate 1200 ~ 38400bps
OTHER	Dial switch	10 bits
	Indicator light	20 indicator lights

Module Select

Model	MKA84	Switch input	18 channel DI (active AC 220V)
	MJ12	Switch output	12 channel DO output way: Relay normally open contact output
	MA84	Analog input	8 channel AI; 0-5V,1-5V,4-20mA,0-20mA Selected
	MA84	Analog output	4 channel A0; 0-5V,1-5V,4-20mA,0-20mA Selected
	CE	Ethernet communication	Modbus-TCP

Download

ARTU100 Manual
