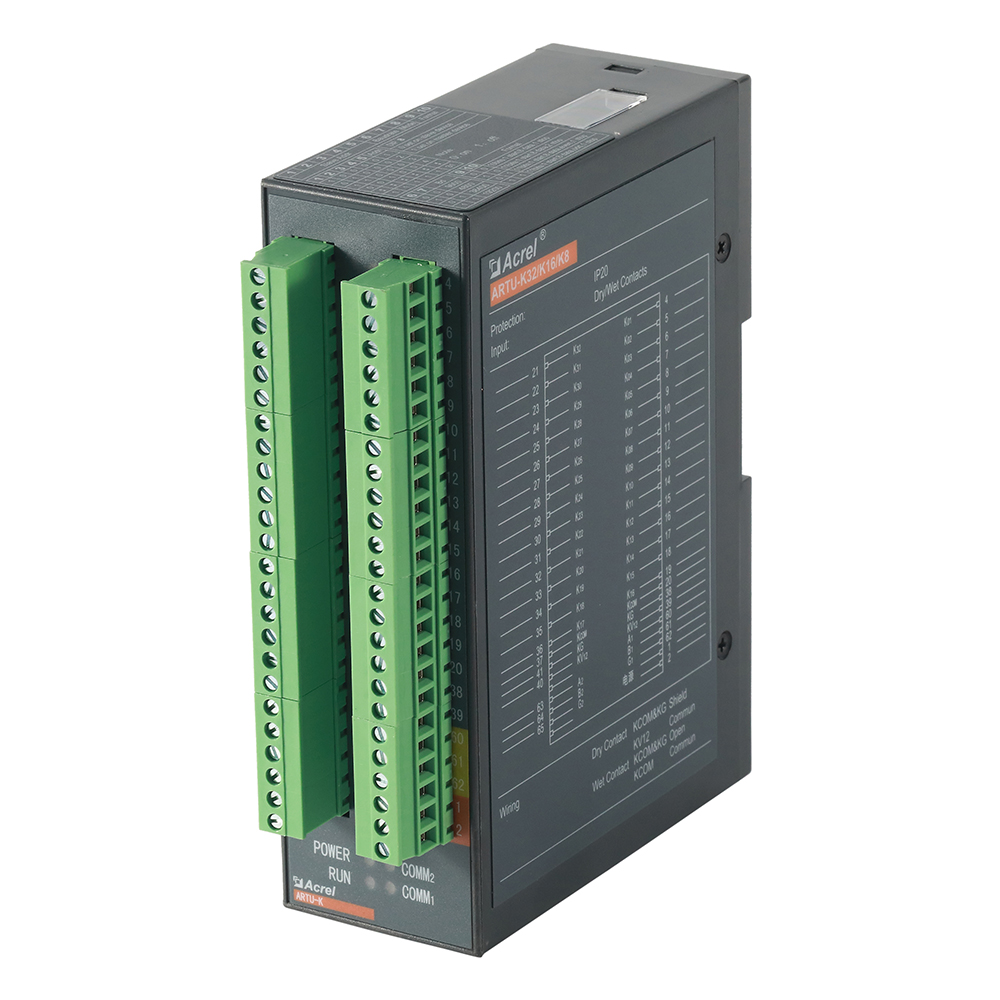

Acrel ARTU-K Series Remote Signal Unit

008618702112136

sherry@acrel.cn

8618702112136

Acrel ARTU-K Series Remote Signal Unit

ARTU-K32 manual.pdf

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

General

ARTU remote signal unit is a switch acquisition unit specially developed for intelligent power distribution, industrial automation and other fields, which is used to acquire switch-volume signals and convert them into digital signals through communication and data exchange of upper computer monitoring system.

Auxiliary power supply:

24VDC, AC85 ~ 275V or DC100 ~ 350V

Frequency: <500Hz

Power consumption: ≤5W

Communication: RS485(Modbus-RTU)

Installation:

DIN rail 35mm

Dimension(L*W*H)：

160*50*110mm

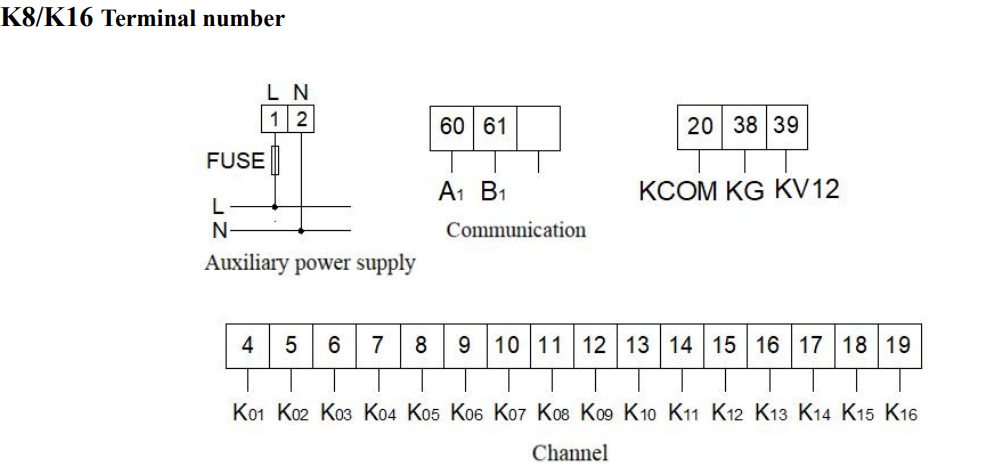

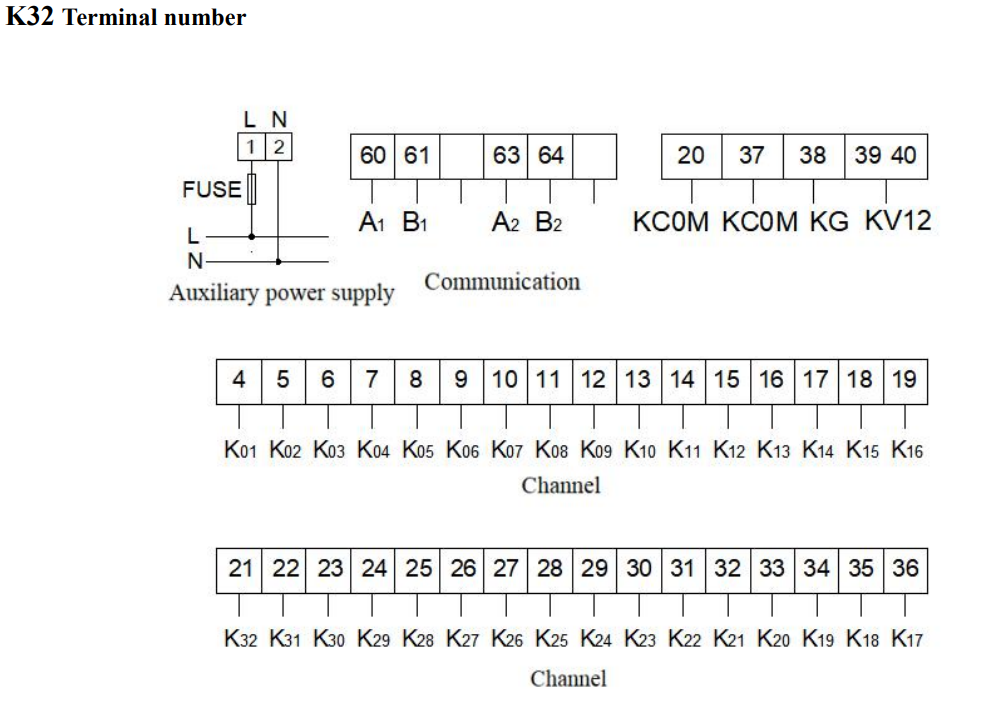

Wiring

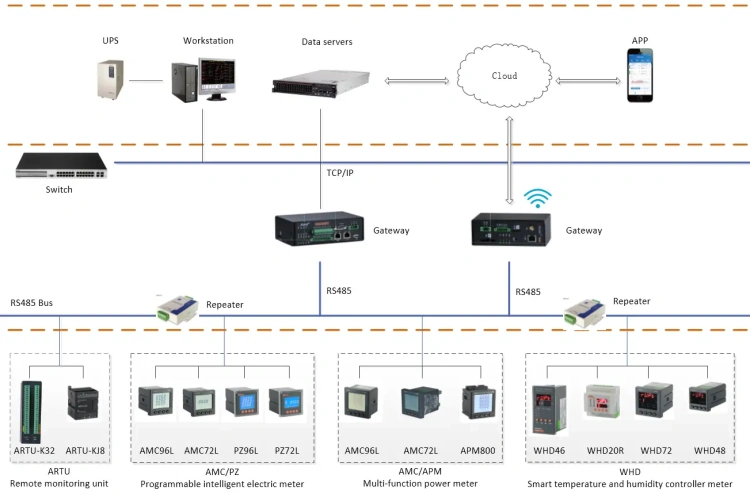

Application

Parameters

Technical Parameters

Performance	Indicators
Input circuit	8/16/32
Input mode	Active wet contact (DC12V) or passive dry contact
Bus way	Half duplex RS485 (Modbus RTU), three-core shielding wire is recommended
Bus capacity	≤32
Switch event resolution	The ability to distinguish successive displacement of multiple contacts. When the displacement interval of any two contacts is greater than 1 millisecond, The ability to differentiate units (less than 2ms) is reflected in the SOE
Remote scanning speed	The scanning time of all channels for one week is 1ms
Remote signal debouncing time	All channels adopt a unified debuffing time of 1ms(configurable)
Event sequence logging (SOE) capacity	1600 groups

Model Selection

Model	Function
ARTU100-K32	32-channel Switch quantity acquisition, 2-channel RS485 communication (Modbus-RTU), SOE event records
ARTU100-K16	16-channel Switch quantity acquisition, 1-channel RS485 communication (Modbus-RTU), SOE event records
ARTU100-K8	8-channel Switch quantity acquisition, 1-channel RS485 communication (Modbus-RTU), SOE event records

Download

ARTU-K32 Manual
