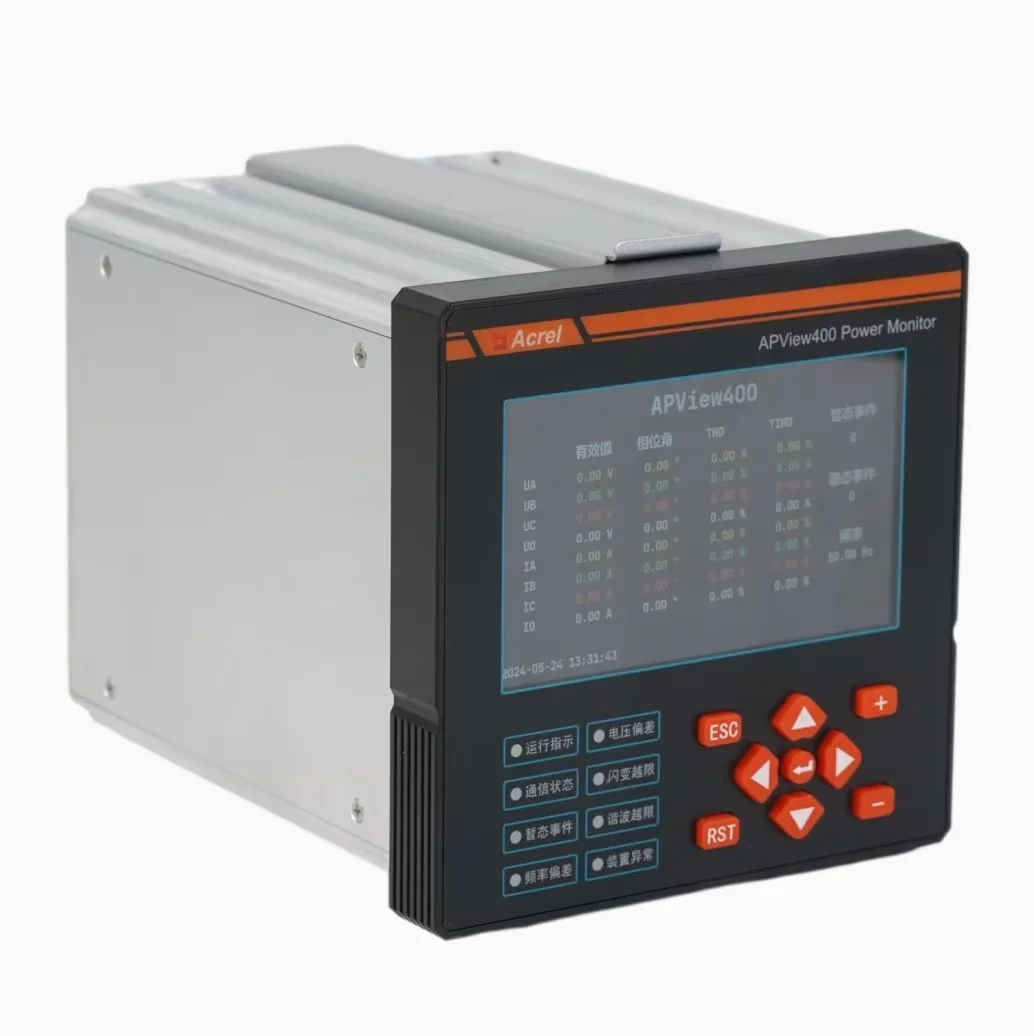

APView400 series Power Quality Monitor

● Full Power Measurement

● Power Quality Monitoring

● High-performance hardware platform

● Various interfaces available

● Reliability Design

008618702112136

sherry@acrel.cn

8618702112136

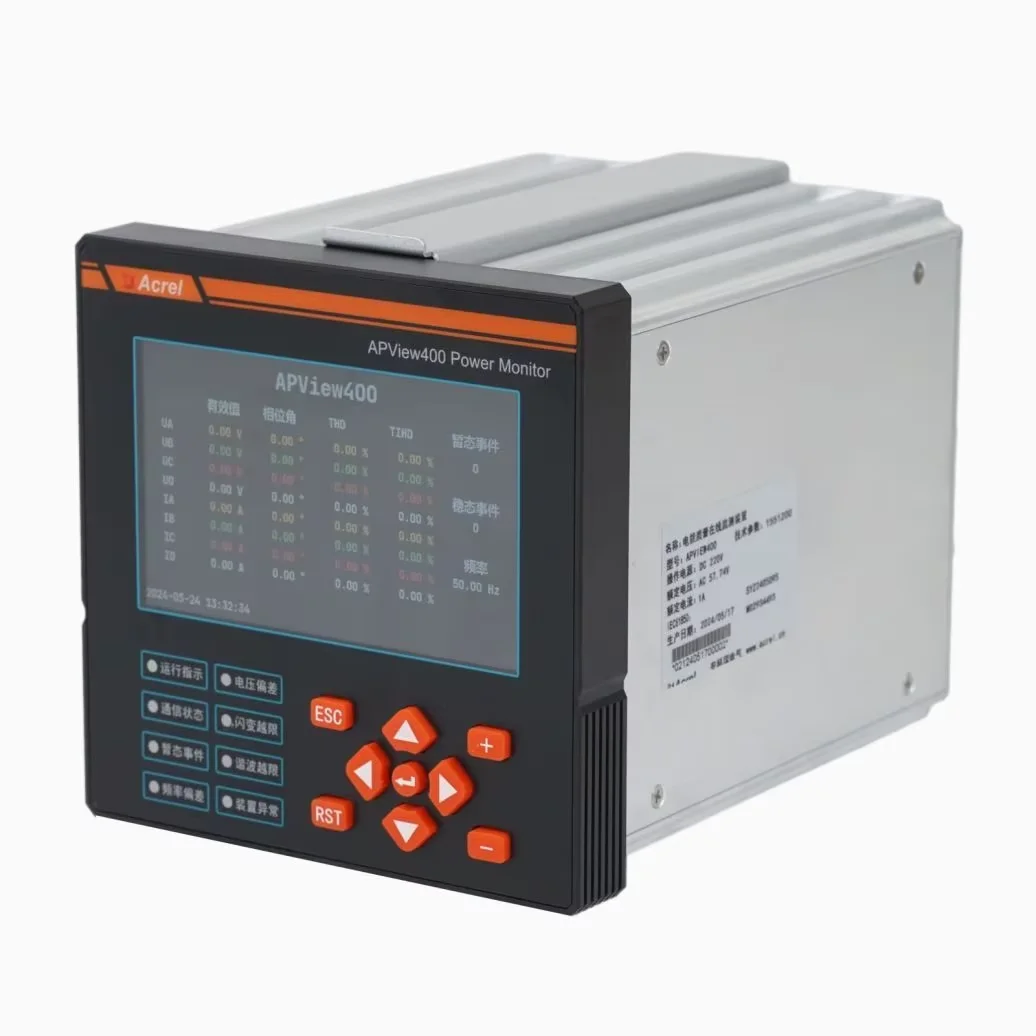

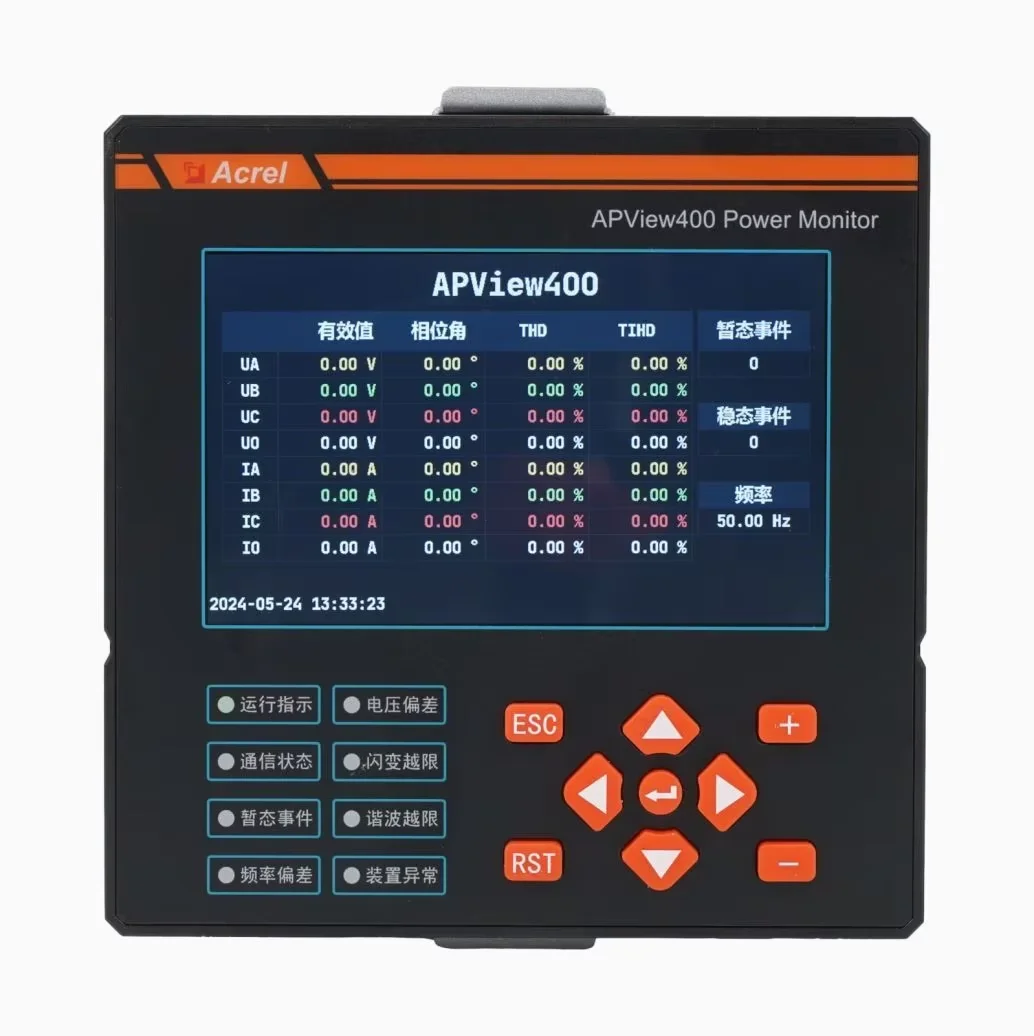

APView400 series Power Quality Monitor

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Overview

Power quality monitor APView400 integrates a high-performance multi-core platform and an embedded operating system,

and monitors power quality indexes stipulated in IEC61000-4-30 Testing and measurement techniques -Power quality measurement methods,

and provides various functions such as harmonic analysis, waveform sampling, voltage dips/swells/interruptions monitoring, flicker monitoring ,

voltage unbalance monitoring, event recording and measurement control.

It meets IEC 61000-4-30 Class A Edition 3.1 with respect to standardization of power quality index measurement methods, measurement accuracy of index parameters,

clock synchronization, event alarms and others and satisfy the demands of power quality monitoring of power supply system up to 110kV.

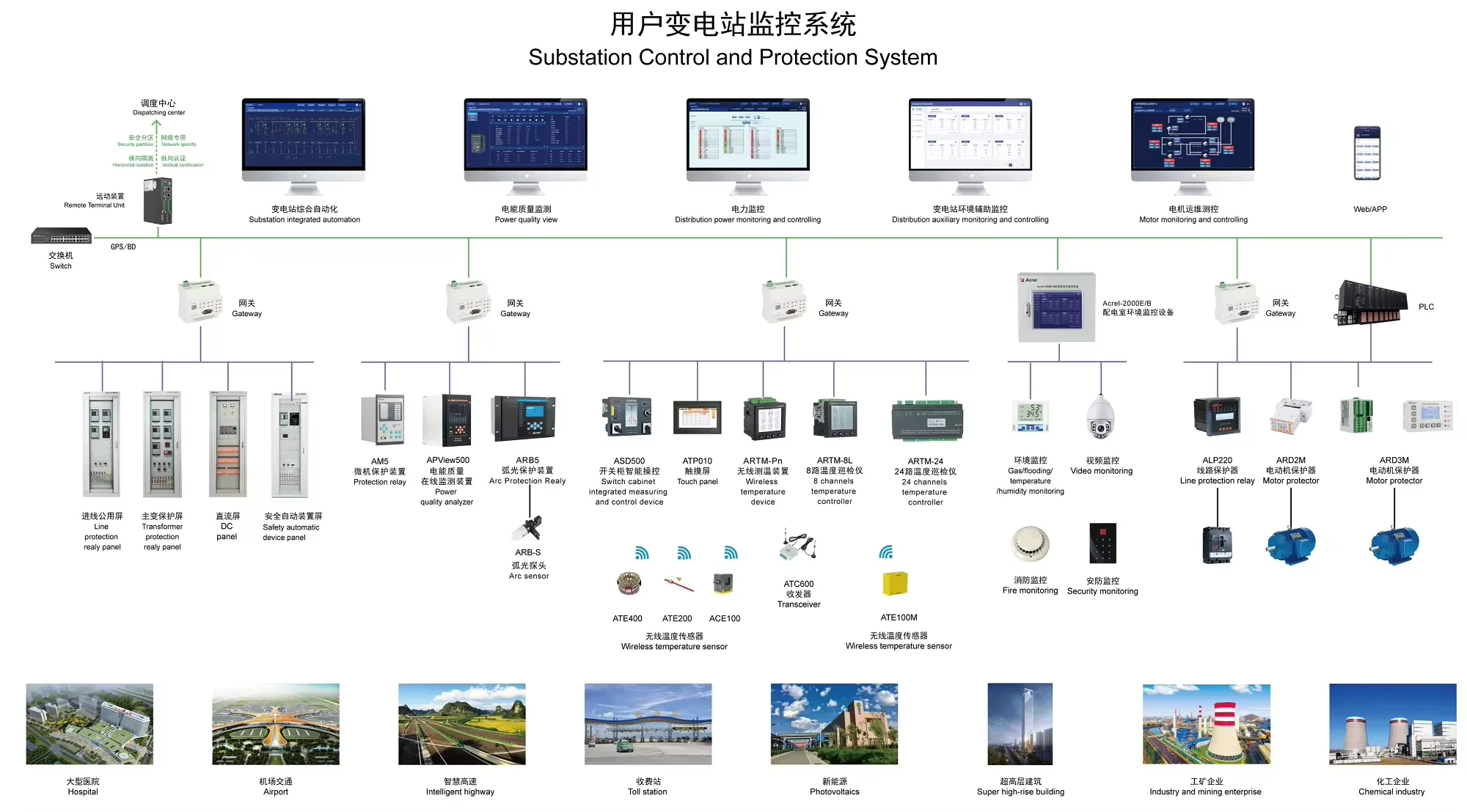

Therefore, it is widely applicable for power quality monitoring in chemical industry, steel industry, metallurgy industry,
hospitals, data centers, transportation, construction industry and other industries.

Features

Communication

2 RS485, support the Modbus-RTU protocol and IRIG-B

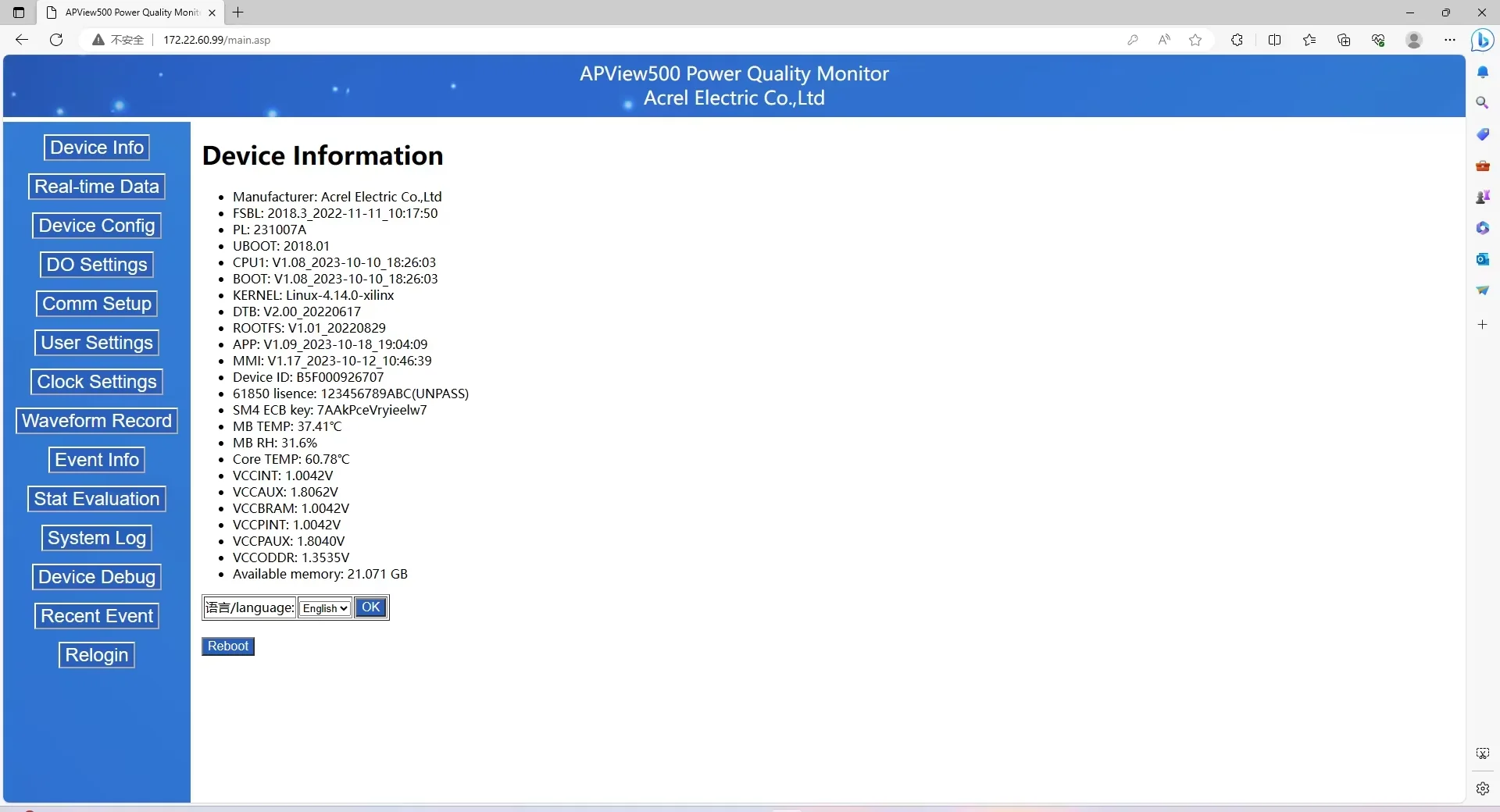

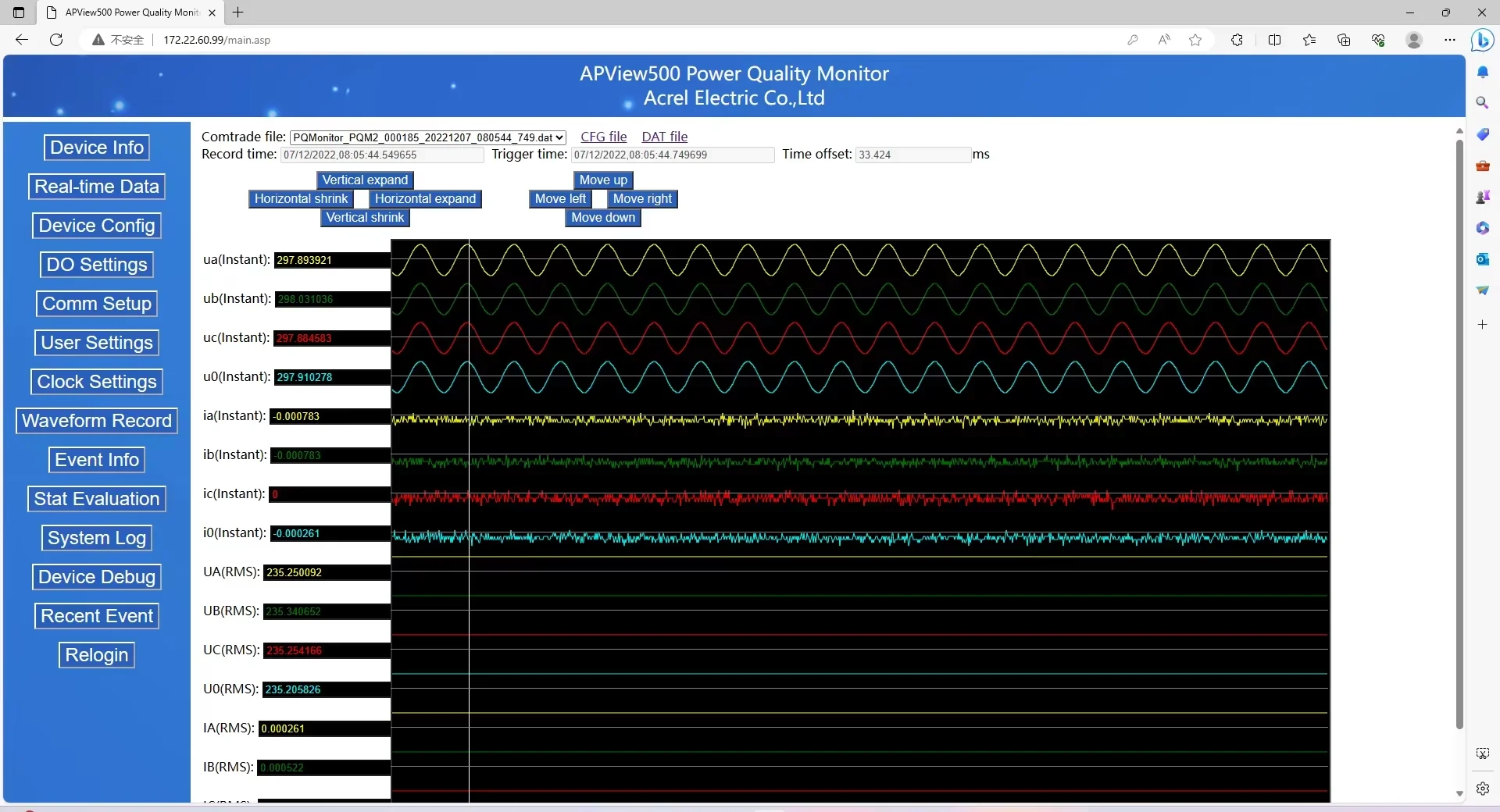

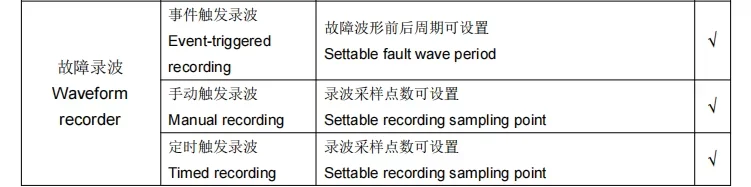

Waveform recorder

Settable fault wave period
Settable recording sampling point
Settable recording sampling point
Settable recording sampling point (supported by IEC61850 protocol)

Rated U and I

Voltage:AC 57.74V/100V, or 220V/380v, or 400V/690V；Current：AC 5A, support 2 mm2 line access.

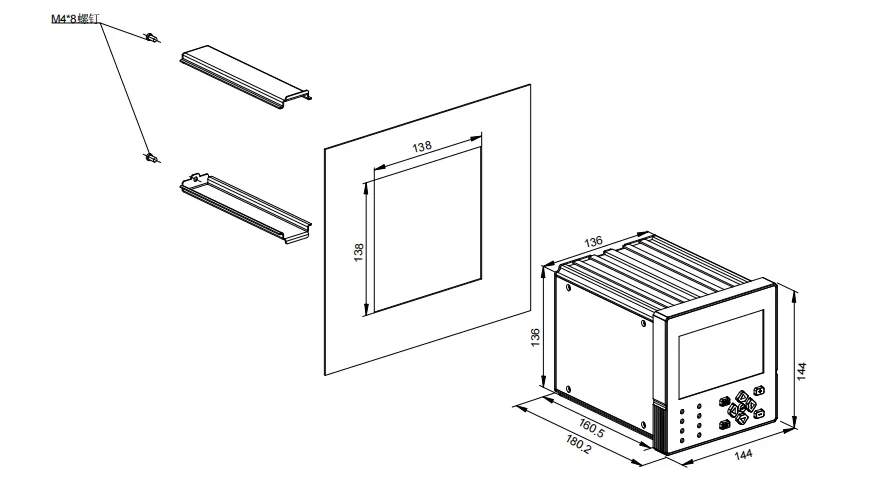

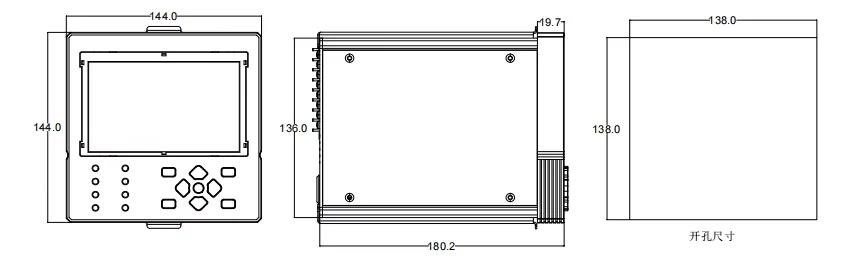

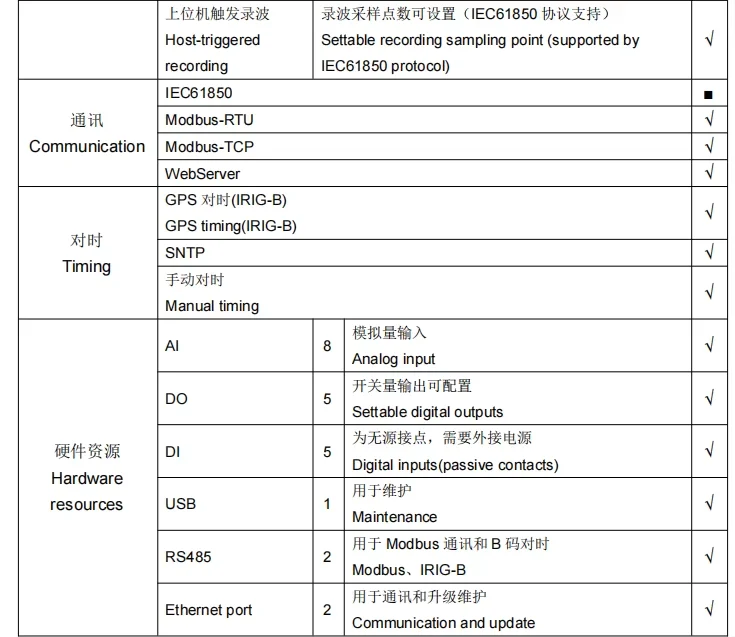

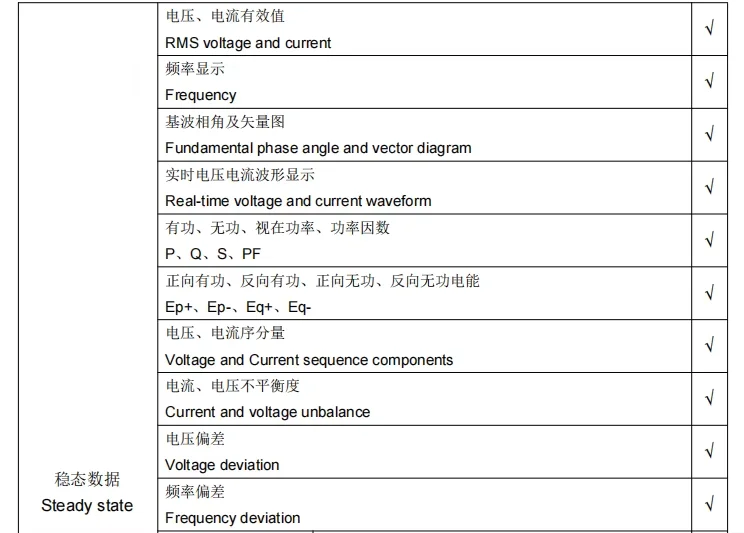

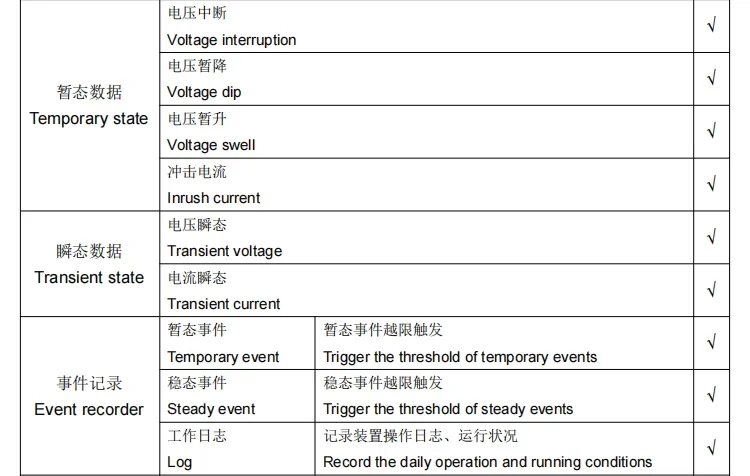

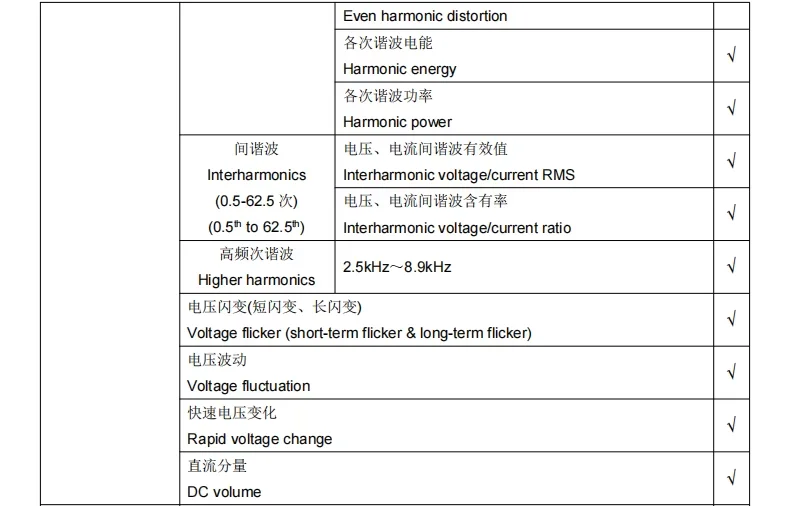

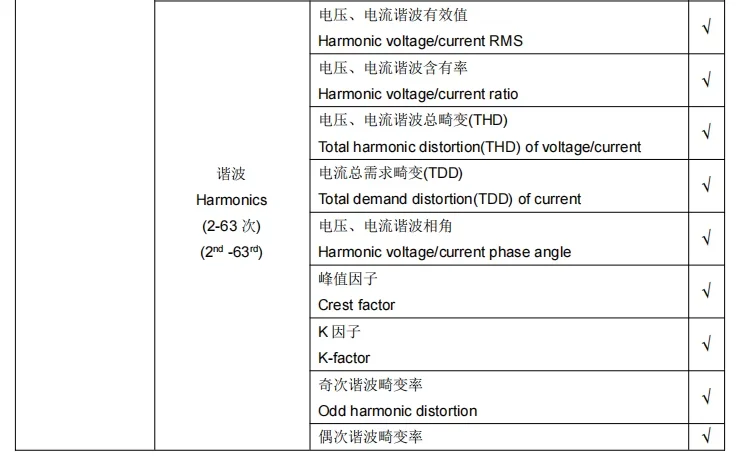

Function

Product model		APView400 online power Quality Analyzer
Rated Voltage		AC 57.74/100V,220/380V,400/690V
Input Current		5A
Communication interface		USB1,RS4852,Ethernet port *2

The device employs a multi-core heterogeneous SoC as its central chip, with dual Arm cores based on an asymmetric processor architecture.

Arm1 is equipped with an embedded Linux operating system, tasked with executing communication, storage,
statistics, analysis, and other functions. Arm2 operates bare-metal, dedicated to high-real-time tasks such as sampling and computation.

The device samples at a rate of
1024 points per cycle and utilizes a 32GB solid-state Class A storage component for program and data storage, with all chips selected to meet wide-temperature
industrial-grade specifications. The device is integrated with a large 800*480 dot matrix color LCD, enabling on-site viewing of events, waveforms, and other data.

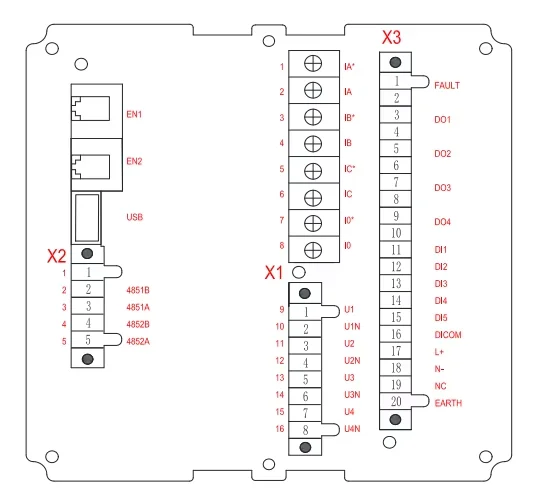

4 channels of AC voltage；

4 channels of AC current；
5 DO，5 DI ；
2 RS485, support the Modbus-RTU protocol and IRIG-B;
2 Ethernet port, support Modbus-TCP、IEC61850 MMS、FTP and device update ;
1 USB,used for device updates .

Note: √- standard function; ■- option; × - not available

Both hardware and software of this product have continuous and comprehensive self-test function and good anti-interference capacity.

This product has been certified in a number of EMC tests like electric fast transient, electrostatic discharge and surge anti-interference and complied with the relevant standards.
