Acrel AM5 Medium Voltage Protection Relay

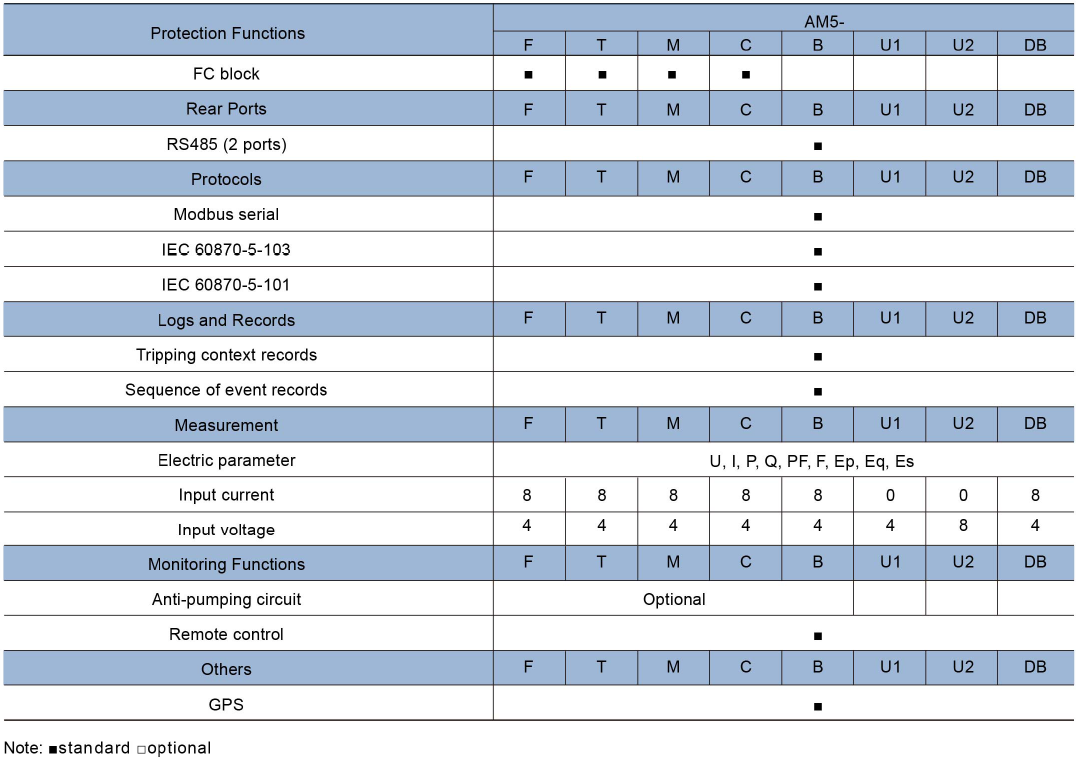

A complete set of protection, related to the application;
8 current input, 4 voltage input, 16 DI, 10 DO;
Auxiliary power supply adapts with AC220V, DC220V, DC110V, AC110V;
2 RS485 serial communication, IEC 60870-5-101, IEC60870-5-103 and Modbus-RTU;
1 RS232 for user update;
1 GPS for GPS timing;
More than 200 sequence of event records, more than 400 system logs, and more than 10 seconds tripping context records;
Powerful graphic programmable Logic.

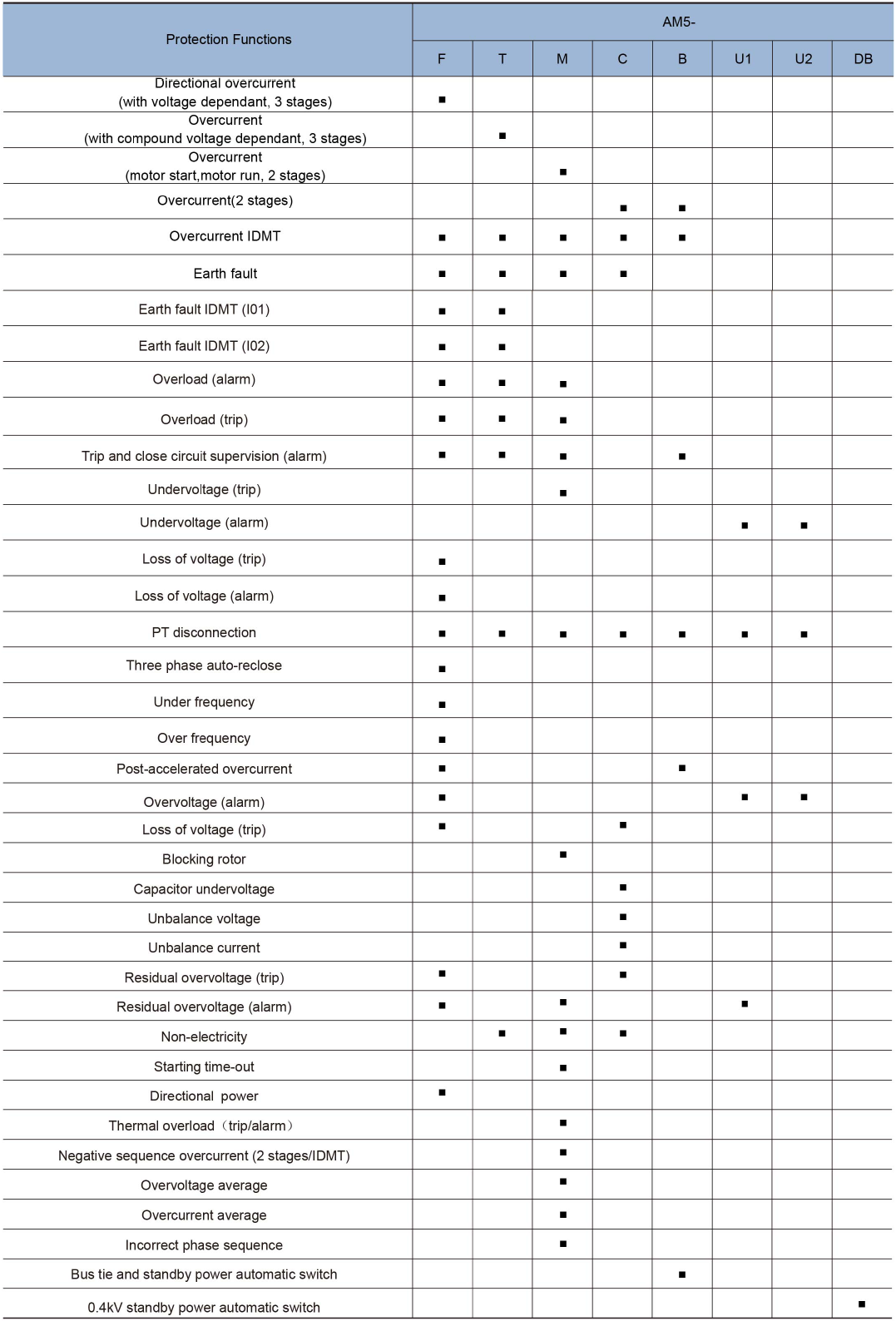

Feeder protection; Transformer protection; Motor protection; Capacitor protection; Voltage protection; Bus tie protection.

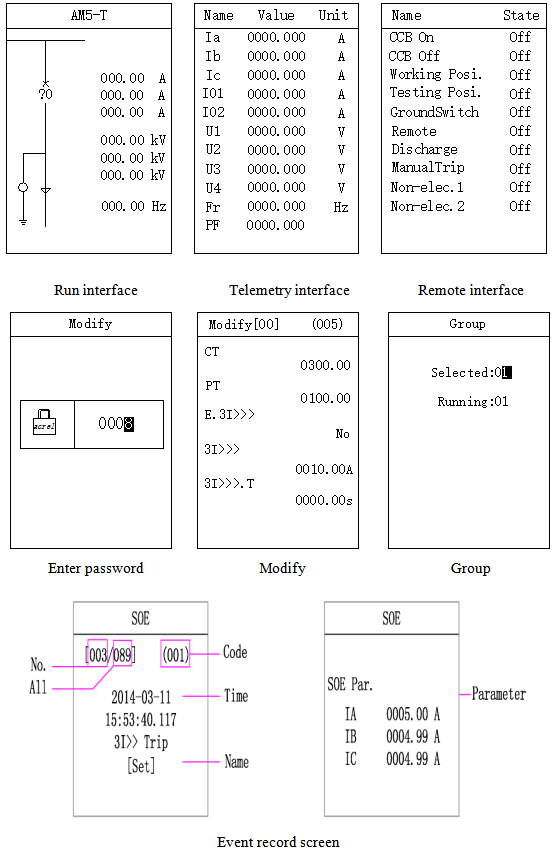

Measurement
RMS current values; RMS voltage values; frequency; Power factor; RMS active power.
Control functions
Remote control; Local control; Programmable switch-gear interlocking
-
CE of AM
-
AM5 Manual
