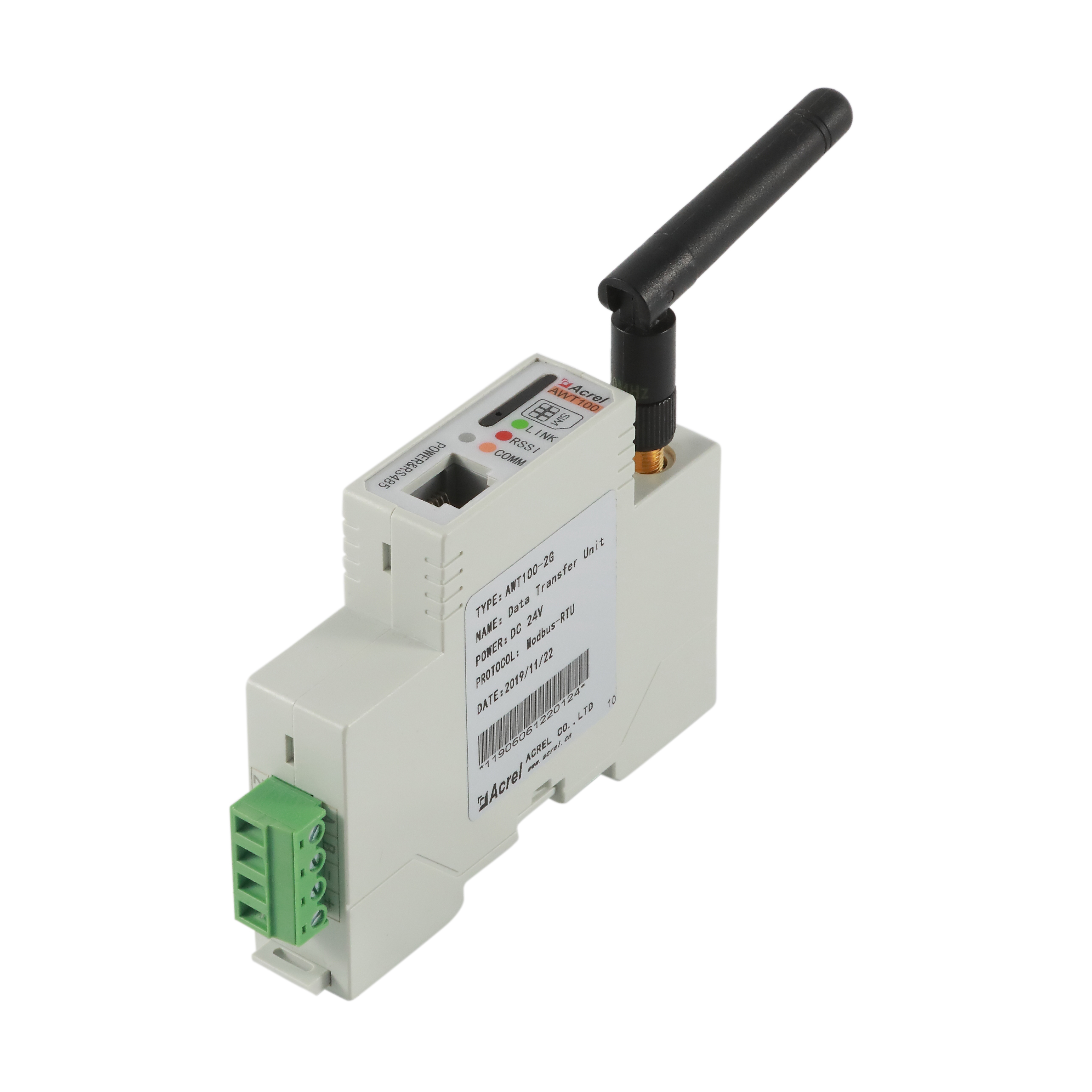

Acrel AWT100-4GHW IoT Smart 4G Gateway

Upstream Methods:4G LTE (Support Global Frequency Bands)
Upstream Protocol: MODBUS-TCP, MQTT
Downstream Methods:RS485 Interface
Downstream Protocol:MODBUS-RTU
Support:Up to 20~25 Acrel Devices with RS485 (MODBUS-RTU)
Power Supply:24Vdc (default); 85~265Vac/Vdc (via AWT100-POW Module)
Standard&Certificate: CE-RED; IEC; LVD; EMC

008618702112136

sherry@acrel.cn

8618702112136

Acrel AWT100-4GHW IoT Smart 4G Gateway

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

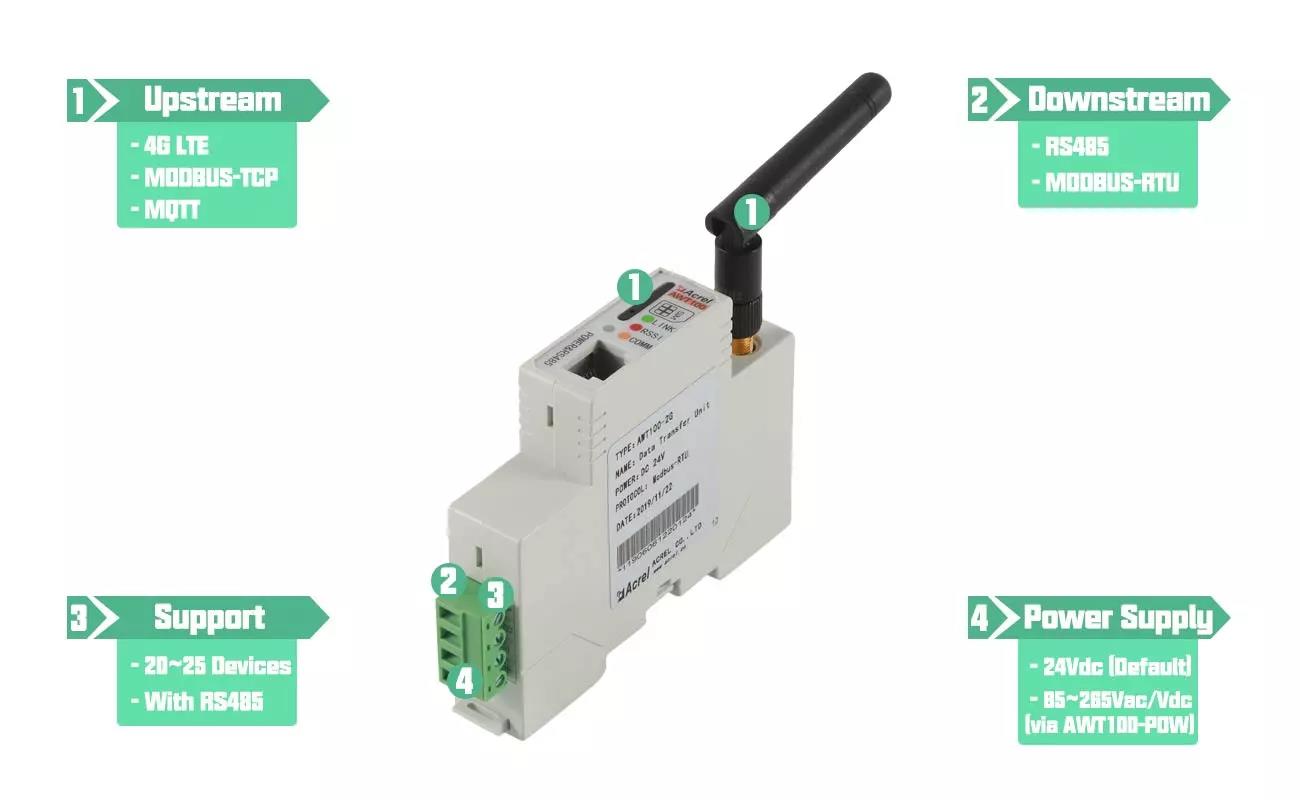

Main Feature

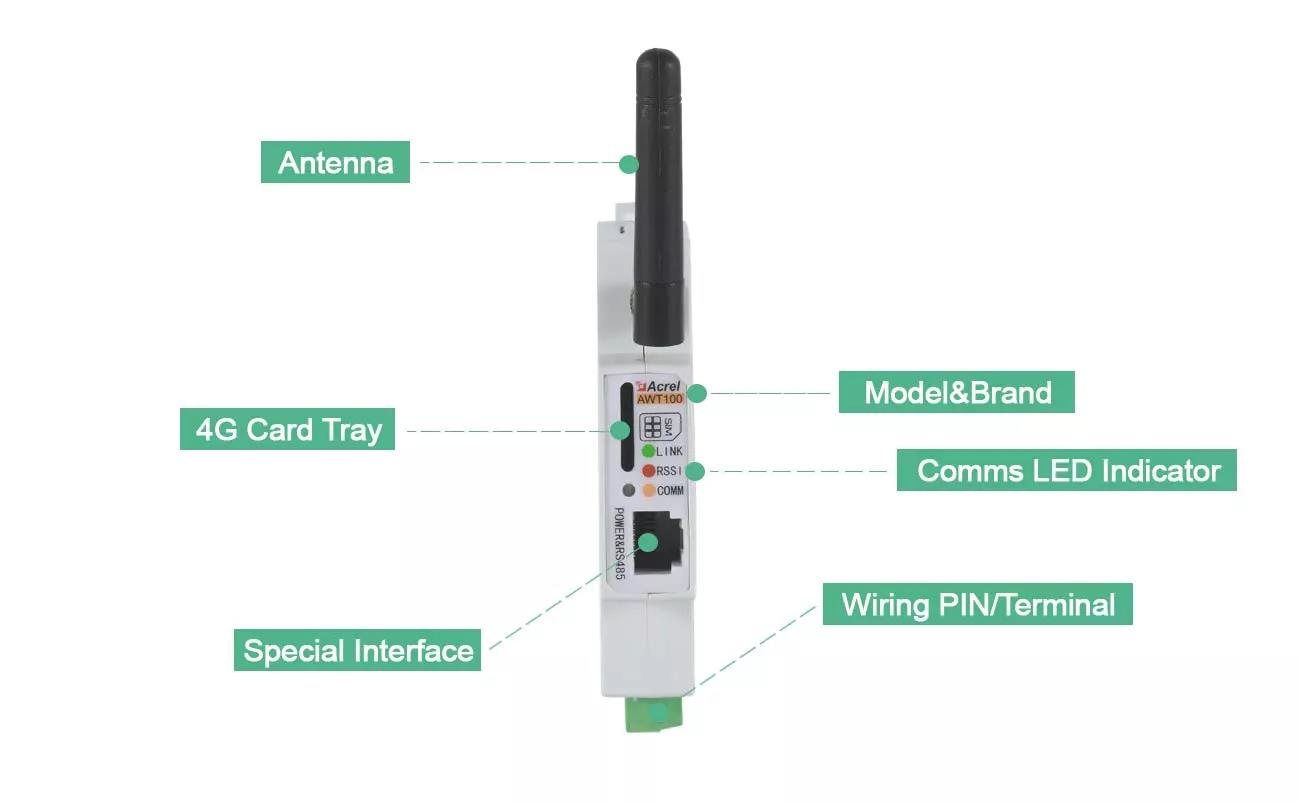

Panel Overview

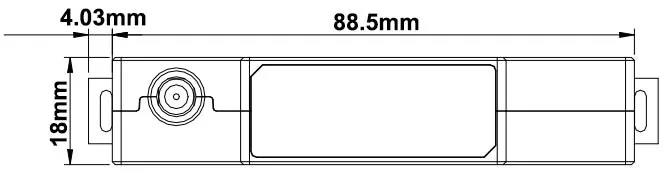

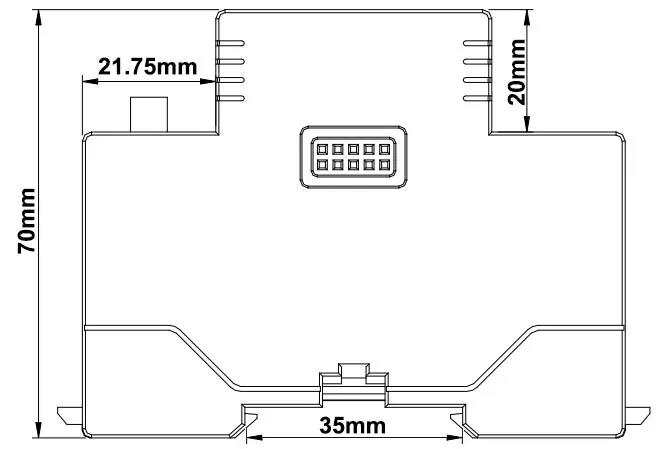

Dimension(unit:mm)

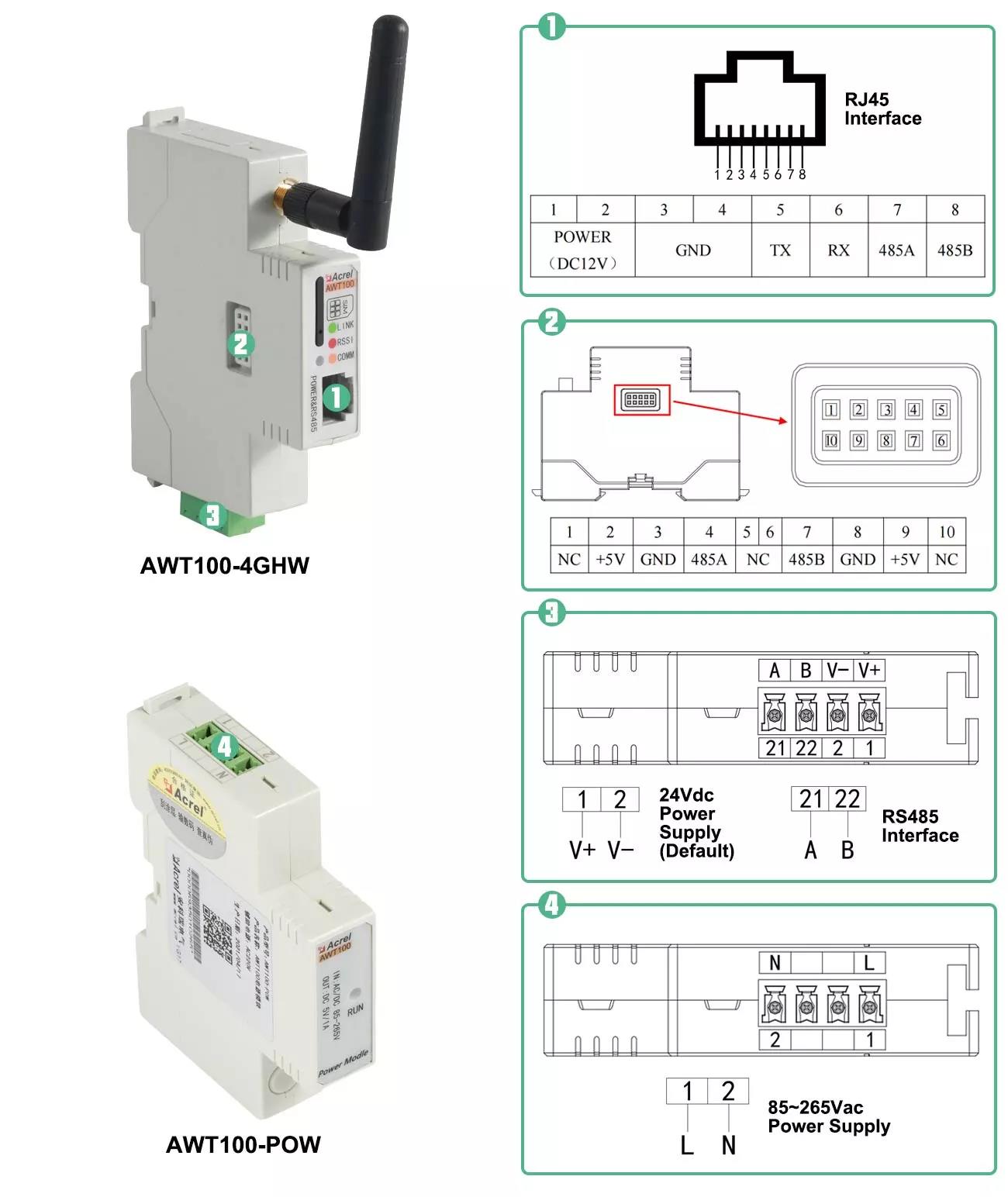

Wiring Instruction

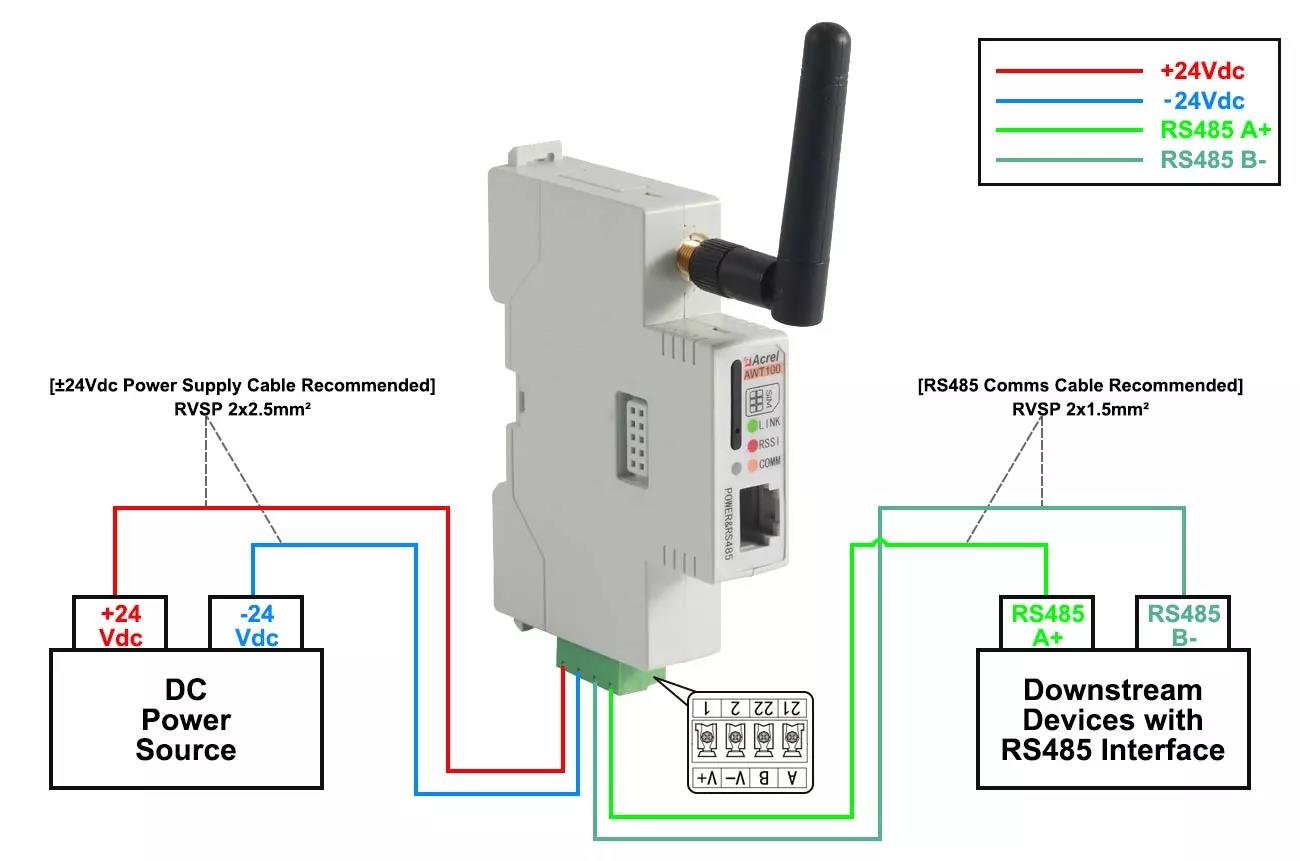

Wiring Diagram

Wiring Diagram of AWT100-4GHW (24Vdc Power Supply via default Configuration)

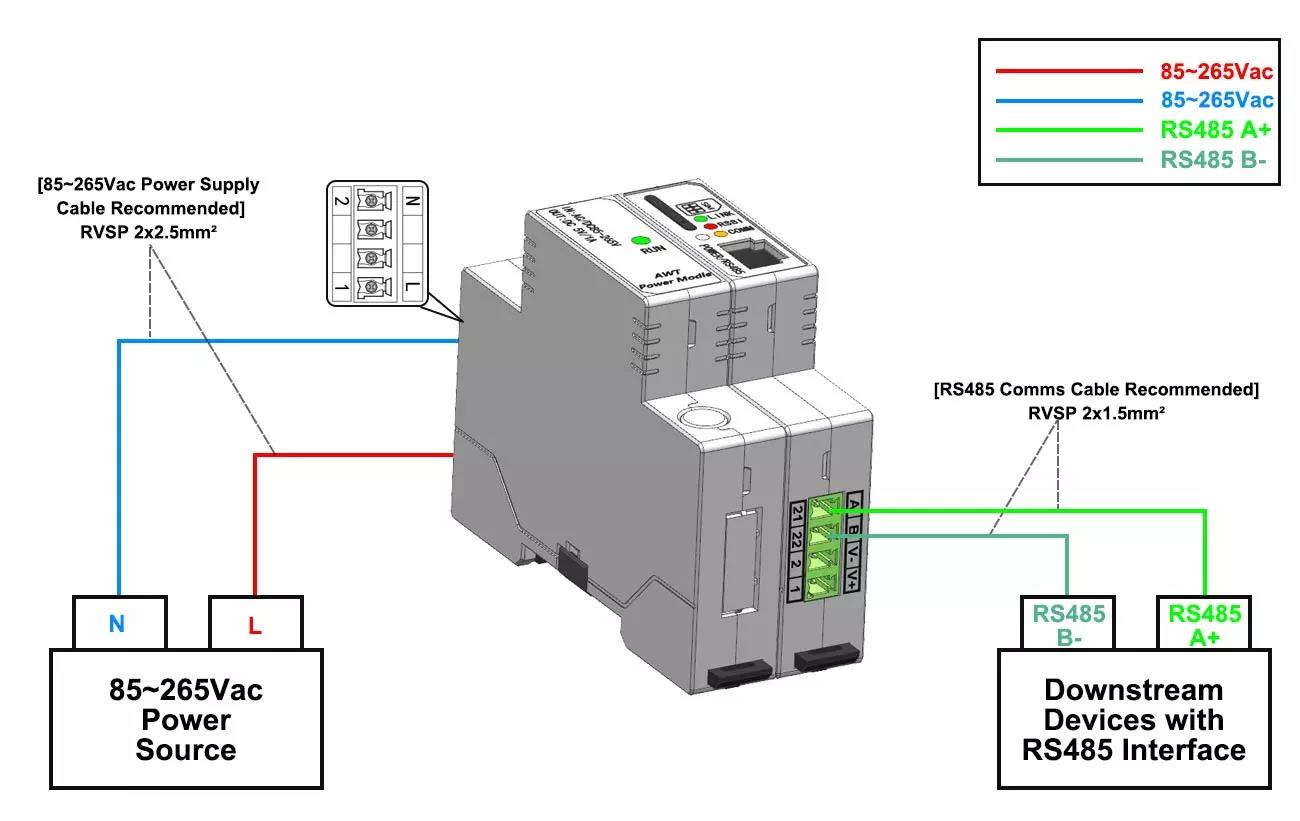

Wiring Diagram of AWT100-4GHW (85~265Vac Power Supply via AWT100-POW Power Moduel)

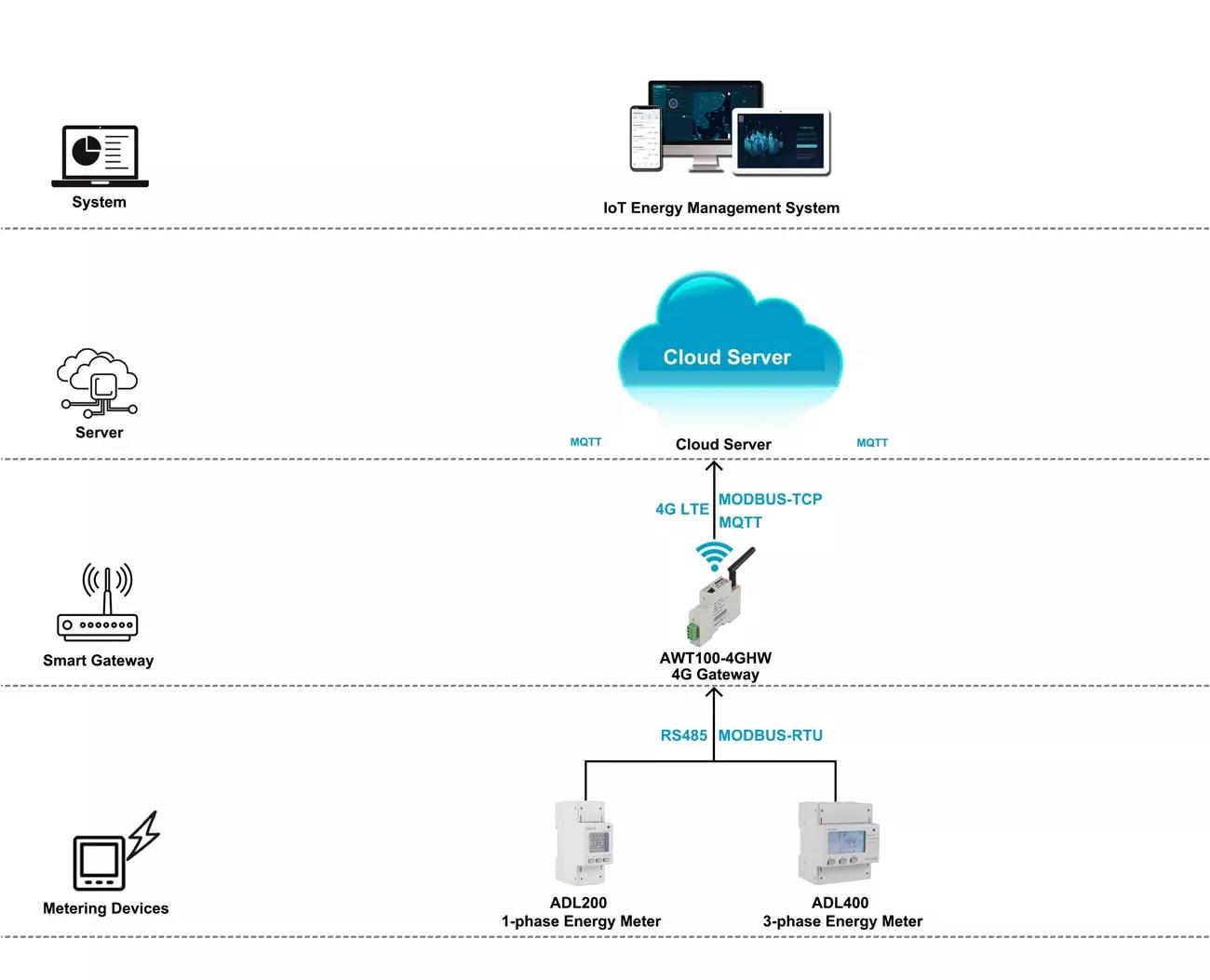

Application

Technical parameter

Parameter Name	AWT100-4G	AWT100-NB	AWT100-2G	AWT100-LoRa AWT100-LW
Working frequency	LTE-FDD B1 B3 B5 B8 LTE-TDD B34 B38 B39 B40 B41 CDMA B1 B5 B8 GSM 900/1800M	H-FDD B1 B3 B8 B5 B20	GSM 850 EGSM 900 DCS 1800 PCS 1900	LoRa 460 510MHz
Transmission rate	LTE-FDD Maximum downlink rate 150Mbps Maximum uplink rate 50Mbps LTE-TDD Maximum downlink rate130Mbps Maximum uplink rate 35Mbps CDMA Maximum downlink rate 3.1Mbps Maximum uplink rate 1.8Mbps GSM Maximum downlink rate 107Kbps Maximum uplink rate 85.6Kbps	Maximum downlink rate 25.2Kbps Maximum uplink rate 15.62Kbps	GPRS Maximum downlink rate 85.6kbps Maximum uplink rate 85.6kbps	LoRa 62.5kbps
Downlink	RS485 Communication
Uplink	4G Communication	NB-IoT Communication	2G Communication	LoRa Communication
SIM card voltage	3V，1.8V			/
Working current	Static power：≤1W，Transient power consumption：≤3W			Static power：≤0.5W， Transient power consumption：≤1W
Antenna interface	50Ω/SMA（Faucet）
Serial port type	RS-485
Baud rate	4800bps、9600bps、19200bps、38400bps（default 9600bps）
Operating Voltage	DC24V或AC/DC220V^①
Operating temperature	-10℃～55℃
Storage temperature	-40℃～85℃
Humidity range	0～95% Non-condensing

Parameter Name	AWT100-LoRa	AWT100-LW	AWT100-LW868	AWT100-LW923	AWT100-LORAHW
Working frequency	460～510MHz	470MHZ	863-870MHZ	920-928MHZ	860-935MHZ
Transmission rate	LoRa 62.5kbps
Downlink	RS485 Communication
Uplink	LoRa Communication
Working current	Static power：≤0.5W，Transient power consumption：≤1W
Antenna interface	50Ω/SMA（Faucet）
Serial port type	RS-485
Baud rate	4800bps、9600bps、19200bps、38400bps（default 9600bps）
Operating Voltage	DC24V或AC/DC220V^①
Operating temperature	-10℃～55℃
Storage temperature	-40℃～85℃
Humidity range	0～95% Non-condensing

Parameter Name	AWT100-GPS	AWT100-WiFi	AWT100-CE	AWT100-DP
Work	Positioning accuracy: 2.5-5m	support 2.4G frequency band WiFi rate: 115200bps	Ethernet rate 10/100M adaptive	Profibus address: 1~125. (Note)
Downlink	RS485 Communication
Uplink	GPS positioning	WiFi wireless	Ethernet communication	Profibus communication
Working current	Static power consumption：≤1W，transient power consumption：≤3W			Static power consumption：≤0.5W， transient power consumption：≤1W
interface	50Ω/SMA（Faucet）		RJ45	DP9
Serial port type	RS-485 Communication
Baud rate	4800bps、9600bps、19200bps、38400bps（Default 9600bps）
Operating Voltage	DC24V or AC/DC220V^①
Operating temperature	-10℃～55℃
Storage temperature	-40℃～85℃
Humidity range	0～95% Non-condensing

Download

CE
EMC
IEC
LVD
AWT100-4GHW Manual
