Acrel AMC48L-AI 49*49mm AC Single Phase Amp Panel Meter

Acrel AMC48L-AI 49*49mm AC Single Phase Amp Panel Meter

Current measurement

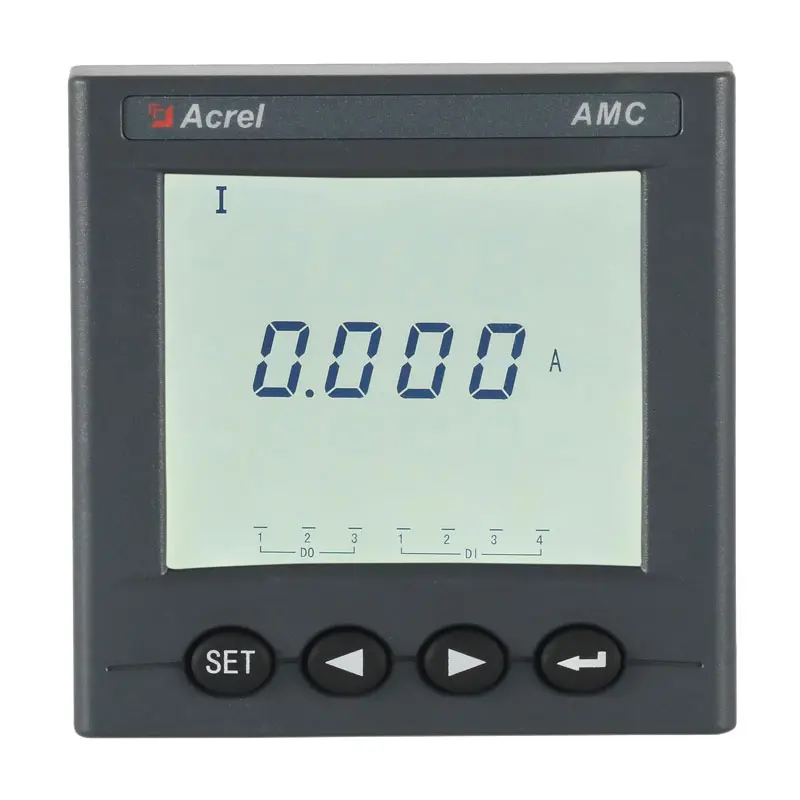

LCD Display

Single Phase Ammeter

Input:1A or 5A

008618702112136

Richard@acrel-electric.com

8618701850814

Acrel AMC48L-AI 49*49mm AC Single Phase Amp Panel Meter

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

General

AMC series programmable intelligent meters,adopting AC sampling technology,can directly or indirectly measure electric voltage and current of single phase or three phase grid. It can be used for local display,and connecting industrial control device to form measuring control system.

Function
Accuracy : Active energy:Class 0.5
Frequency : 45-65Hz
Auxiliary power supply: AC/DC 85-265V
Rated current : AC 5A or 1A
Consumption:
Current : Power consumption< 0.5VA;
Auxiliary power supply: Power consumption≤10VA
Optional Function:
RS485 communication (Modbus-RTU)
4-20mA analog output

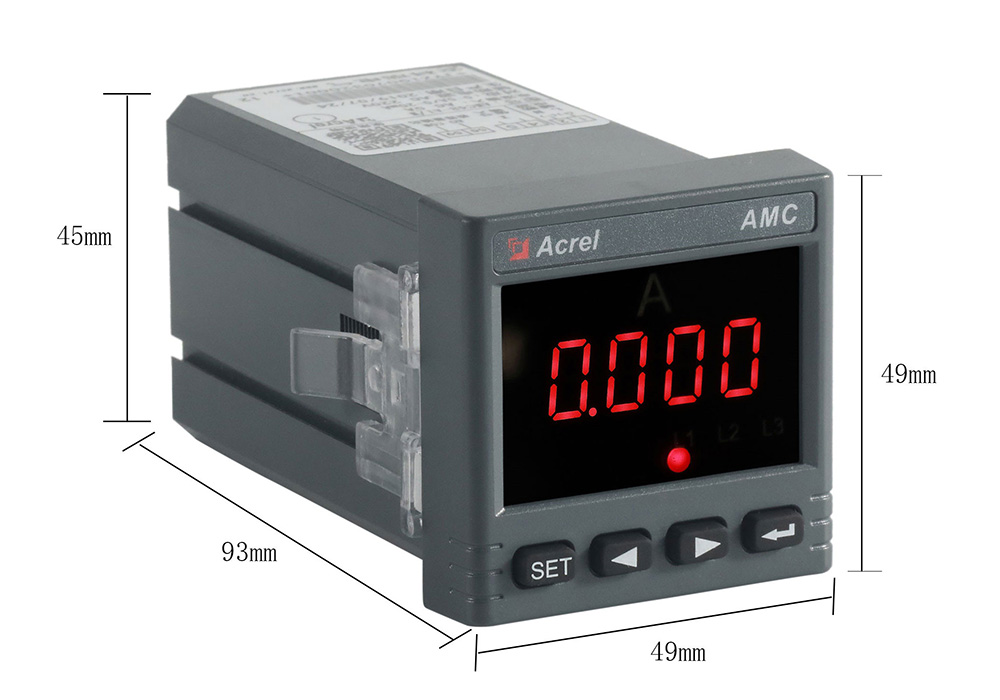

Dimension (Unit:mm)

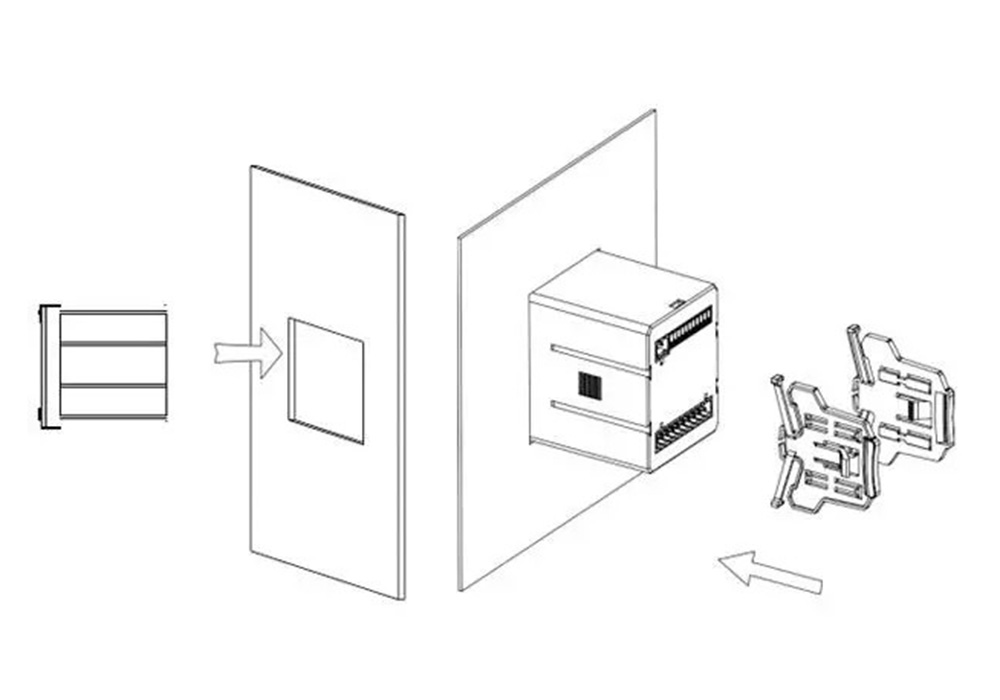

Installation Method

1)Opening in fixed distribution cabinet
2)Take out the instrument and take out the clip
3) The instrument is mounted from the Front to the mounting hole
4) Insert the instrument clasp to secure the instrument

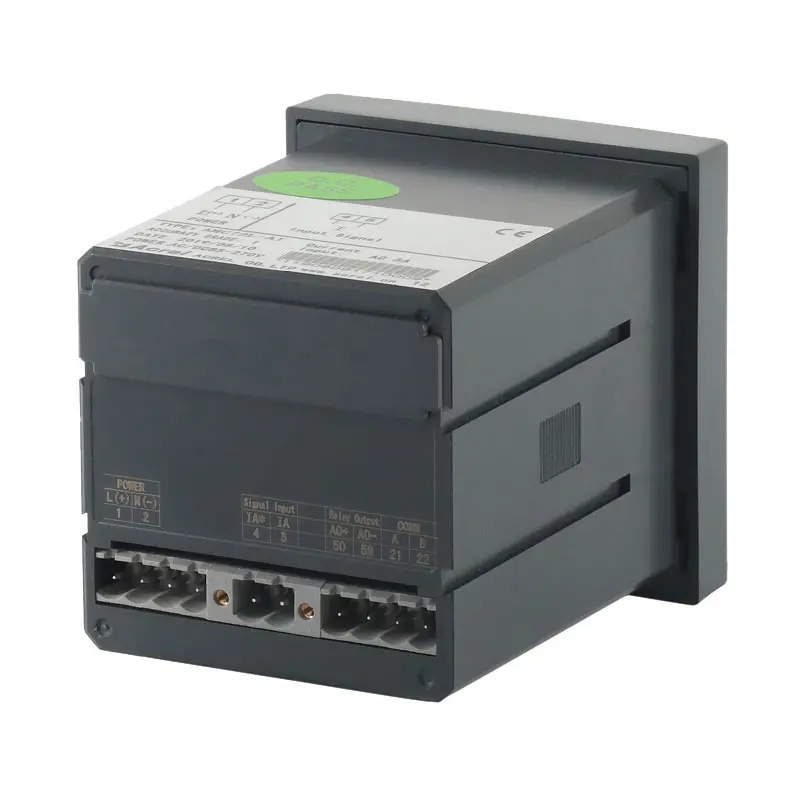

Wiring Diagram

Application

Parameters

Technical Parameters		Value
Input	Connection	Single phase-2 wire,3 phase-3 wire,3 phase 4-wire
	Frequency	45-65Hz
	Voltage	Rating: Single-phase:AC 100V、400V Three-phase:AC 3x57.7V/100V(100V)、3x220V/380V(400V) 3x380V/660V(660V)(96 size only) Note:72 profile not suitable for high voltage application
		Overload:1.2 fold rating(continuous):2 fold rating for 1 second
		Power consumption:＜0.5VA
	Current	Rating:AC 1A、5A
		Overload:1.2 fold rating(continuous):10 fold rating for 1 second
		Power consumption:＜0.5VA
Output	Electric energy	Output mode:open-collector photo-coupler pulse
	Electric energy	Pulse constant:10000imp/kWh(settable),see wiring diagram for details
	Communication	RS485 port,Modbus-RTU protocol,DLT645 protocol(versions 09 and 97),baud rate 1200-38400
Function	Switching input	Dry contact input,built-in power supply
	Switching output	Output mode:Relay normally open contact output
	Switching output	Contact capacity:AC 250V/3A、DC 30V/3A
	Analog output	1-5V,4-20mA
Accuracy Class		Frequency:0.05Hz,Current、Voltage;0.2 class,Reactive Power:1.0 class,Reactice Electric energy:1.0 class active Power:0.5 class,active electric energy:0.5 class,2-31th harmonic measurement:±1%
Power Supply		AC/DC 85-265V Power consumption≤10VA
Security	Power frequency withstand voltage	Between Power supply//Switching Output//Current input//voltage input and Transmitting//Communication//Pulse Output//switching input AC 2kV 1min; Between Power supply、switching output、Current input、voltage input AC 2kV 1min; Between Transmitting、Communication、Pulse Output、switching input AC 1kV 1 min;
Security	Insulation resistance	Input、Output end to machine enclosure＞100MΩ
Environment	Temperature	work:-25℃~+65℃ storage:-40℃~+80℃
	Humidity	≤93%RH Non-condensing
	Altitude	≤2500m

Download

CE of AMC
RoHS of AMC
AMC48L-AI Manual
