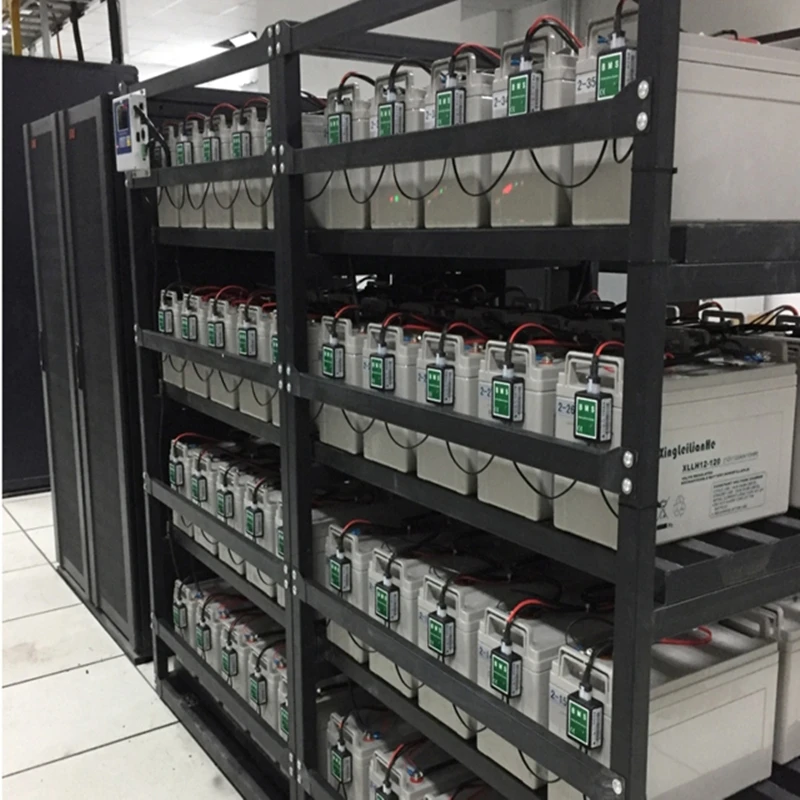

Use Acrel ABAT Battery Monitoring System in your data center project!
Nov 17, 2025
Acrel ABAT100 series battery online monitoring system can provide battery operation information such as voltage,
internal resistance and internal temperature,including SOC and SOH,and can provide early warning and battery
equalization for failed batteries to guarantee battery pack back up time and extend battery pack life.
Product Description
|
Model
|
FunctionDescription
|
|
ABAT100-HS
|
DC24V input,one to manage a group of batteries,up to 120 batteries in a group
|
|
ABAT100-S-02
|
Monitor one 2V battery, monitor battery voltage,internal resistance and negative
terminal temperature. |
|
ABAT100-S-06
|
Monitor one 6V battery,monitor battery voltage,internal resistance and negative
termina ltemperature. |
|
ABAT100-S-12
|
Monitor one 12V battery,monitor battery voltage,internal resistance and negative
terminal temperature. |
|
ABAT100-C
|
Monitor one charge/discharge current with an ambient temperature with a maximum
current range of 1000A. |
Network
Features
•Full resistance, battery temperature and voltage monitoring for comprehensive battery state of health analysis •String current
and ambient temperature monitoring (requires TC module) •Automatic analysis of battery monitoring data to, identify the batteries
that need replacement or maintenance (requires CM module) •All operating parameters can be set via the serial bus •Panel lights
indicate when alarm is raised, which can also be read via the serial bus •Store historical data, including up to 24 battery
voltage readings; 720 string voltage readings; 12 internal resistance readings; 15 temperature readings; 100 alarms and 50 events
•PC software is available for management of multiple strings, real-time querying and historical data
and ambient temperature monitoring (requires TC module) •Automatic analysis of battery monitoring data to, identify the batteries
that need replacement or maintenance (requires CM module) •All operating parameters can be set via the serial bus •Panel lights
indicate when alarm is raised, which can also be read via the serial bus •Store historical data, including up to 24 battery
voltage readings; 720 string voltage readings; 12 internal resistance readings; 15 temperature readings; 100 alarms and 50 events
•PC software is available for management of multiple strings, real-time querying and historical data
Customized service
If you have any special requirements, for example another current input and analog output or special power supply and size ,please feel free to contact us!
