Product Picture

Name&Model

Technical Description

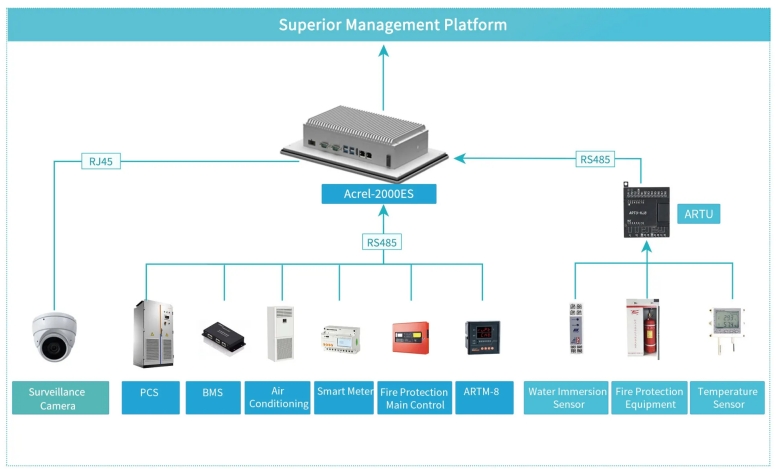

Acrel-2000ES Software and Industrial Tablet PC

PC&Software

Data collection and monitoring of internal equipment,consisting of communication management machine,industrial tablet PC,serial server,remote signaling module,and related communication accessories.

Data collection,upload,and forwarding to server and coordinated control devices.Strategy control:planned curves,demand control,peak shaving and valley filling,backup power,etc.

ANET Seires IoT Gateway

The ANET series IoT gateway utilizes an embedded hardware computing platform and features multiple downstream communication interfaces and multiple upstream network interfaces. It is designed to aggregate and organize communication data from all intelligent monitoring/protection devices within a target area and upload it in real-time to the master station system. This setup completes the functions of remote signaling and remote measurement for energy data collection.

ADL3000-E Series 3-phase DIN-rail Multi-function Energy Meter

The ADL3000-E is an intelligent electric meter specifically designed for power supply systems, industrial and mining enterprises, and utility companies. It is used to calculate electricity consumption and manage electrical demand. Key features include high accuracy, compact size, and easy installation. The device integrates measurement of all electrical parameters and comprehensive power metering management, providing data for the past 12 months. It can check the content of up to 31 harmonics and total harmonic distortion. Remote communication and control are enabled through digital inputs and relay outputs, and it also features alarm outputs. The ADL3000-E is suitable for various control systems, SCADA systems, and energy management systems. All instruments comply with the relevant technical requirements of IEC62053-21 and IEC62053-22 standards for power meters.

DJSF1352 Seires

DC DIN-rail Multi-function Energy Meter

Measures voltage,current,power,and bidirectional energy in DC systems;Optional dual channel DC metering; Equipped with infrared communication interface and RS-485 communication interface,supporting both Modbus RTU protocol;Can be equipped withrelay alarm output and switch input functions.

ARTM-8 Series

Temperature Monitor

Suitable for multi-channel temperature measurement and control,supports up to 8-channel Pt100 temperature measurement,with optional channel shielding;each channel temperature measurement corresponds to 2-stage alarm,relay output canset alarm direction and value.

ARTU Series

Remote I/O Modules

[1] Feedback the on/off status of each device via I/O,and send the related data to the upstream gateway and system;
[2] Read fire protection I/O signals and forward them to the upper layer (shutdown,event reporting,etc.)
[3] Collect water immersion sensor information and forward it to the upper layer (water immersion signal event reporting)
[4] Read access control sensor information and forward it to the upper layer (access control event reporting)

Project Study

Project Case 1: Micro-grid [Solar PV&ESS&EV Charging&Grids] Energy Management&Control Project in a Tobacco Company
This project involves the implementation of a solar, storage, and charging system for a tobacco company. The aim is to fully utilize solar energy to achieve green power usage, ensuring the safe operation of photovoltaic (PV), storage, and charging systems, while reducing electricity costs.

Project Case 2: Solar PV, Energy Storage and EV Charger Management Project for a Tobacco Company
The solar and storage project at a monastery in Myanmar aims to fully utilize solar energy resources to achieve green electricity usage while ensuring the safe and stable operation of the photovoltaic (PV), storage, and grid systems. This project not only helps reduce electricity costs but also improves energy utilization efficiency.
